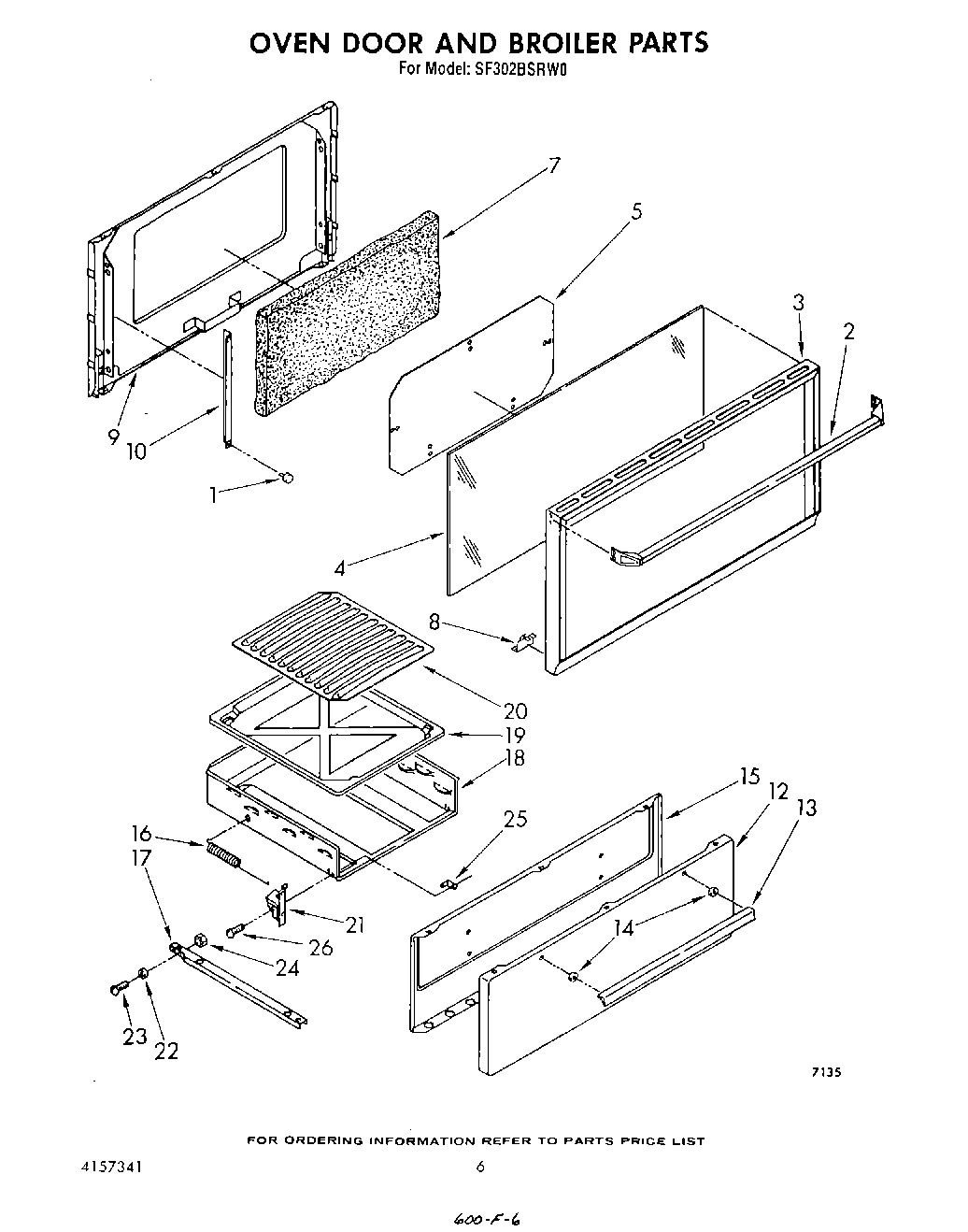

SF302BSRW0 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Screw, 8-18 X 3/8 (4)
2	Handle, Door
3	Frame, Door
4	Glass
5	Baffle, Door
7	Insulation
8	Support, Glass (Right Hand)
8	Support, Glass
8	SCREW
8	Speed Clip (4)
9	Liner, door
10	Support, Glass (2)
12	Panel, Broiler (Almond)
12	Panel, Broiler (Platinum)
12	Panel, Broiler (Toast)
12	Panel, Broiler (White)
13	Washer (2)
13	Screw, 10-12 X 5/8 (2)
13	Handle
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (R.H.)
21	Hinge, Door (L.H.)
21	WP308685 Whirlpool Microwave Screw
22	Roller (2)
23	Pin, Roller (2)
24	W10080180 Whirlpool Nut
25	Plate (2)
26	Screw (2)
