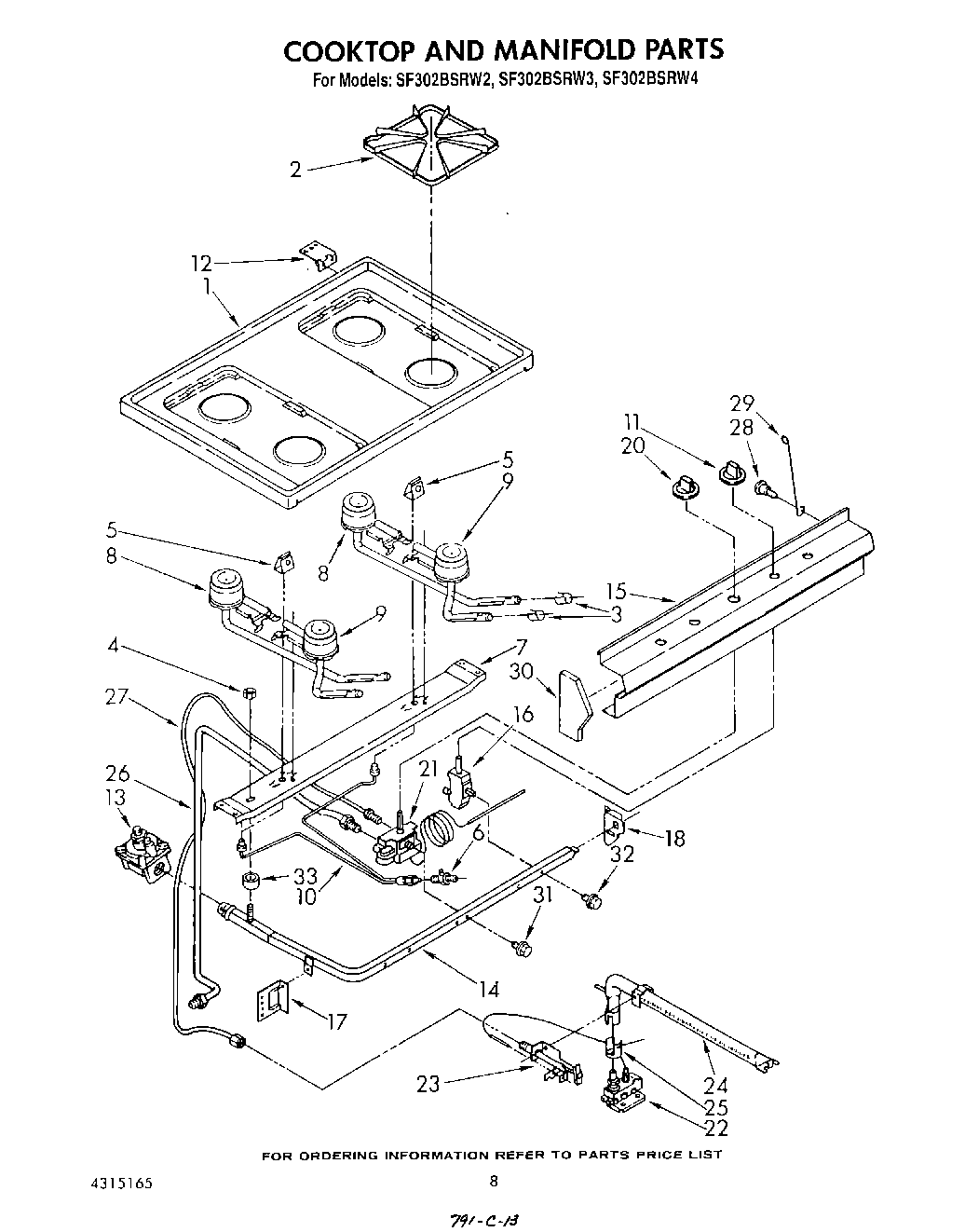

SF302BSRW4 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Cooking
WPL LIT786735
WPL LIT786767
1Cooktop (White)
1Cooktop (Almond)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12SCREW
12Hinge, Maintop (2)
12Speed Clip (4)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4) (Includes Ill. No. 32)
17Support, Manifold (L.H.)
18WP308685 Whirlpool Microwave Screw
18Support, Manifold (R.H.)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat (Includes Ill. No. 31)
22Valve, Safety
22WP3387230 Whirlpool Screw
23Screw, 10-24 X 1/4 (1)
23Pilot
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30Endcap (R.H.)
30Endcap (L.H.)
31Bolt, Thermostat Mounting (2)
32Bolt, Valve Mounting
33WPW10208653 Whirlpool Insulation
33FOIL, ALUMINUM OVEN (18“ X 25 )
33Spacer, Manifold
