| Guide, Use & Care |
| Installation, Instructions |
| List, Repair Parts |

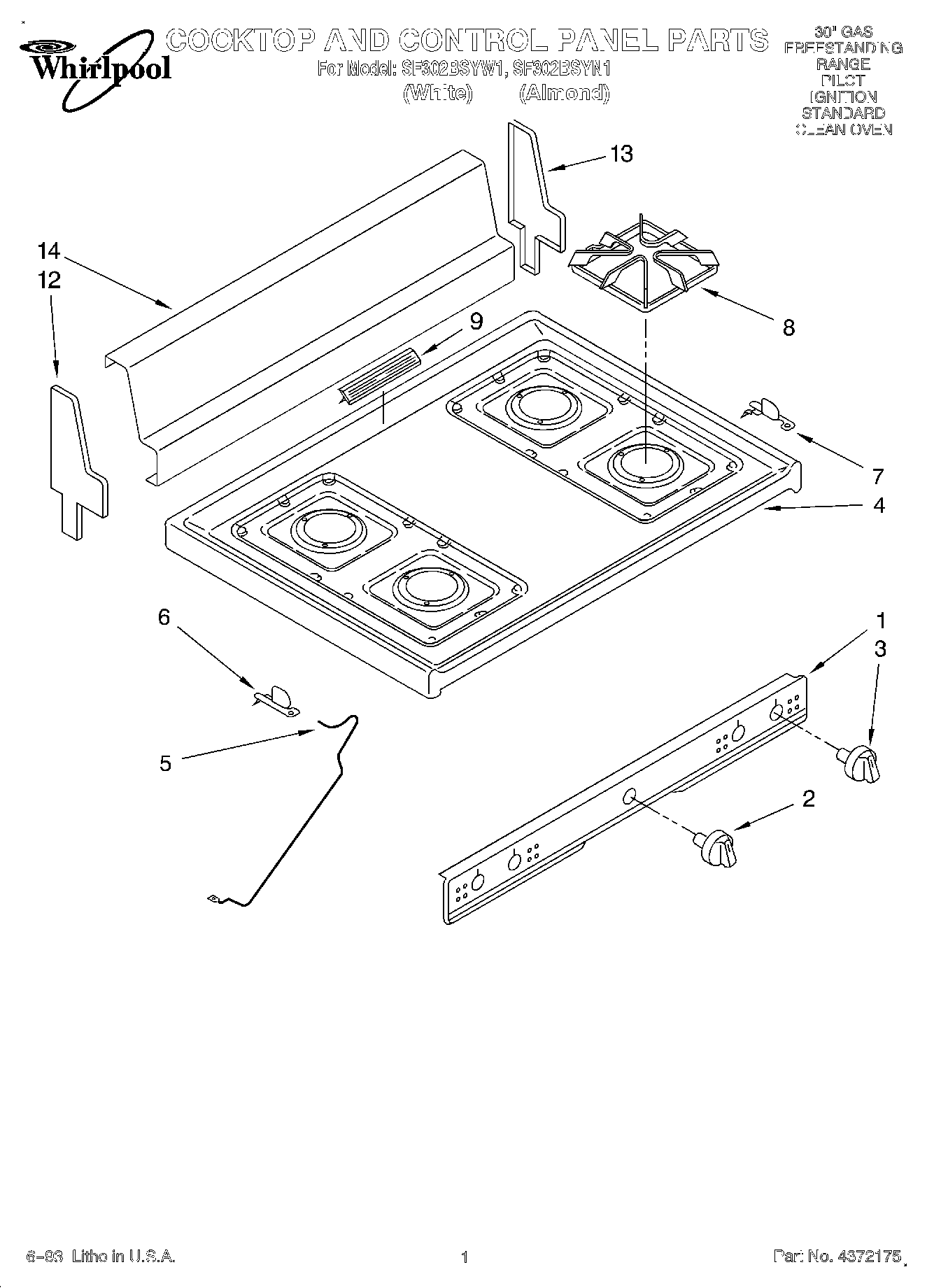

| 1 | Panel, Control |
| 2 | Knob, Thermostat |
| 3 | Knob, Burner (4) |
| 4 | Top, Main (White) |
| 4 | Top, Main (Almond) |
| 5 | Rod, Support Top |
| 6 | Bracket, Hinge LH |
| 7 | Bracket, Hinge RH |
| 8 | Grate (4) |
| 9 | Cover, Vent |
| 12 | Endcap LH |
| 13 | Endcap RH |
| 14 | Panel, Backguard |
