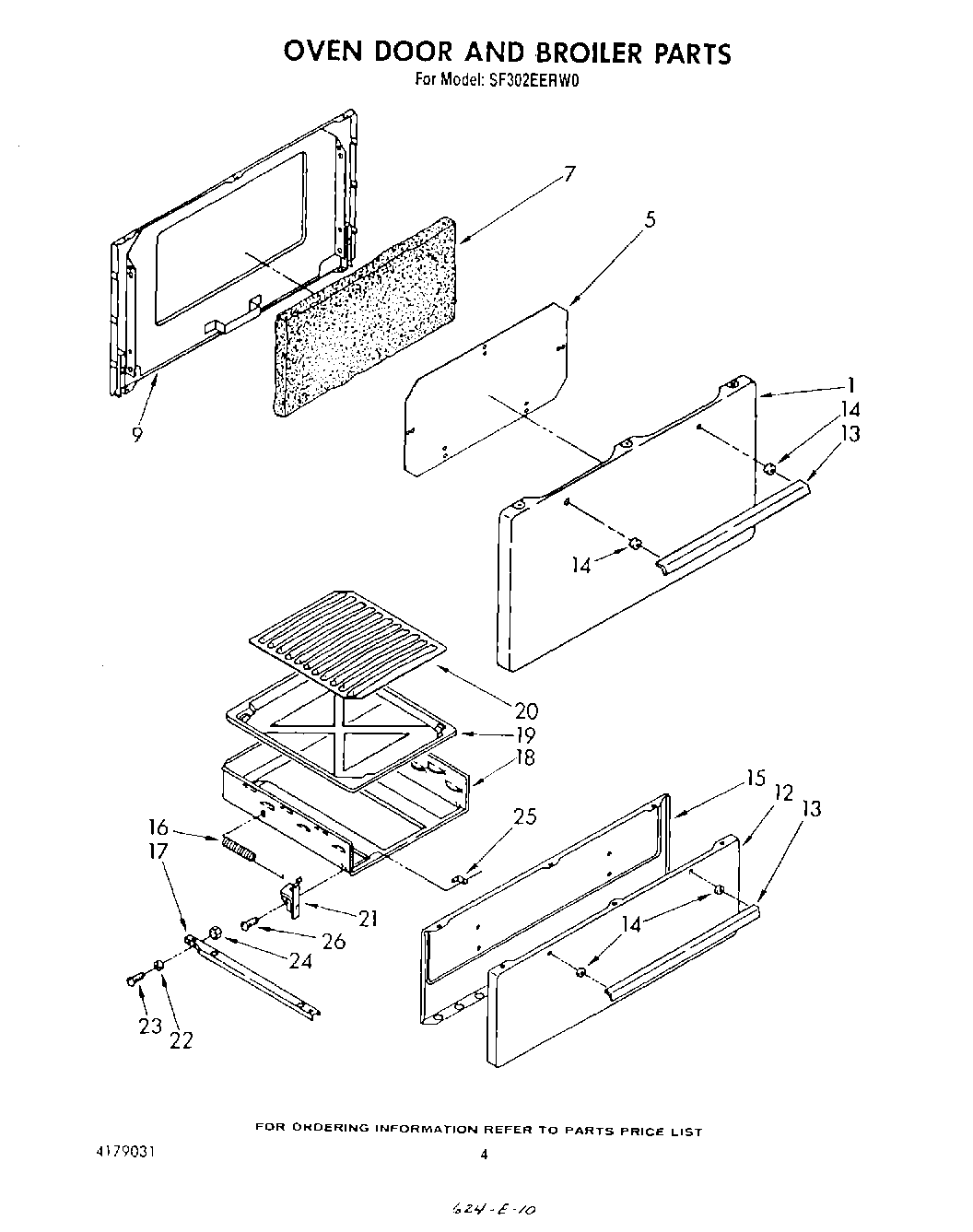

SF302EERW0 04 – OVEN DOOR AND BROILER
Written by
in
SF302EERW0 04 – OVEN DOOR AND BROILER
Products
Position
Product
1
Panel, Door (White)
1
Panel, Door (Almond)
5
SCREW
5
Baffle, Door
7
Insulation
9
Liner, door
12
Panel, Broiler (White)
12
Panel, Broiler (Almond)
13
Screw, 10-12 X 5/8 (2)
13
Washer (2)
13
Handle, Door (2)
14
Spacer (4)
15
Liner, Broiler Door
16
Spring (2)
17
Track, Upper (2)
18
Carriage, Broiler
19
4396923 Whirlpool Broil Pan Set Gray Porcelain
20
Grid
21
WP308685 Whirlpool Microwave Screw
21
Hinge, Door (R.H.)
21
Hinge, Door (L.H.)
22
Roller (2)
23
Pin, Roller (2)
24
W10080180 Whirlpool Nut
25
Plate (2)
26
Screw (2)
←
