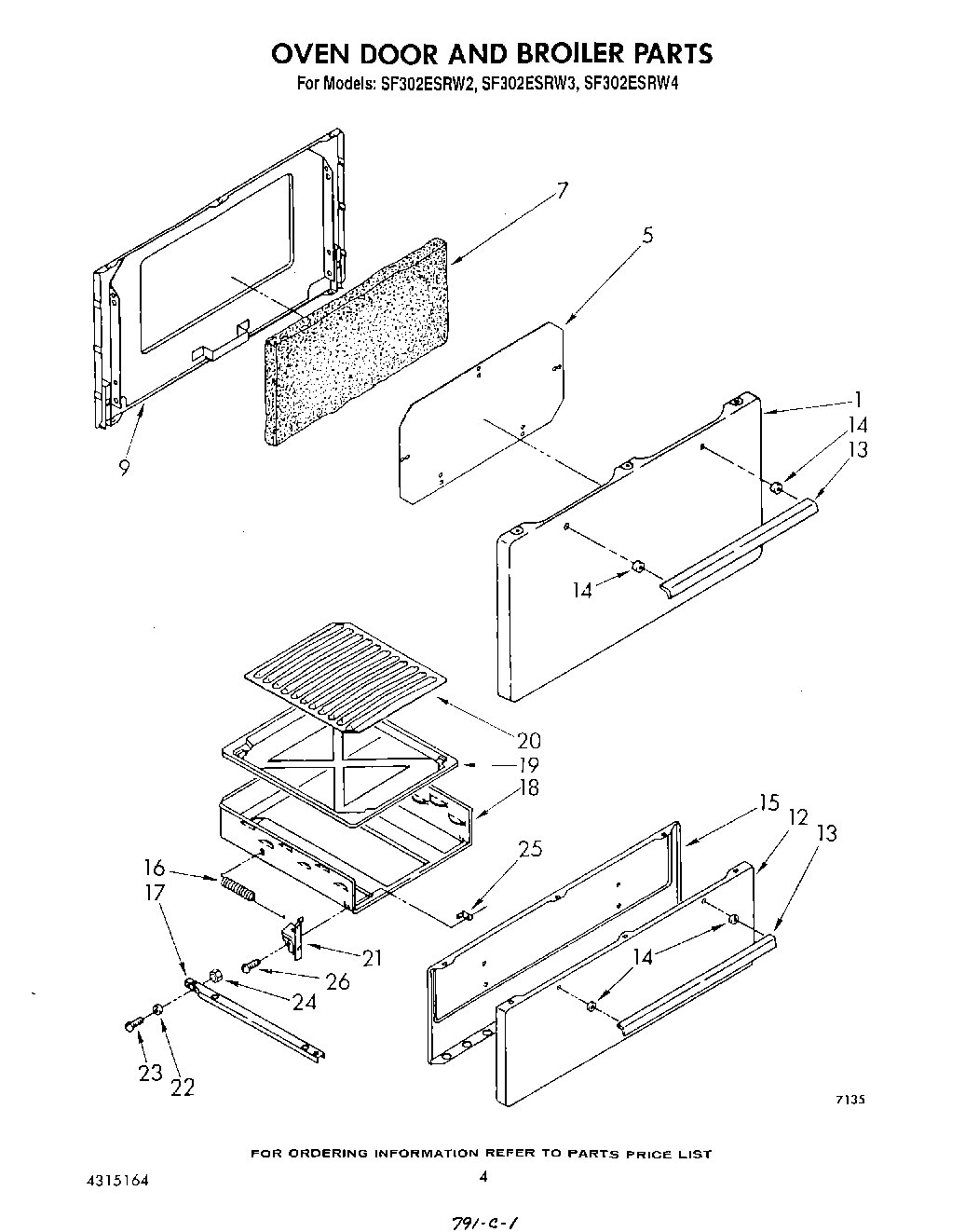

SF302ESRW4 04 – OVEN DOOR AND BROILERadmin2025-04-26T11:21:04+00:00SF302ESRW4 04 – OVEN DOOR AND BROILER
Products
| Position | Product |
|---|
| 1 | Panel, Door (White) |
| 1 | Panel, Door (Almond) |
| 5 | SCREW |
| 5 | Baffle, Door |
| 7 | Insulation |
| 9 | Liner, Door |
| 12 | Panel, Broiler (White) |
| 12 | Panel, Broiler (Almond) |
| 13 | Washer (2) |
| 13 | Screw, 10-12 X 5/8 (2) |
| 13 | Handle, Door (2) |
| 14 | Spacer (4) |
| 15 | Liner, Broiler Door |
| 16 | Spring (2) |
| 17 | Track, Upper (2) |
| 18 | Liner, Broiler |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Grid |
| 21 | WP308685 Whirlpool Microwave Screw |
| 21 | Hinge, Door (L.H.) |
| 21 | Hinge, Door (R.H.) |
| 21 | W10080180 Whirlpool Nut |
| 22 | Roller (2) |
| 23 | Pin, Roller (2) |
| 25 | Plate (2) |
| 26 | Screw (2) |
