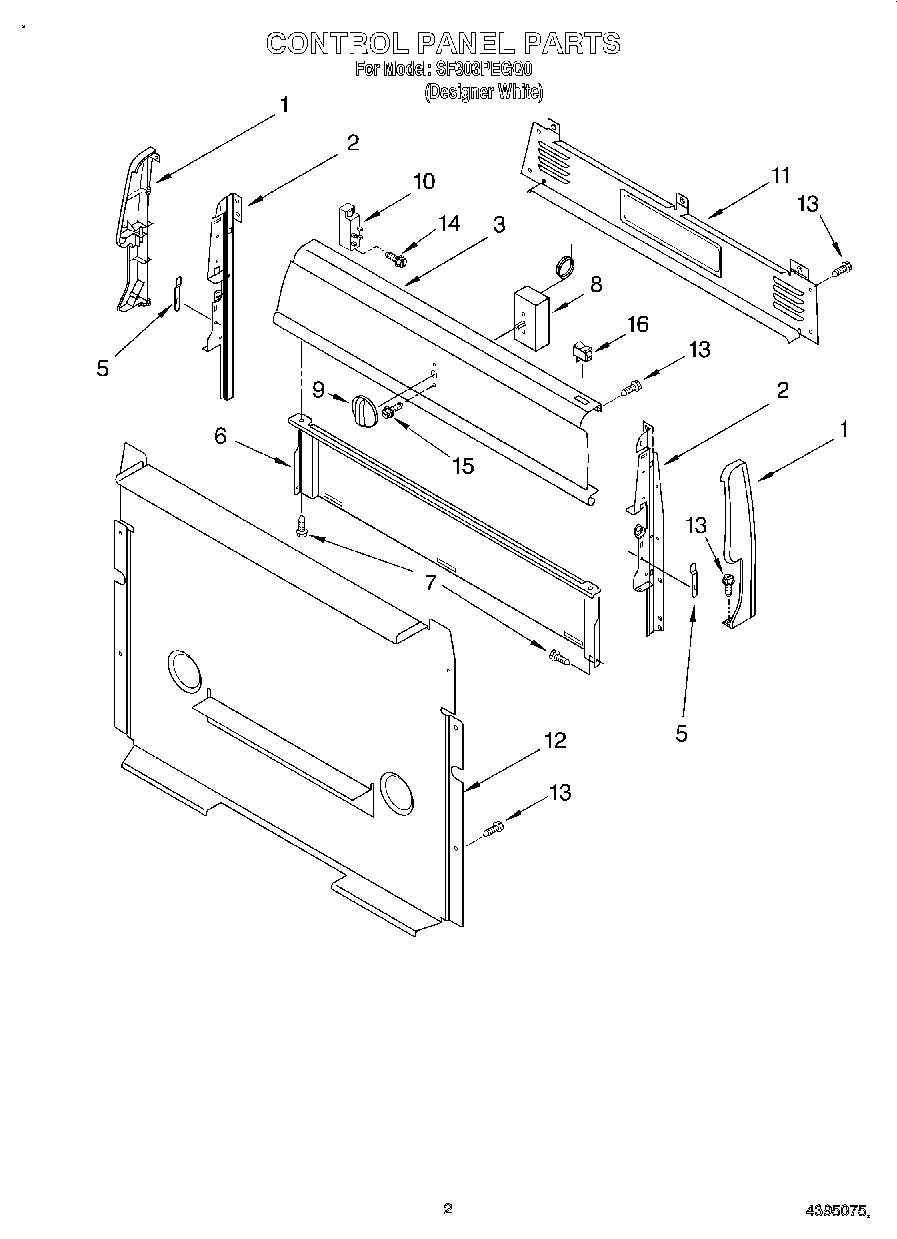

SF303PEGQ0 02 – CONTROL PANEL

SF303PEGQ0 02 – CONTROL PANEL

Written by

in

SF303PEGQ0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard
5	3196200 Whirlpool Clip
6	Shield, Heat
7	Screw
8	Thermostat
9	Knob, Thermostat
10	Module Spark Reignition
11	Cover, Upper
12	Cover, Lower
13	SCREW
14	WPY706189 Whirlpool Stove Screw
15	WP3400882 Whirlpool Screw
16	3149360 Whirlpool Light Switch
