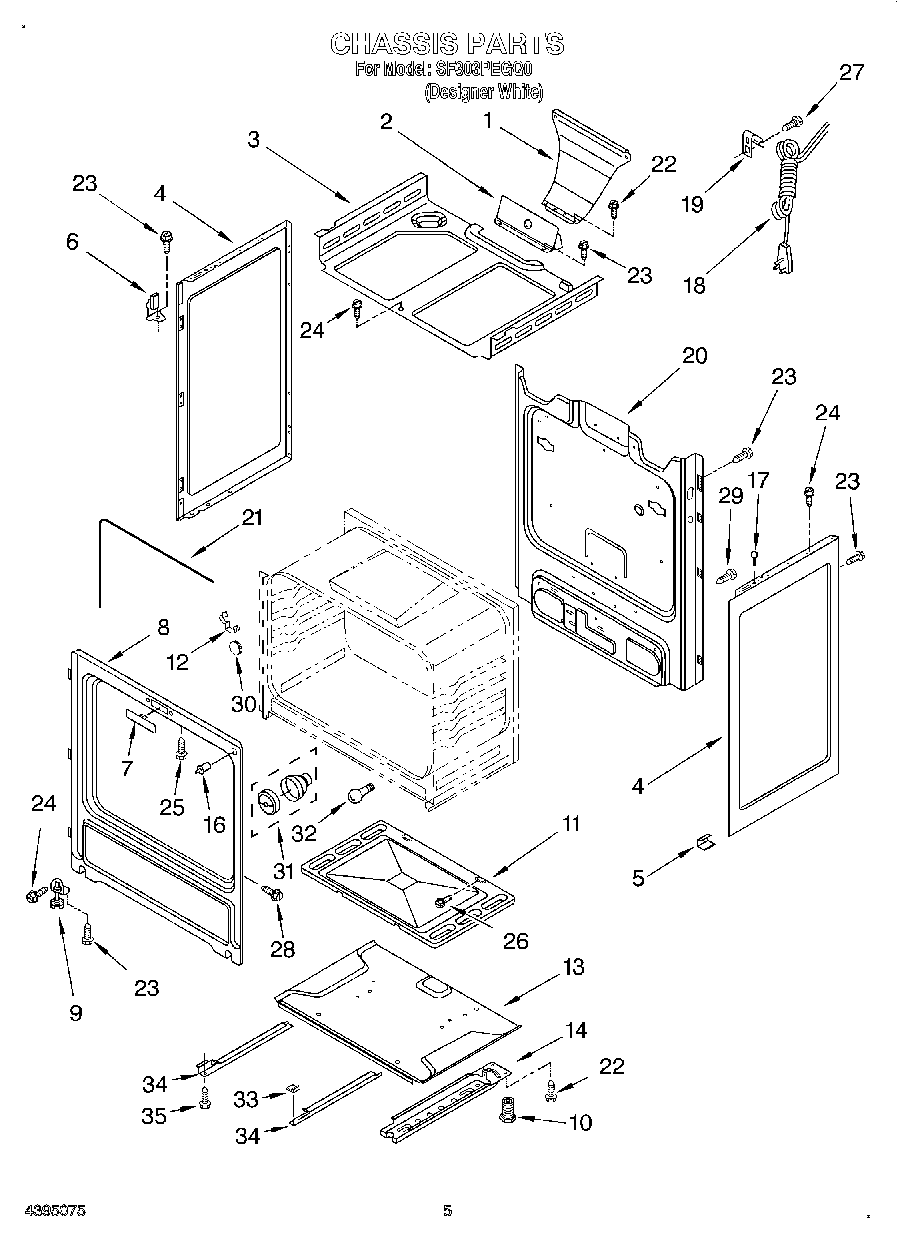

SF303PEGQ0 04 – CHASSIS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	Burner Box
4	WPW10575396 Whirlpool Side Panel
5	Clip, Panel (6)
6	Brkt, Manifold Mtg (Left Hand)
6	Brkt, Manifold Mtg (Right Hand)
7	Plug, Frame
8	Frame, Front
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	98005642 Whirlpool Clip
13	Baffle, Base
14	WPW10306546 Whirlpool Base Rail
16	Switch, Door
17	238614 Whirlpool Bumper Hinge
18	WP9757891 Whirlpool Power Cord
19	549193 Whirlpool Refrigerator Power Clamp
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	WP3196557 Whirlpool Screw
24	Screw
25	SCREW
26	Screw
27	W11244557 Whirlpool Screw
28	WP7101P246-60 Whirlpool Screw
29	WP3196183 Whirlpool Screw
30	Button, Plug (25/32“ (2))
31	W11594027 Whirlpool Range Oven Light Socket
32	RANGE ONLY 40W 120V APPL BULB
33	Guide, Front (2)
34	Plate, Guide (Right Hand)
34	Plate, Guide (Left Hand)
35	WPW10208653 Whirlpool Insulation
35	WP3196175 Whirlpool Screw
35	TIE,WIRE
35	W11688737 Whirlpool Insulation
