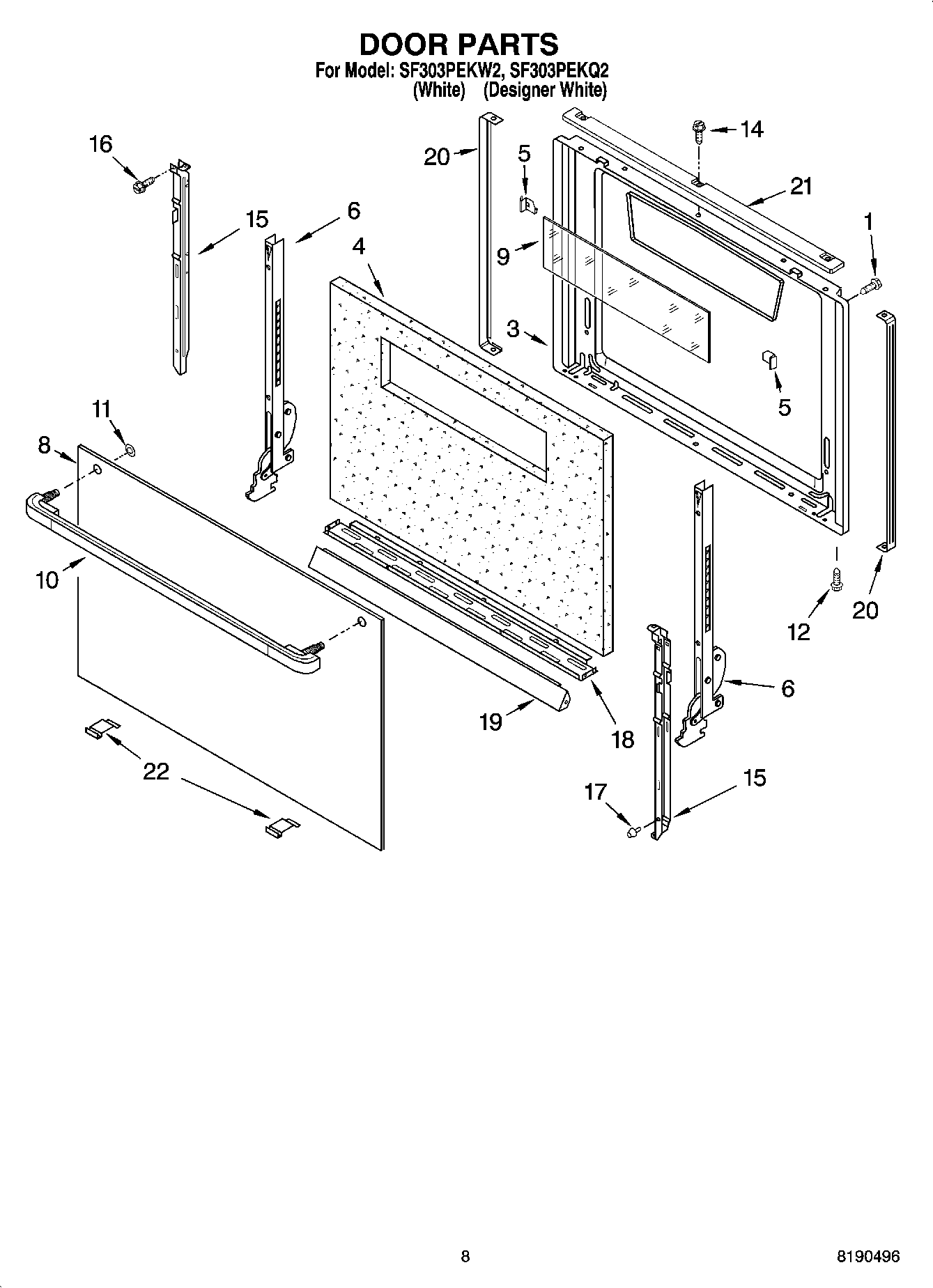

SF303PEKQ2 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF303PEKQ2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF303PEKQ2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI129457A
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	1
	8212471 Whirlpool Oven Paint
	Grease
	CLIP, WIRE
	WPL ARI129458A
	98017831 Whirlpool Oven Anchor Tip
	Harness, Switch
	WPL 98005915
	WPL 6610371
	WPL ARI129452A
	WPL ARI129453A
	WPL ARI129454A
	WPL ARI129455A
	WPL ARI129456A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	72017 Whirlpool Appliance Touch-Up Paint White
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	549193 Whirlpool Refrigerator Power Clamp
	350956 Whirlpool Spray Assembly
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	799344 Whirlpool Refrigerator Paint
1	WP98004218 Whirlpool Screw
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (2)
8	Panel, Door (Black)
8	Panel, Door (White)
9	Glass, Inner
10	WP98005318 Whirlpool Door Handle
10	WP98005317 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
14	3196166 Whirlpool Screw
14	WP3400832 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
17	98004227 Whirlpool Oven Bumper
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
20	WP98006793 Whirlpool Door Trim Assembly
20	98006794 Whirlpool Oven Door Trim
21	98006884 Whirlpool Oven Door Trim
21	Top Trim, Door (White)
22	WP98010187 Whirlpool Range Door Trim
22	WP98010185 Whirlpool Door Trim
