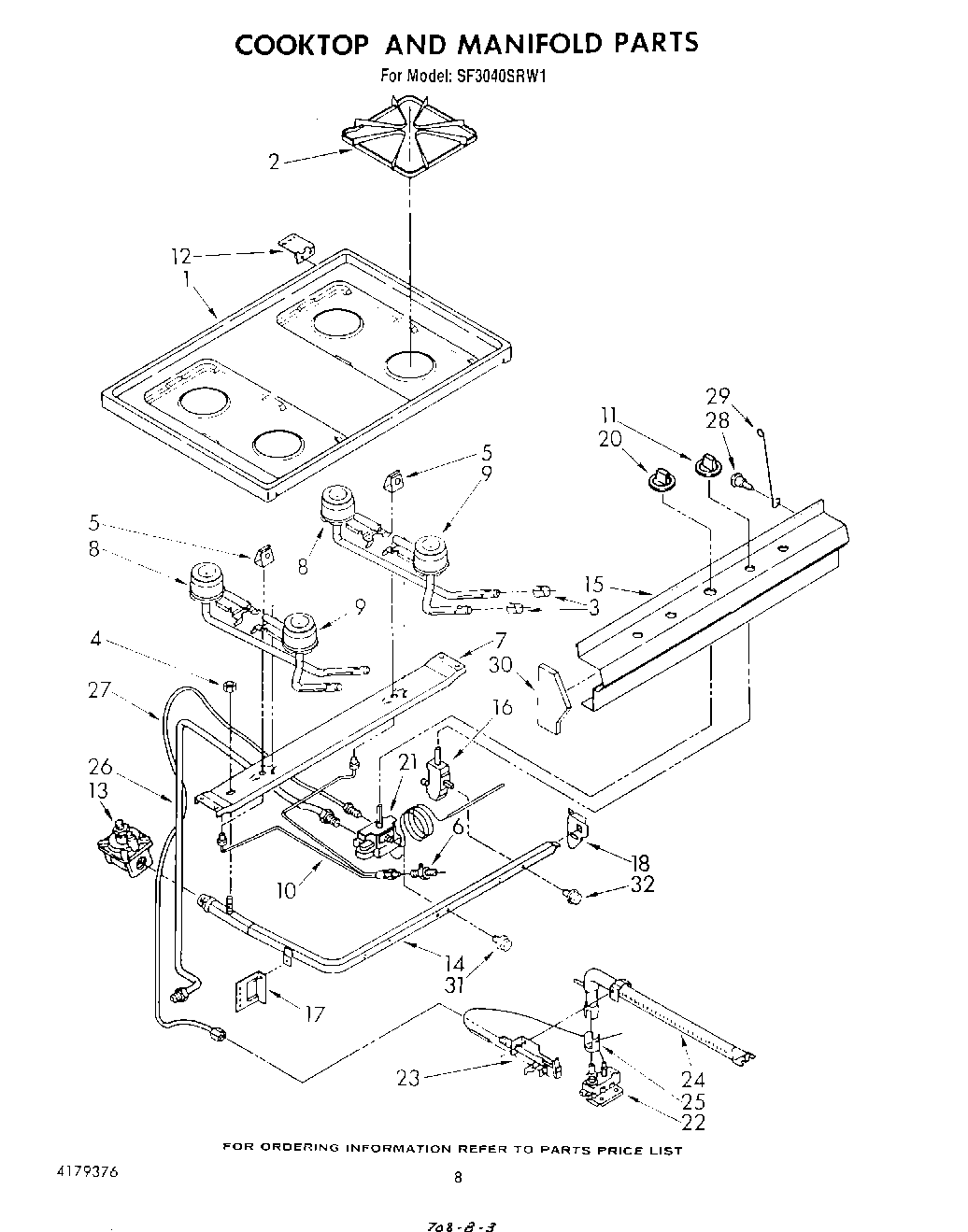

SF3040SRW1 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT4179376
	Sheet, Conversio
	WPL LIT786767
	WPL LIT786735
	Guide, Cooking
1	Cooktop (Almond)
1	Cooktop (White)
1	Cooktop (Harvest Gold)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	SCREW
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 31)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (R.H.)
30	Endcap (L.H.)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
32	WPW10208653 Whirlpool Insulation
32	FOIL, ALUMINUM OVEN (18“ X 25 )
