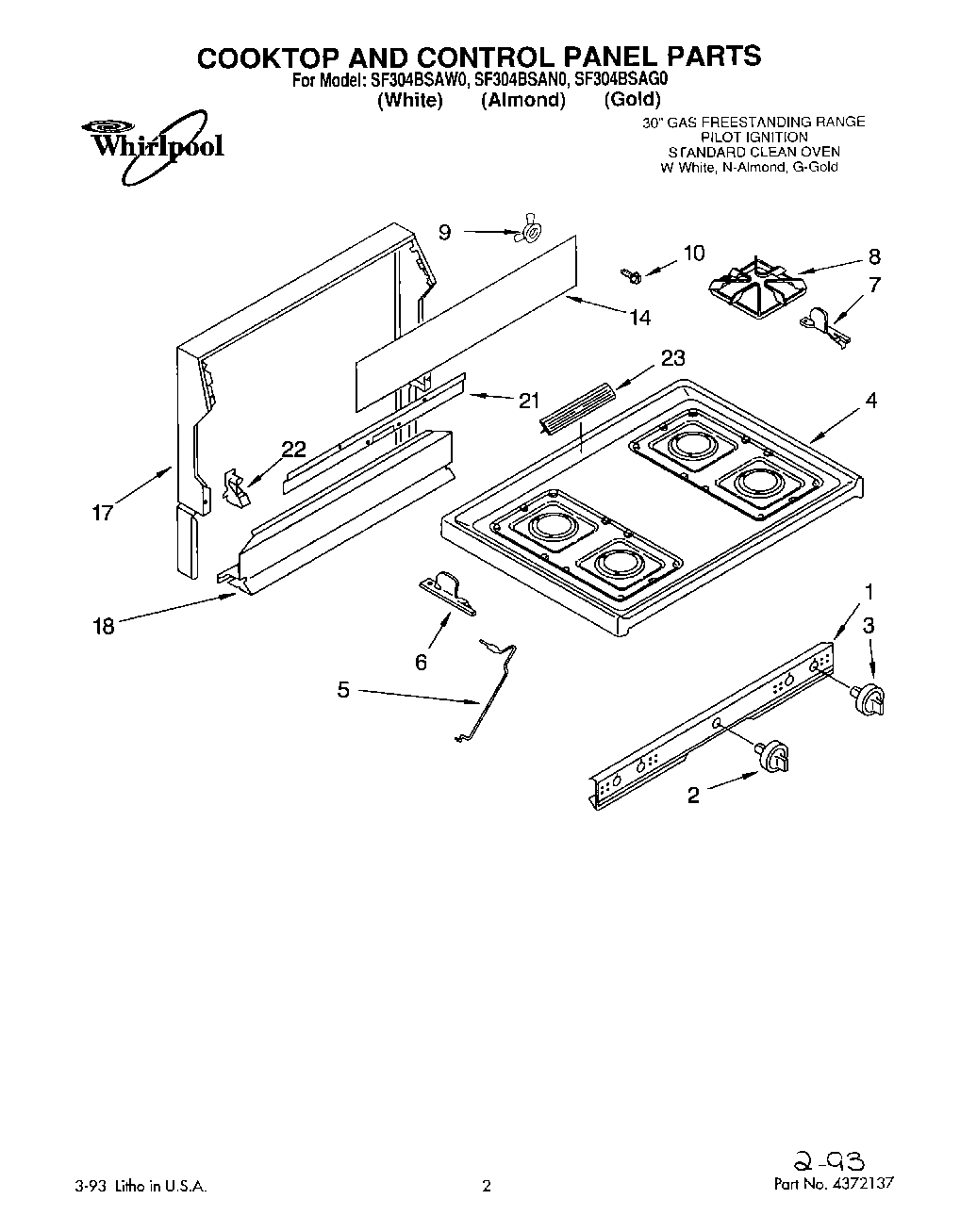

SF304BSAN0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T11:22:30+00:00SF304BSAN0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Guide, Use & Care |
| List, Repair Parts |
| Installation Instructions |
| 1 | Panel, Control |
| 2 | Knob, Thermostat |
| 3 | Knob, Burner (4) |
| 4 | Top, Main (Almond) |
| 4 | Top, Main (White) |
| 4 | Top, Main (Gold) |
| 5 | Rod, Support Top |
| 6 | Bracket, Hinge LH |
| 7 | Bracket, Hinge RH |
| 8 | Grate (4) |
| 9 | Wingnut (2) |
| 10 | Bolt, Backguard (2) |
| 14 | Panel, Splasher |
| 17 | Trim, Wrapper |
| 18 | Trim, Splash Panel (Almond) |
| 18 | Trim, Splash Panel (White) |
| 18 | Trim, Splash Panel (Gold) |
| 21 | Bracket, Backguard |
| 22 | Brace, Backguard |
| 23 | Cover, Vent |
