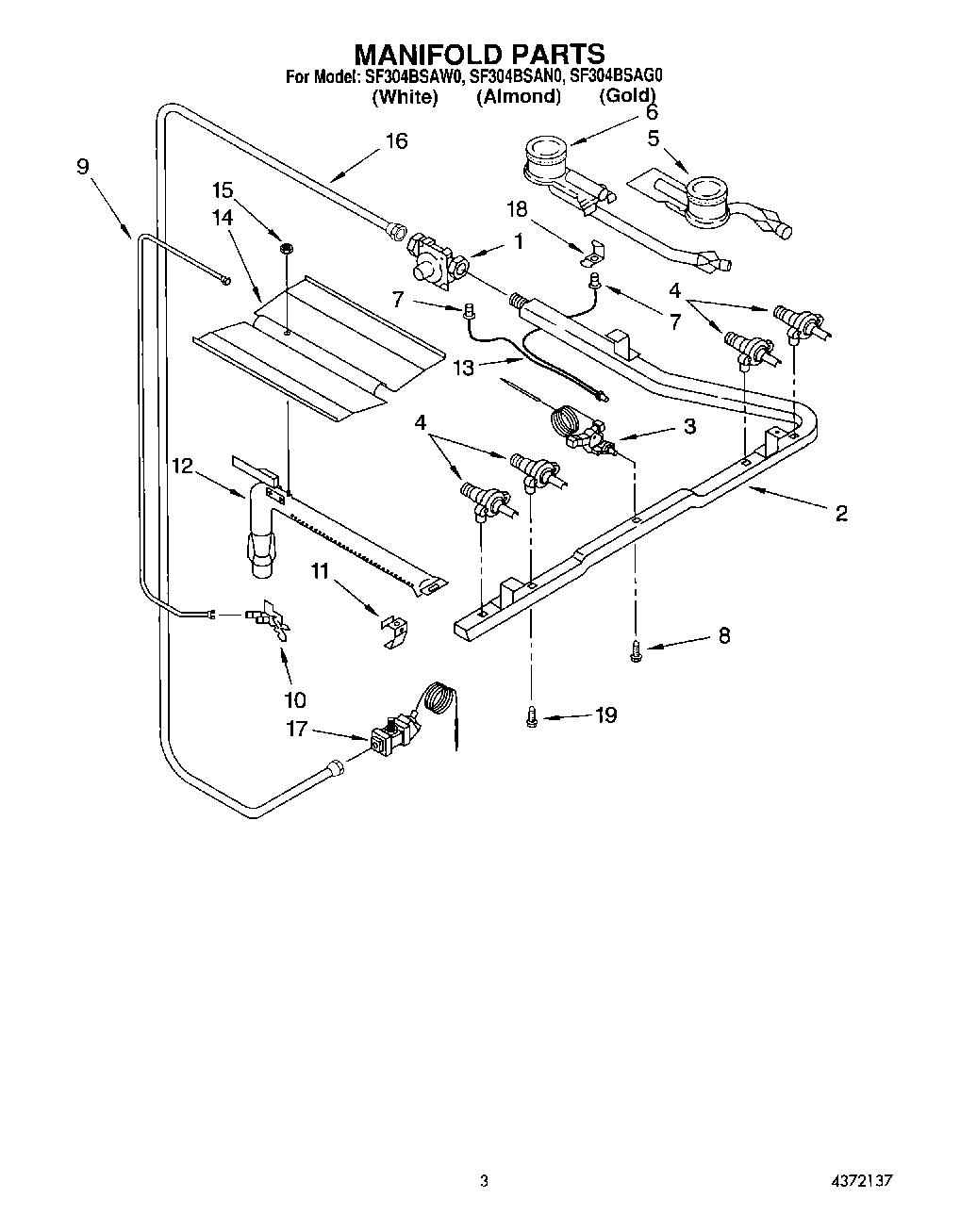

SF304BSAN0 02 – MANIFOLD

Products

PositionProduct
1Regulator, Pressure
2Pipe, Manifold
3Thermostat (Includes Illus.8)
4Valve, 2 pos (4)
5Burner, Front (2)
6Burner, Rear (2)
7Cap, Pilot (2)
8Screw, Thermostat
9Tubing, Thermostat
10Pilot, Oven
11Bracket, Burner
12Burner, Oven
13Tubing, Pilot
14Baffle, Oven Burner
15Nut, Hex (2)
16Tubing, Valve
17Valve, Safety
18Shield, Pilot
19WP3186217 Whirlpool Screw
