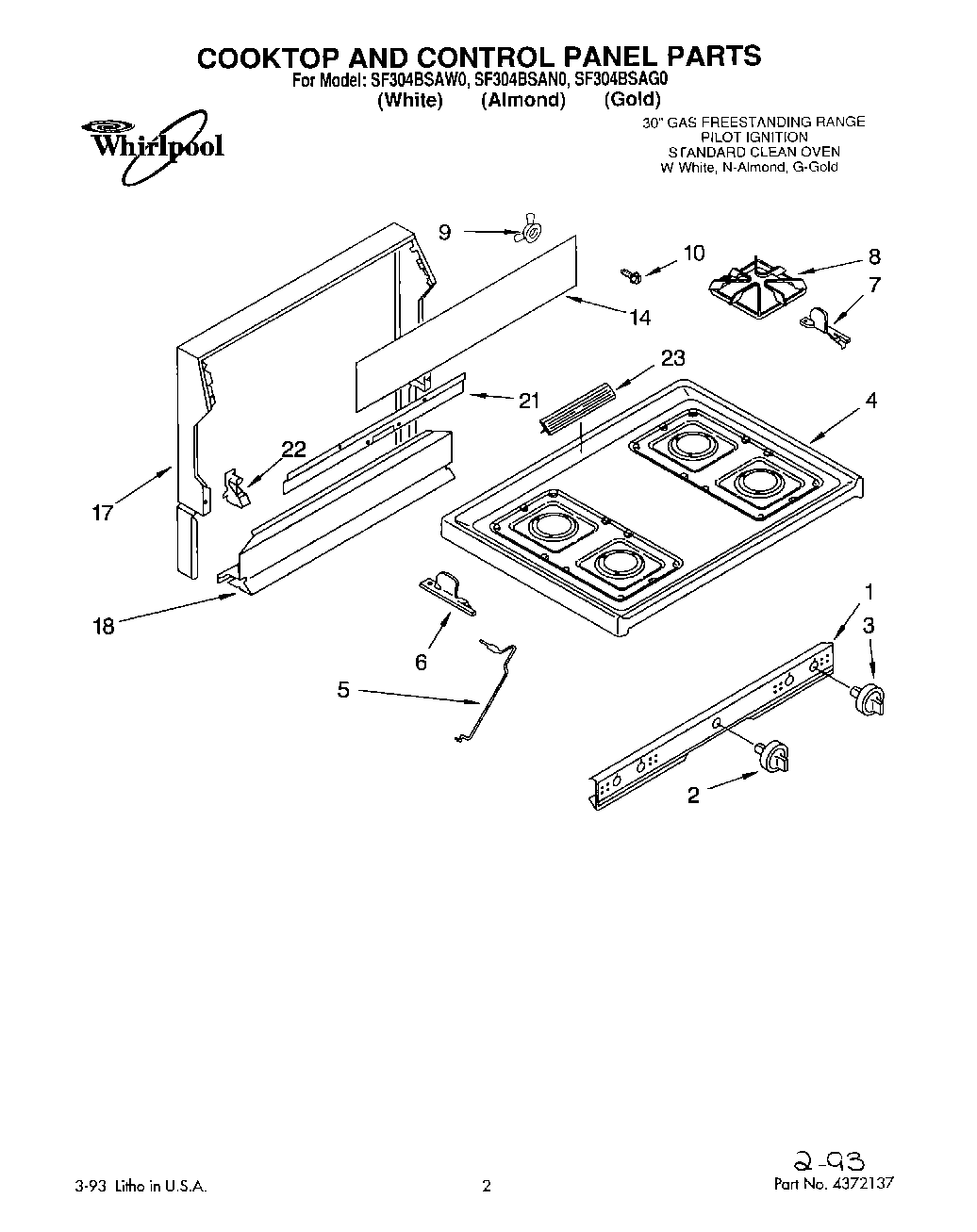

SF304BSAW0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

SF304BSAW0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Written by

in

SF304BSAW0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Guide, Use & Care
List, Repair Parts
Installation Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Almond)
4Top, Main (White)
4Top, Main (Gold)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Wingnut (2)
10Bolt, Backguard (2)
14Panel, Splasher
17Trim, Wrapper
18Trim, Splash Panel (Almond)
18Trim, Splash Panel (White)
18Trim, Splash Panel (Gold)
21Bracket, Backguard
22Brace, Backguard
23Cover, Vent
