SF304BSPW0 02 – OVEN , LITERATURE

Products

Position	Product
	List, Repair Parts
	Diagram, Wiring
	Diagram, Installation Instructions
	Guide, Use & Care
	Instructions, Installation

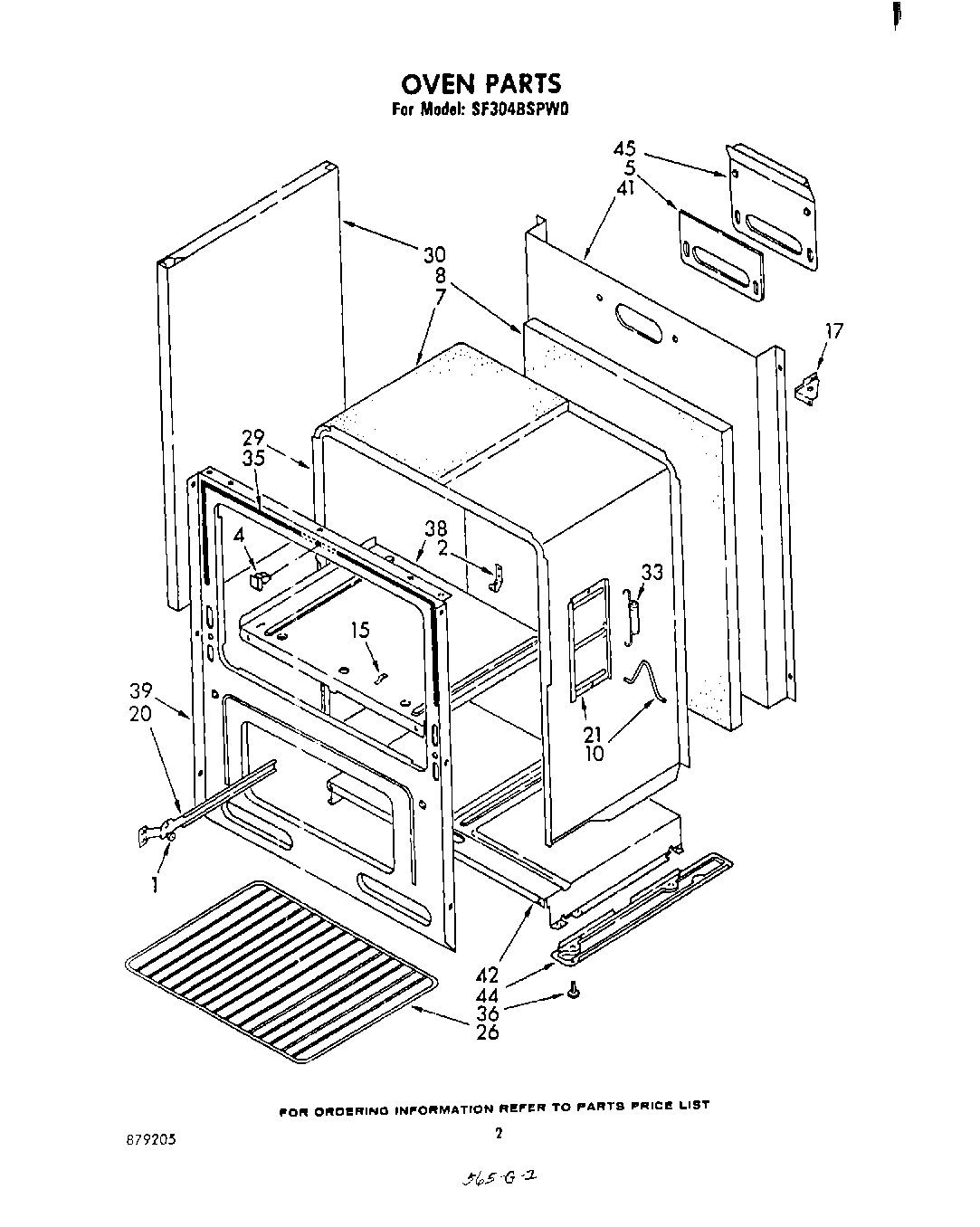

1	Bearing, Roller (4)
2	98005642 Whirlpool Clip
4	Clip, Door Seal
5	Gasket, Vent Deflector
7	WPW10208653 Whirlpool Insulation
10	Link, Oven Door Spring (2)
15	Clip, Oven Bottom Plate (2)
17	Bracket, Corner Support (Left Side)
17	Bracket, Corner Support (Right Side)
20	Track, Broiler (Right Side)
20	Track, Broiler (Left Side)
21	Cover, Hinge (2)
26	Rack, Oven (2)
29	Oven, 30“ Standard (Not Serviceable)
30	Panel, End (2) (Platinum)
30	Panel, End (2) (Toast)
30	Panel, End (2) (Almond)
30	Panel, End (2) (White)
33	Spring, Oven Door (2)
35	Seal, Oven Door (Top)
35	Seal, Oven Door (Side (2))
36	Screw, Leveling (4)
38	Plate, Oven Bottom
39	Front, Main
41	Back, Main
42	Bottom, Main
44	Runner, Base (Right Side)
44	Runner, Base (Left Side)
45	Deflector, Vent
