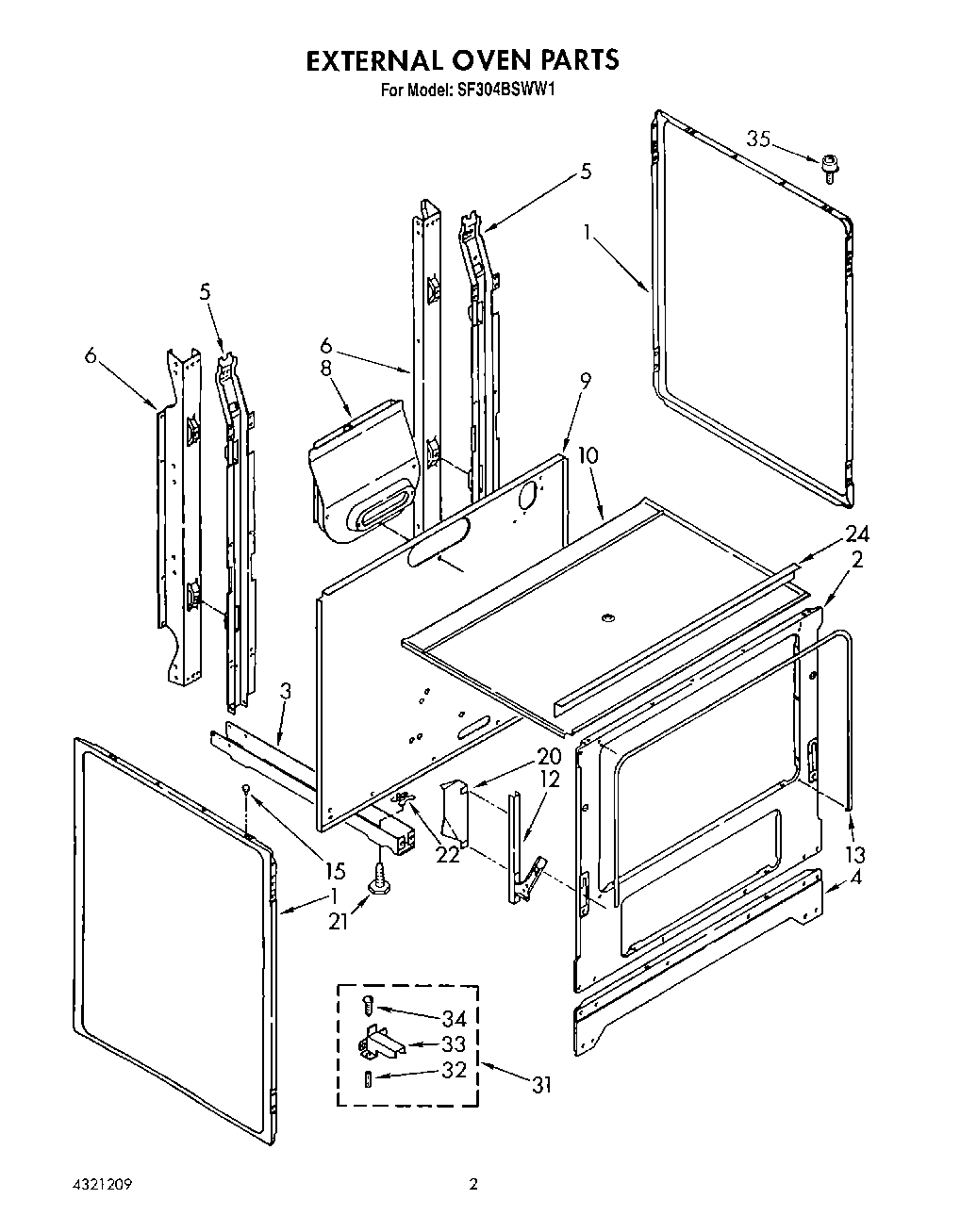

SF304BSWW1 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Ignitor (Screw, 8 X 1/2 (4))
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
8	SCREW
8	Flue, Box
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2) (Side)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
24	Extension Burner Box
31	Anti-Tip Kit
32	Anchor
33	Bracket
34	Screw
35	Stud Screw (2)
35	Locator stud (2)
