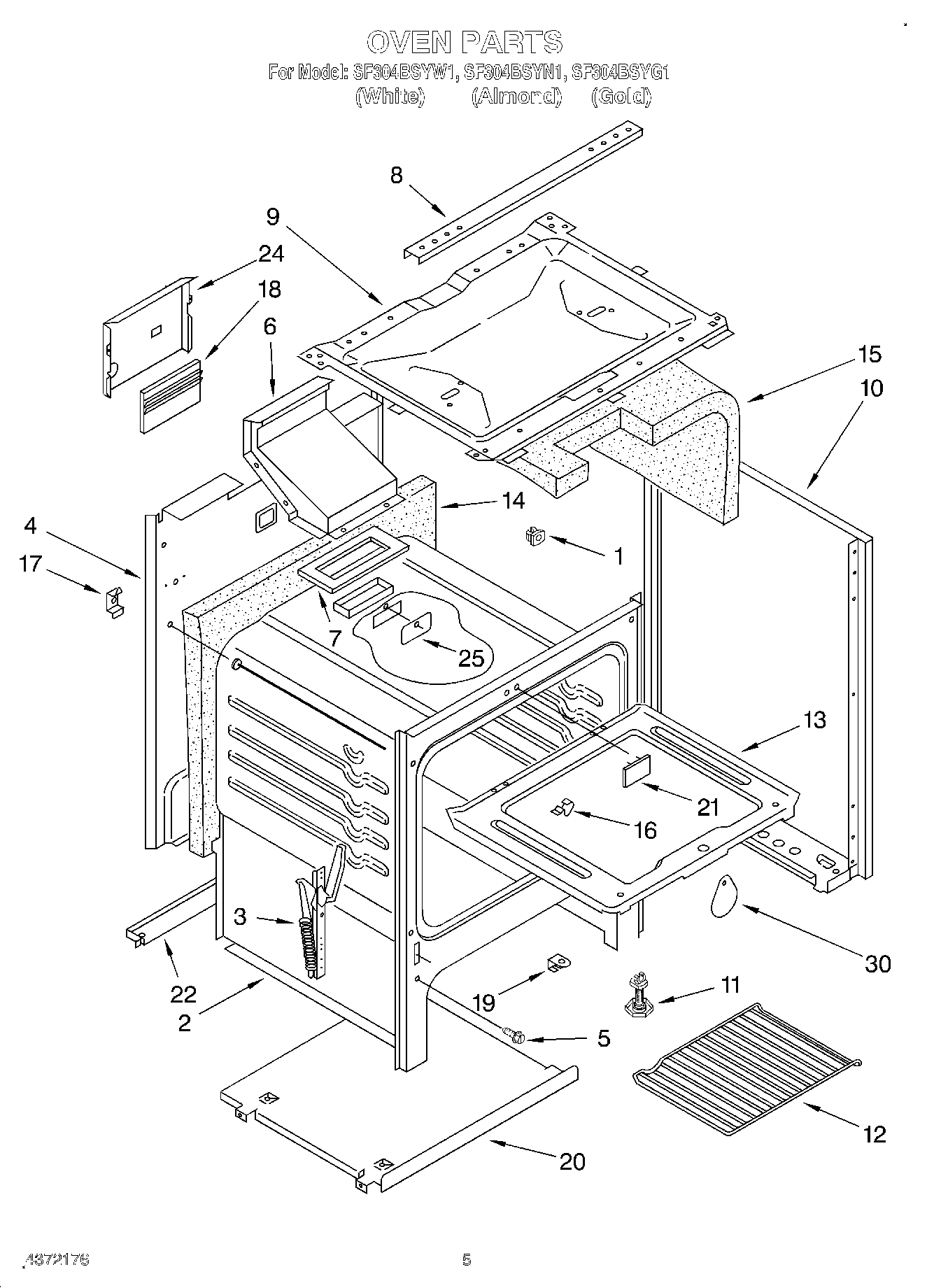

SF304BSYW1 04 – SECTION

Products

Position	Product
1	Spacer, Body (8)
2	Liner, Oven (Not a Serviceable Part)
3	Hinge, Oven Door
4	Back, Main
5	Screw, Oven Bottom
6	Flue
7	Gasket, Flue
8	Support, Burner
9	Burner, Box
10	Panel B/S (Gold LH)
10	Panel B/S (Gold RH)
10	Panel, Side (Almond RH)
10	Panel, Side (Almond LH)
10	Panel, Side (White RH)
10	Panel, Side (White LH)
11	Screw, Leveler (4)
12	Rack, Oven (2)
13	Bottom, Oven
14	Insulation, Back
15	WPW10208653 Whirlpool Insulation
16	Clip, Thermo Bulb
17	Fastener, U Type
18	Cover, Flue
19	Support, Oven Bottom
20	Base, Broiler
21	Cover, Front
22	Bracket, Anti-Tip
24	Shield, Flue
25	Plate, Cover
30	Cover, Oven Light
