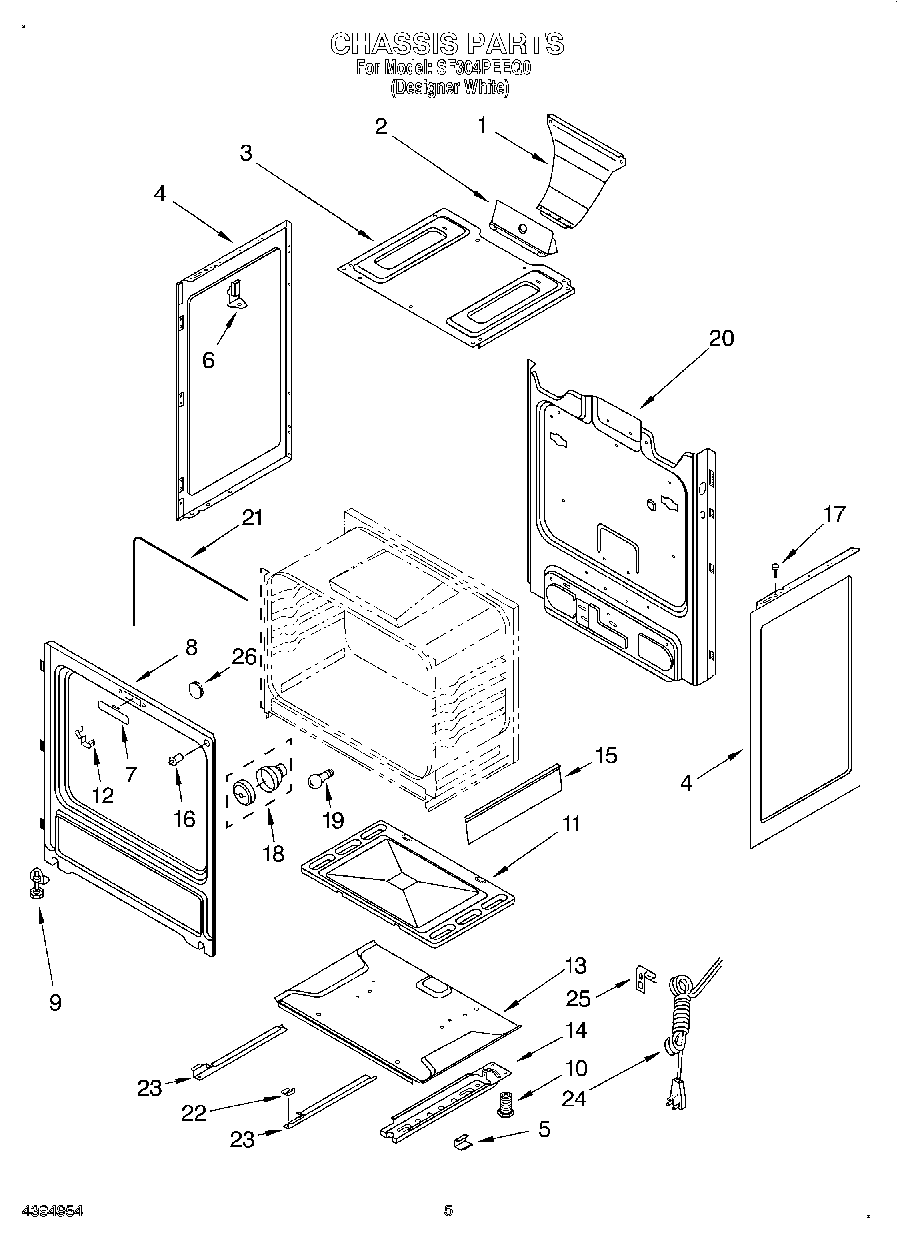

SF304PEEQ0 04 – CHASSIS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	Burner Box
4	Screw
4	Panel, Side (2) (White)
5	Clip, Panel (6)
6	Brkt, Manifold Mtg (Left Hand)
6	Brkt, Manifold Mtg (Right Hand)
7	Plug, Frame
8	Frame, Front
8	SCREW
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
11	Screw
12	98005642 Whirlpool Clip
13	Baffle, Base
14	WPW10306546 Whirlpool Base Rail
14	WP3196557 Whirlpool Screw
15	Shield, Lower
16	Switch, Door
17	238614 Whirlpool Bumper Hinge
18	W11594027 Whirlpool Range Oven Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Guide, Front (2)
23	Plate, Guide (Right Hand)
23	Plate, Guide (Left Hand)
24	WP9757891 Whirlpool Power Cord
25	W11244557 Whirlpool Screw
25	549193 Whirlpool Refrigerator Power Clamp
26	Button, Plug (25/32“ (2))
26	WPW10208653 Whirlpool Insulation
26	TIE,WIRE
26	W11688737 Whirlpool Insulation
