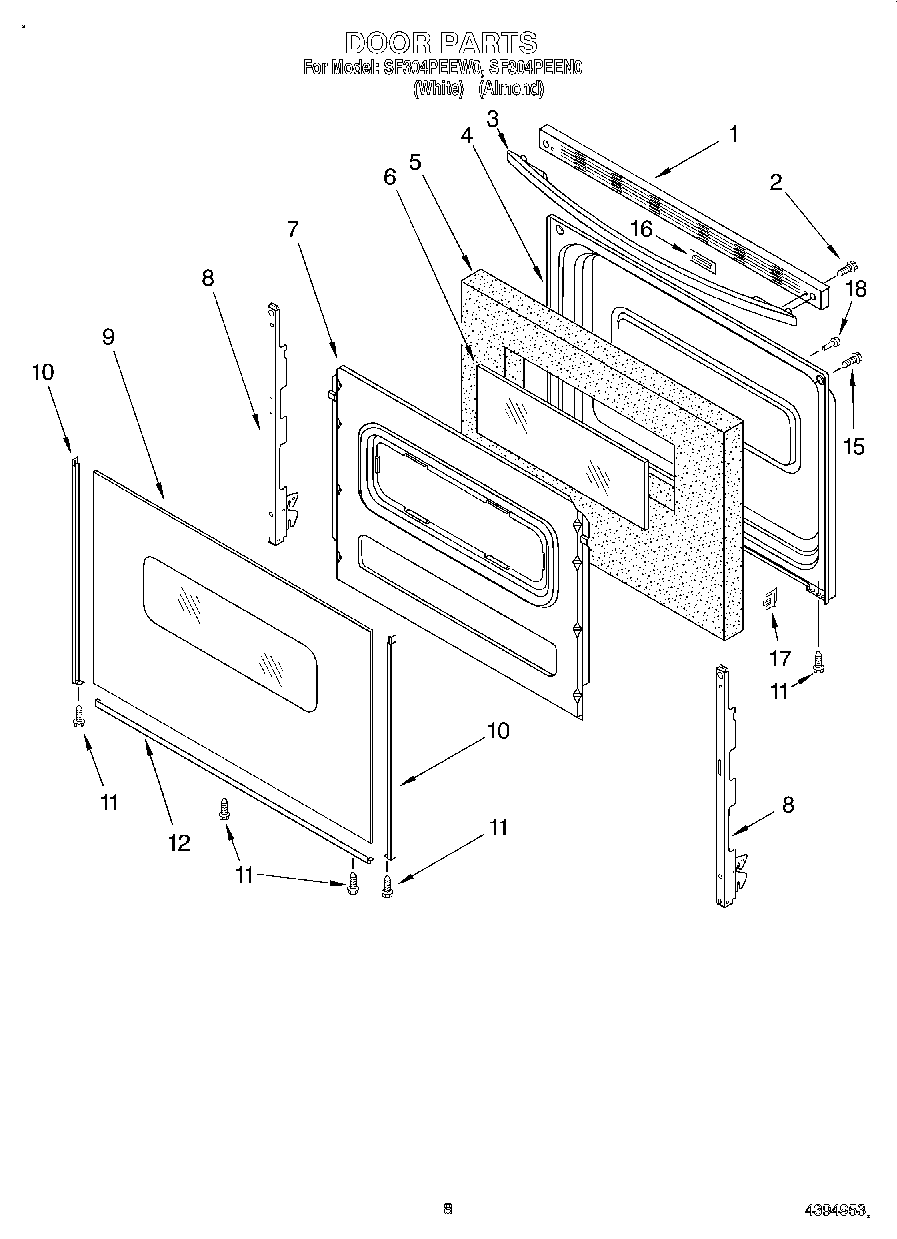

SF304PEEW0 06 – DOOR, LIT/OPTIONALadmin2025-04-26T11:21:14+00:00SF304PEEW0 06 – DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Literature (Installation, Instructions (Template)) |
| WPL 3195206 |
| WPL LIT3196321 |
| WPL LIT3196286 |
| WPL LIT3196192 |
| WPL 3196577 |
| Clip |
| Harness, Igniter (Incl. Switches) |
| 1 | Trim, Top |
| 2 | WP179051 Whirlpool Screw |
| 3 | WPW10202217 Whirlpool Door Handle |
| 4 | Liner, Door |
| 5 | Insulation, Door |
| 6 | WP9758164 Whirlpool Door Glass |
| 7 | 9761500 Whirlpool Oven Retainer |
| 8 | Hinge, Door (2) |
| 9 | WP9762477 Whirlpool Glass Door |
| 11 | W10491985 Whirlpool Screw |
| 12 | 8184858 Whirlpool Door Trim |
| 15 | WP3196164 Whirlpool Screw |
| 16 | Plug, Door |
| 17 | Clip, Glass (4) |
| 18 | Wire (14 Ga. 150 c Orange) |
| 18 | Wire (14 Ga. 150 c Yellow) |
| 18 | LP Conversion Kit (Nat to LP) |
| 18 | Wire (12 Ga. 150 c Black) |
| 18 | 18 Ga. 80~c Rating (Red) |
| 18 | Wire (14 Ga. 200 c Brown) |
| 18 | 1 |
| 18 | Leveler (Thinner) (2oz.) |
| 18 | 8212471 Whirlpool Oven Paint |
| 18 | Grease |
| 18 | 8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit |
| 18 | 72113 Whirlpool Touch-Up Paint |
| 18 | Wire (14 Ga. 150 c Green) |
| 18 | Wire (14 Ga. 150 c Brown) |
| 18 | WPL 72112 |
| 18 | Platinum (Uncut) |
| 18 | Enamal, Toast (1 Qt. Uncut) |
| 18 | Paint, Spray (13 Oz.) (Platinum) |
| 18 | Toast |
| 18 | Golden Harvest (Uncut) |
| 18 | Golden Harvest |
| 18 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 18 | Almond (Uncut) |
| 18 | WP72107 Whirlpool Touchup |
| 18 | 799344 Whirlpool Refrigerator Paint |
| 18 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 18 | 350956 Whirlpool Spray Assembly |
| 18 | 350942 Whirlpool Spray Paint |
| 18 | 511873 Whirlpool Refrigerator Paint |
| 18 | WPL 799832 |
| 18 | Wire (14 Ga. 150 c Blue) |
| 18 | 242831 Whirlpool Oven Wire |
| 18 | Paint, Spray 13 Oz. (Avocado) |
| 18 | paint, spray 13 oz. (coffee) |
| 18 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 18 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 18 | 285006 Whirlpool Spray |
| 18 | Wire, 25`` Roll (White 14 GA.) |
| 18 | Wire, 25` Roll (Red 14 Ga.) |
| 18 | Wire, 25` Roll (Black 14 Ga.) |
| 18 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 18 | WPW10208653 Whirlpool Insulation |
| 18 | 238614 Whirlpool Bumper Hinge |
| 18 | 350930 Whirlpool White Spray Paint |
