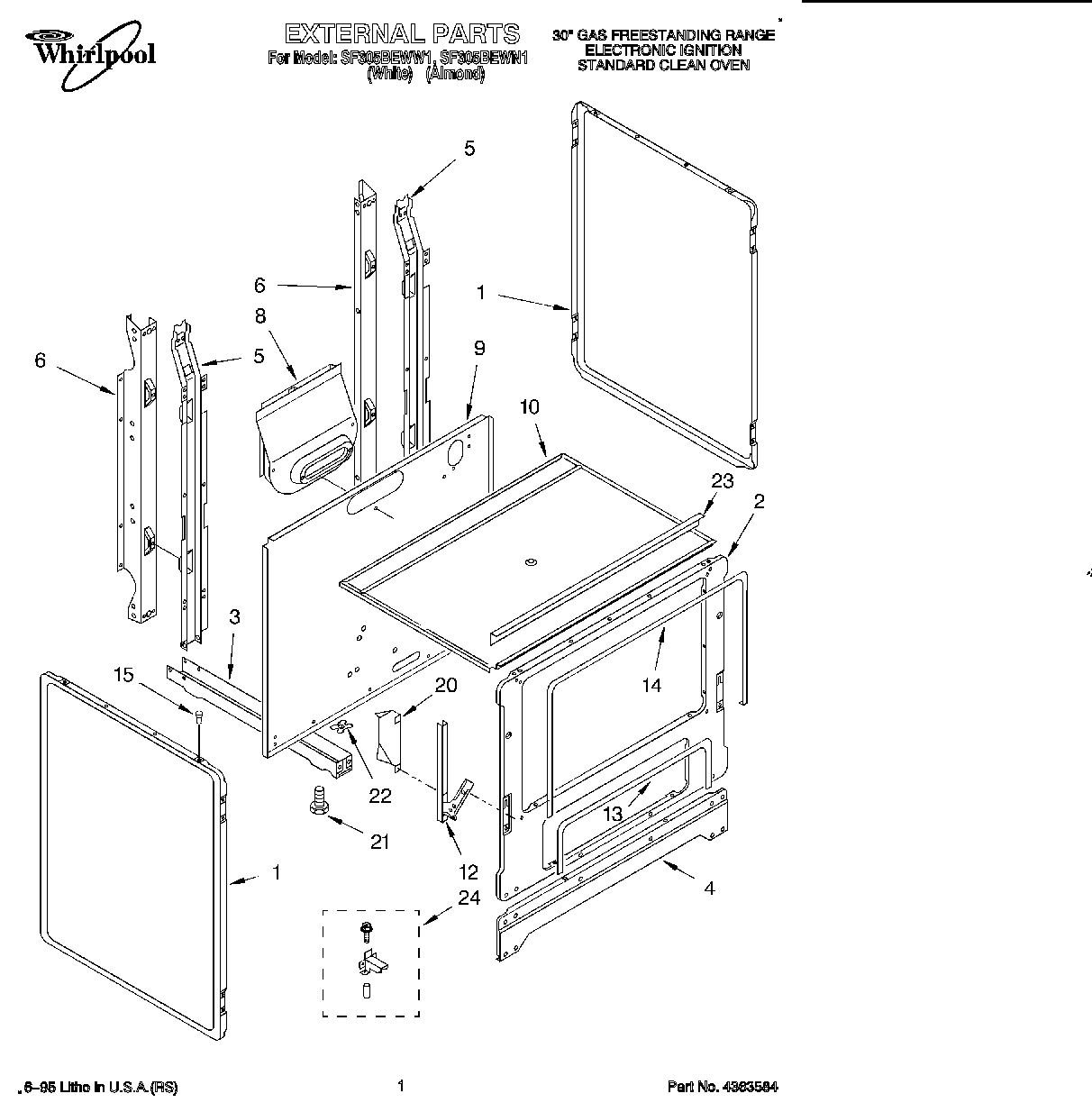

SF305BEWN1 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (White)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
5	Screw
5	Support, Main (2)
6	Support, Rear (2)
8	Box, Flue
9	Panel, Rear
10	Burner Box
12	Screw
12	Hinge, Door (2)
12	Screw
13	Seal, Door (Top)
14	Seal, Door (2)
15	Bumper, Cooktop (2)
15	Locator Stud (2)
20	Shield, Insulation
21	Leg, Leveler
22	Nut (4)
23	WP308685 Whirlpool Microwave Screw
23	Extension Burner Box
23	WP3387230 Whirlpool Screw
24	Anti-Tip Kit
