SF305BEWQ0 02 – OVEN DOOR AND BROILER

SF305BEWQ0 02 – OVEN DOOR AND BROILER

Written by

in

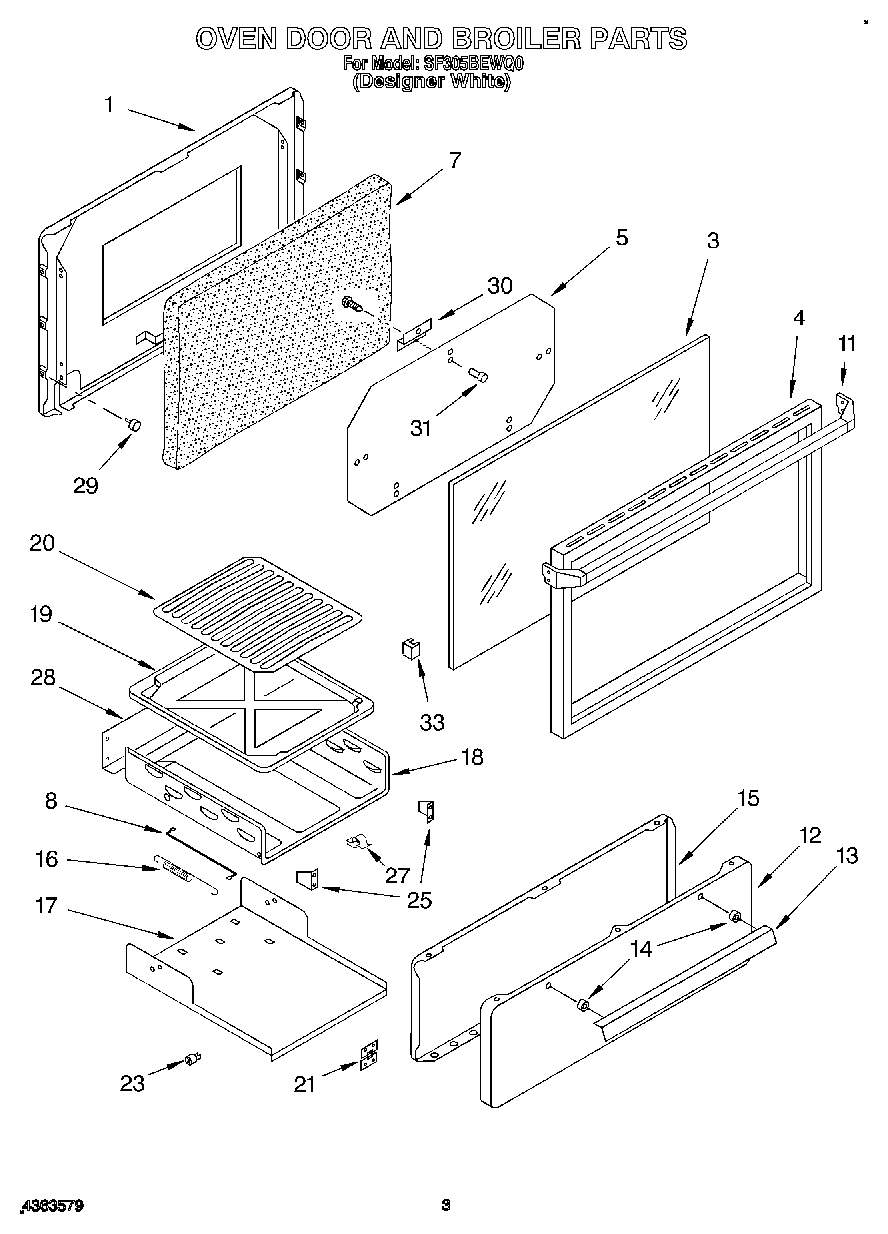

SF305BEWQ0 02 – OVEN DOOR AND BROILER

Products

PositionProduct
1Liner, Door
3Glass, Oven Door
4Frame, Door (White)
5Baffle, Oven Door
7Screw
7Insulation
8Rod, Push-Pull
11Handle, Door (White)
12Panel, Broiler (Screw)
12Panel, Broiler (White)
13Screw, Door Handle
13Handle, Door (2)
14Spacer (4)
14Screw
15Liner, Broiler Door
16Spring (2)
17Carriage Broiler
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door
23W10709871 Whirlpool Drawer Glide
25Bracket
27Clip, Broiler
28Screws (3)
28Backer, Carriage
29Bumper, Rubber (6)
29WP308685 Whirlpool Microwave Screw
30Bracket “Z“ (8)
31Bumper, Rubber (2)
33Bumper (4)
