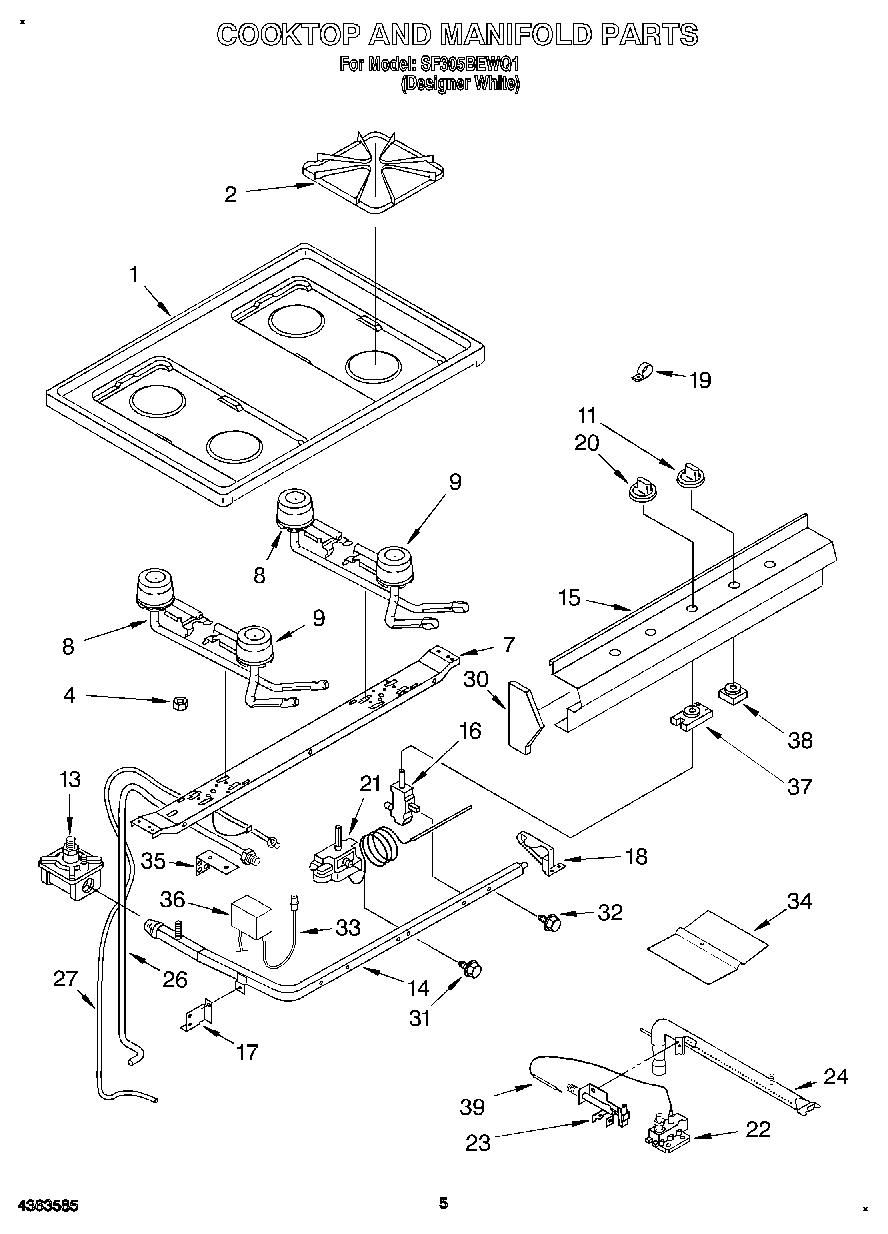

SF305BEWQ1 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Instuctions, Installation
	Guide, Cooking
	Diagram, Wiring
1	Speed Clip (4)
1	Locator Stud (2)
1	Cooktop (White)
2	Grate (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	Knob, Burner (4) ((White Model))
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
19	Strain Relief
20	Knob, Thermostat (White)
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Screw, Thermostat Mounting (2)
23	Pilot
24	Burner, Oven
24	Screw
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Endcap (Screw)
30	Endcap (L.H.)
30	Endcap (R.H.)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
33	Ignitor (R.H.)
33	Screw
33	Ignitor (L.H.)
34	W10080180 Whirlpool Nut
34	Spreader, Flame
35	WP308685 Whirlpool Microwave Screw
35	Cover, Spark Module
36	Module, Spark
36	Ignitor (Screw, 8 X 1/2 (4))
37	WP878009 Whirlpool Igniter Switch
38	WP4157180 Whirlpool Surface Burner Ignition Switch
39	WPW10208653 Whirlpool Insulation
39	Harness, Wiring
39	Harness, Wiring
39	Wire, Tie
39	Ignitor, Oven
39	Cord, Power
