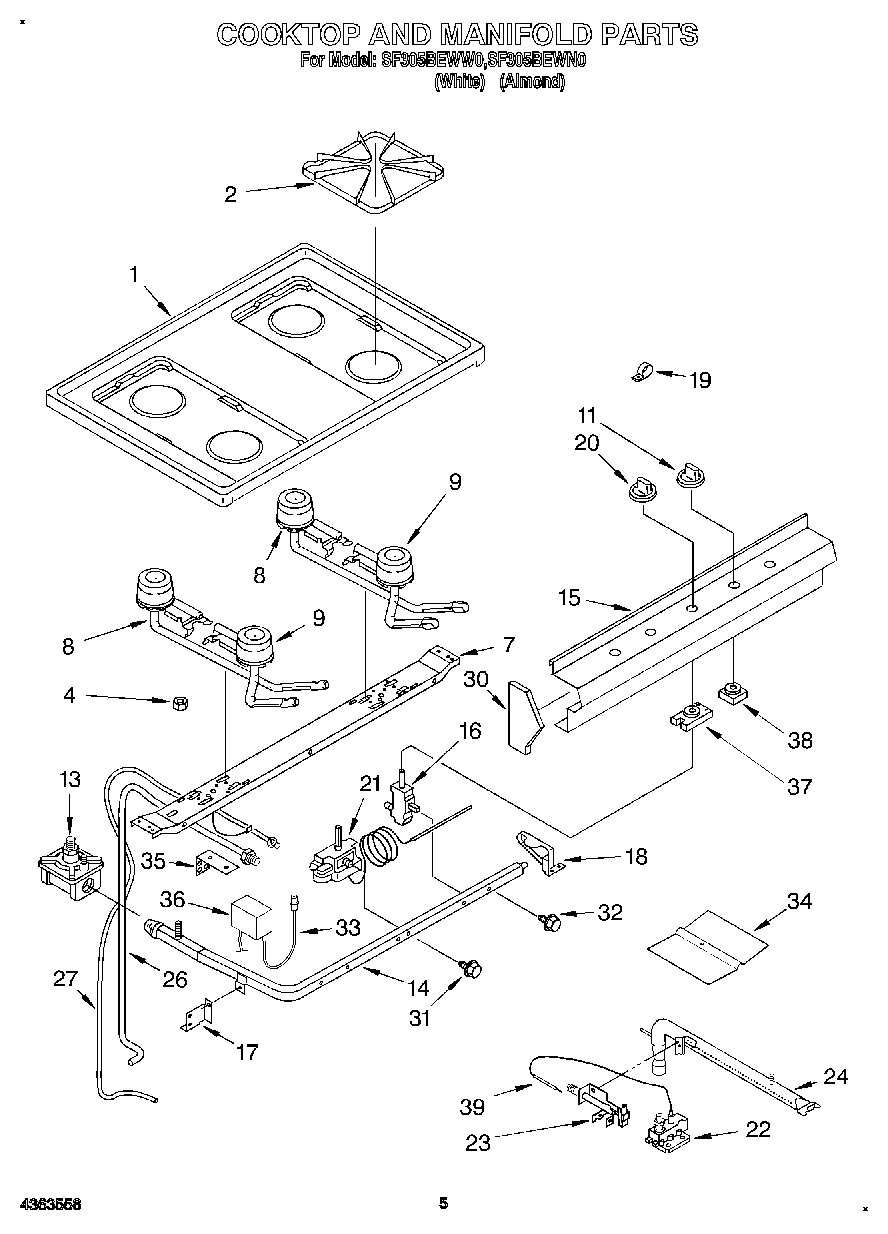

SF305BEWW0 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Guide, Cooking
	Diagram, Wiring
	Instuctions, Installation
	Guide, Use & Care
1	Speed Clip (4)
1	Locator Stud (2)
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
19	Strain Relief
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Pilot
23	Screw, Thermostat Mounting (2)
24	Burner, Oven
24	Screw
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Endcap (R.H.)
30	Endcap (L.H.)
30	Endcap (Screw)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
33	Ignitor (R.H.)
33	Ignitor (L.H.)
33	Screw
34	W10080180 Whirlpool Nut
34	Spreader, Flame
35	Plate, Spark Module
35	WP308685 Whirlpool Microwave Screw
36	Ignitor (Screw, 8 X 1/2 (4))
36	Module, Spark
37	WP878009 Whirlpool Igniter Switch
38	WP4157180 Whirlpool Surface Burner Ignition Switch
39	Cord, Power
39	Wire, Tie
39	WPW10208653 Whirlpool Insulation
39	Ignitor, Oven
39	Harness, Wiring
