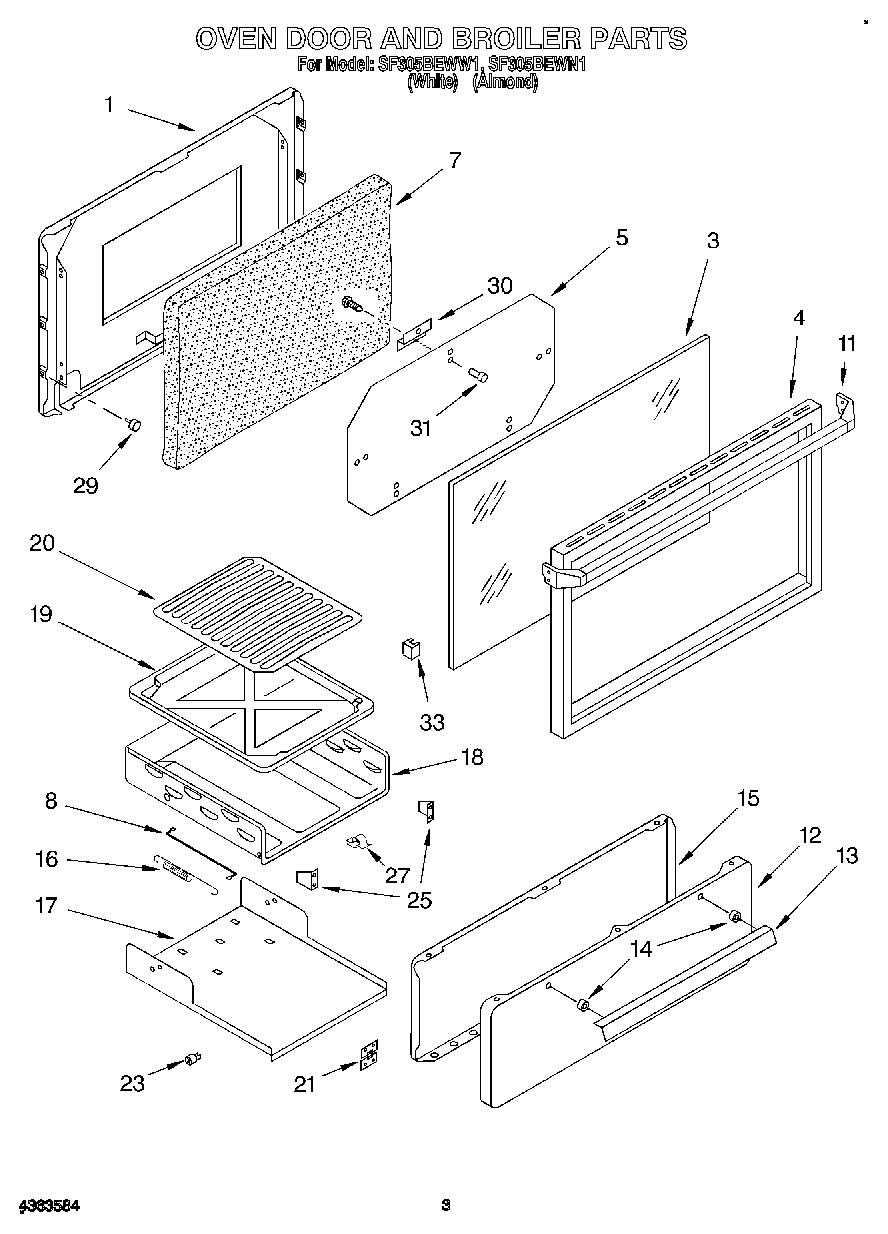

SF305BEWW1 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
3	Glass, Outer
4	Frame, Door
5	Baffle, Oven Door
7	Insulation
7	Screw
8	Rod, Push-Pull
11	Handle, Door
12	Panel, Broiler (Screw)
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Handle, Door (2)
13	Screw, Door Handle
14	Spacer (4)
14	Screw
15	Liner, Broiler Door
16	Spring (2)
17	Carriage Broiler
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
23	W10709871 Whirlpool Drawer Glide
25	Bracket
27	Clip, Broiler
29	WP308685 Whirlpool Microwave Screw
29	Bumper, Rubber (6)
30	Bracket “Z“ (8)
31	Bumper, Rubber (2)
33	Bumper (4)
