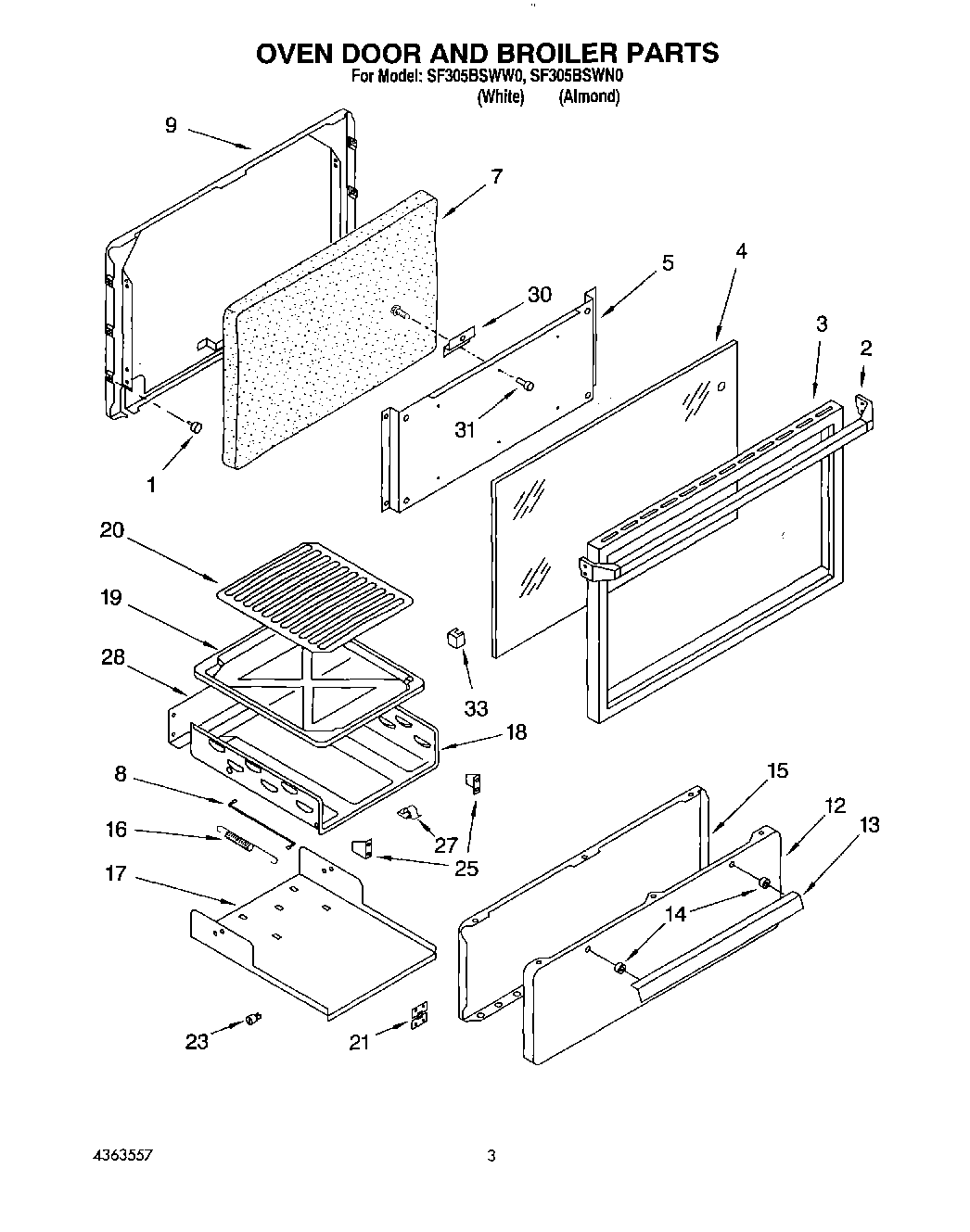

SF305BSWN0 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Screw, Door Handle
2	Handle, Door
3	Frame, Door
3	Panel, Broiler (Screw)
4	Glass, Outer
5	Ring, Hold Down
7	Insulation
8	Rod, Push-Pull
9	Liner, Door
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Screw
13	Handle, Door (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Carriage Broiler
18	WP308685 Whirlpool Microwave Screw
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	W10080180 Whirlpool Nut
21	Bracket
23	Roller (2)
25	Plate (2)
27	Clip, Broiler
28	Backer, Carriage
30	Bracket “Z“ (8)
31	Bumper, Rubber (2)
33	Bumper (4)
