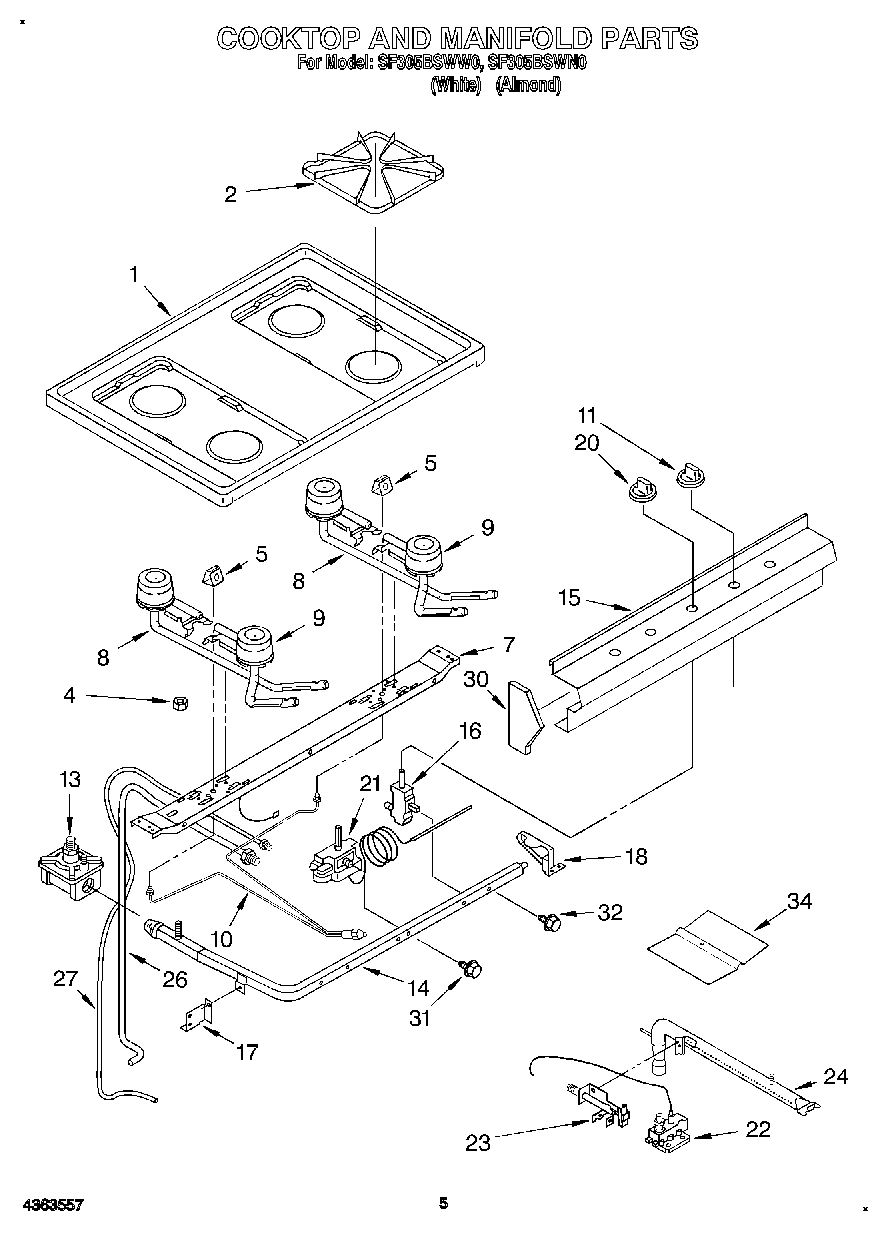

SF305BSWN0 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

SF305BSWN0 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Written by

in

SF305BSWN0 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

PositionProduct
Installation Instuctions
Diagram, Wiring
Guide, Cooking
Guide, Use & Care
1Speed Clip (4)
1Locator Stud (2)
1Cooktop (White)
1Cooktop (Almond)
2Grate (4)
4Nut, Hex
5Cover, Pilot (2)
7Screw
7Support, Burner
8Burner, Rear (2)
9Burner, Front (2)
9Screw, 10-12 X 3/8 (2)
10Tubing, Pilot (Incl. No. 6)
11WP4320580 Whirlpool Knob Assembly
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4) (Includes Ill. No. 32)
17Support, Manifold (L.H.)
18WP308685 Whirlpool Microwave Screw
18Support, Manifold (R.H.)
20Knob, Thermostat
21Thermostat (Includes Ill. No. 31)
22WP3387230 Whirlpool Screw
22Valve, Safety
23Pilot
24Burner, Oven
25Screw
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
30Endcap (L.H.)
30Endcap (R.H.)
31Bolt, Thermostat Mounting (2)
32Bolt, Valve Mounting
34Support, Rear (2)
34WPW10208653 Whirlpool Insulation
34FOIL, ALUMINUM OVEN (18“ X 25 )
34Spreader, Flame
