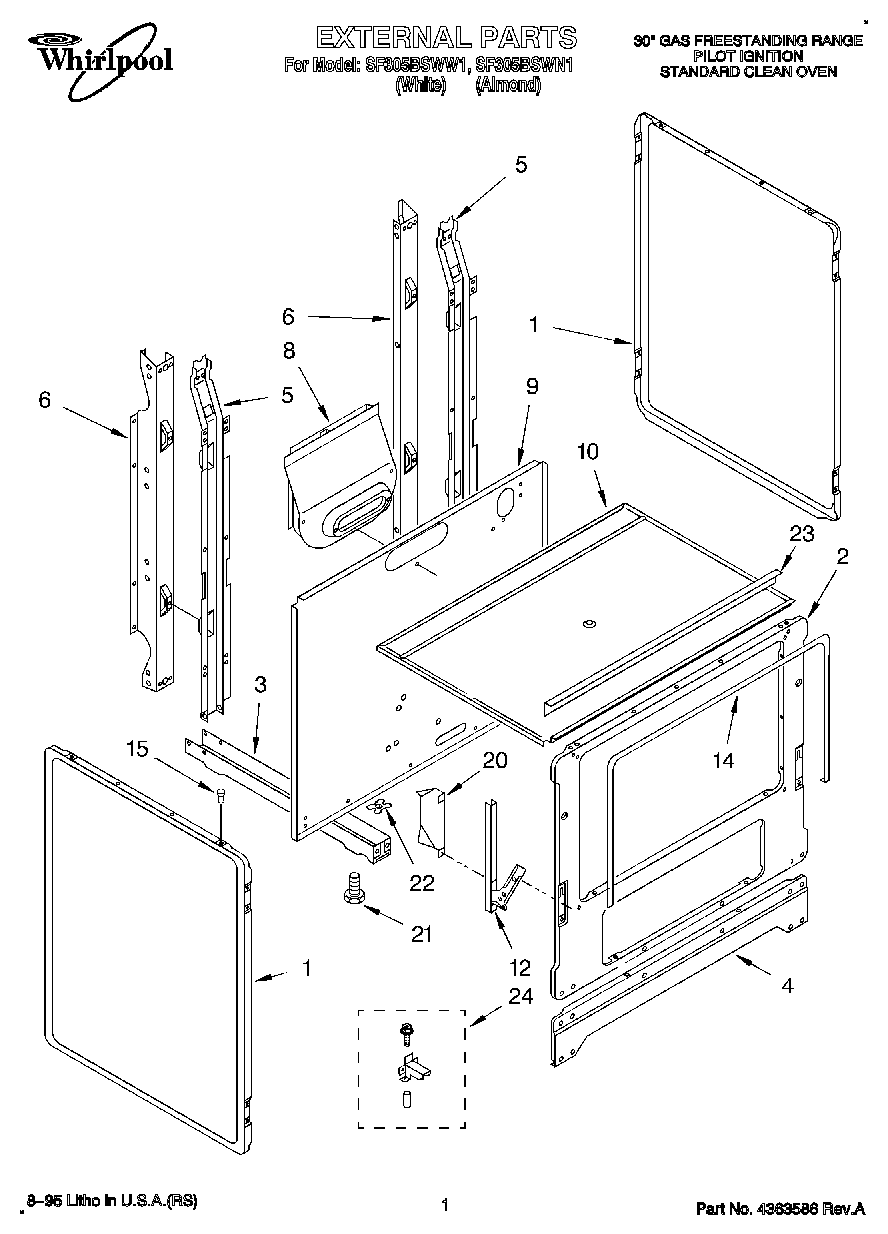

SF305BSWN1 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (White)
2	Frame, Front
3	Rail, Base (2)
4	Ignitor (Screw, 8 X 1/2 (4))
4	Base, Front
5	Screw
5	Support, Main (2)
6	Support, Rear (2)
8	Box, Flue
9	Panel, Rear
10	Burner Box
12	Screw
12	Hinge, Door (2)
12	Screw
14	Seal, Door (2)
15	Locator Stud (2)
15	Bumper
20	Shield, Insulation
21	Leg, Leveler
22	Nut (4)
23	WP308685 Whirlpool Microwave Screw
23	Extension Burner Box
24	Anti-Tip Kit
