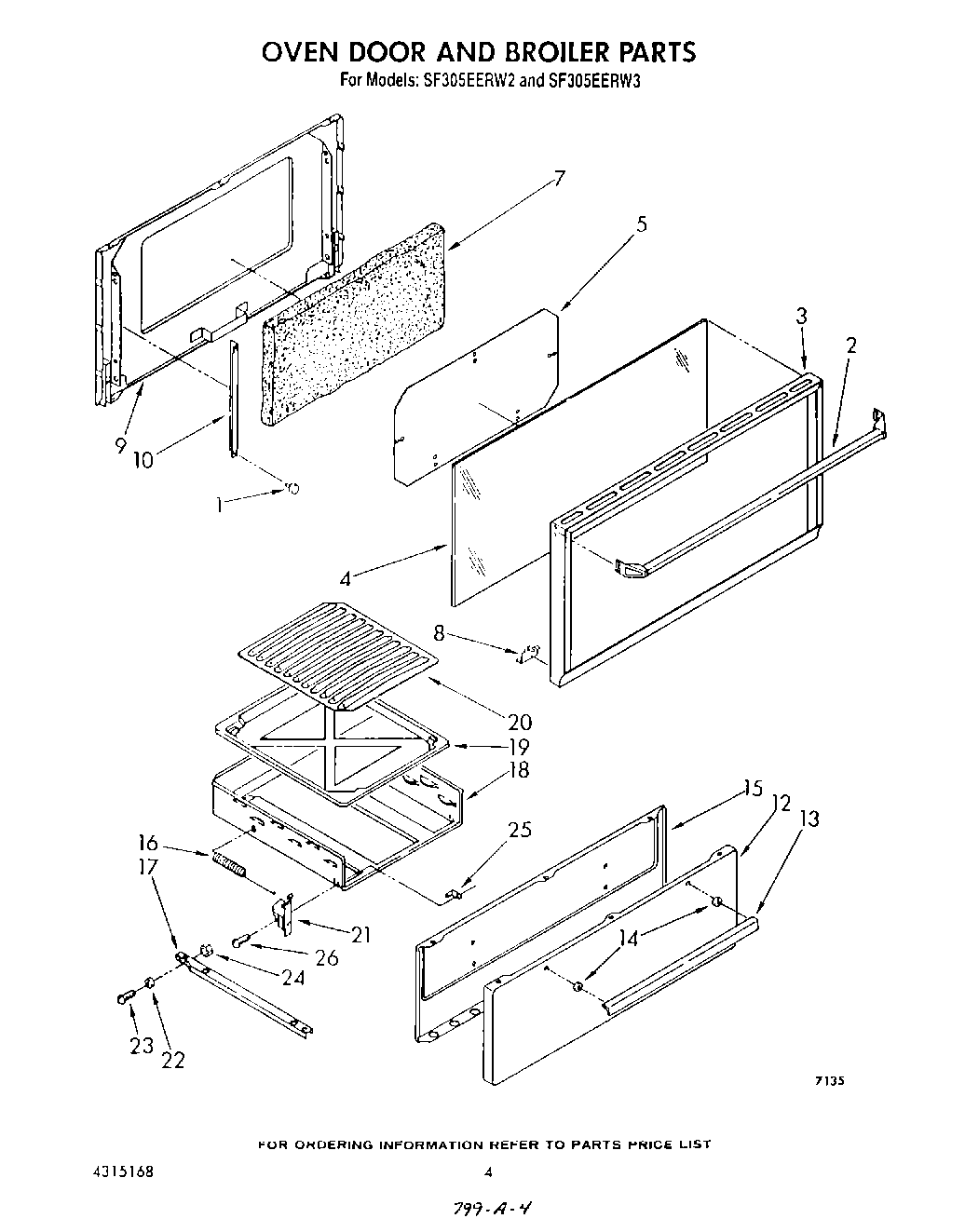

SF305EERW2 04 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door
2	Screw, 8-18 X 3/8 (4)
3	Frame, Door
4	Glass
5	Baffle, Door
7	Insulation
8	Support, Glass
8	SCREW
8	Support, Glass (Right Hand)
8	Speed Clip (4)
9	Liner, Door
10	Support, Glass (2)
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Screw, 10-12 X 5/8 (2)
13	Handle
13	Washer (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (L.H.)
21	Hinge, Door (R.H.)
22	Roller (2)
23	Pin, Roller (2)
24	W10080180 Whirlpool Nut
25	Plate (2)
26	Screw (2)
