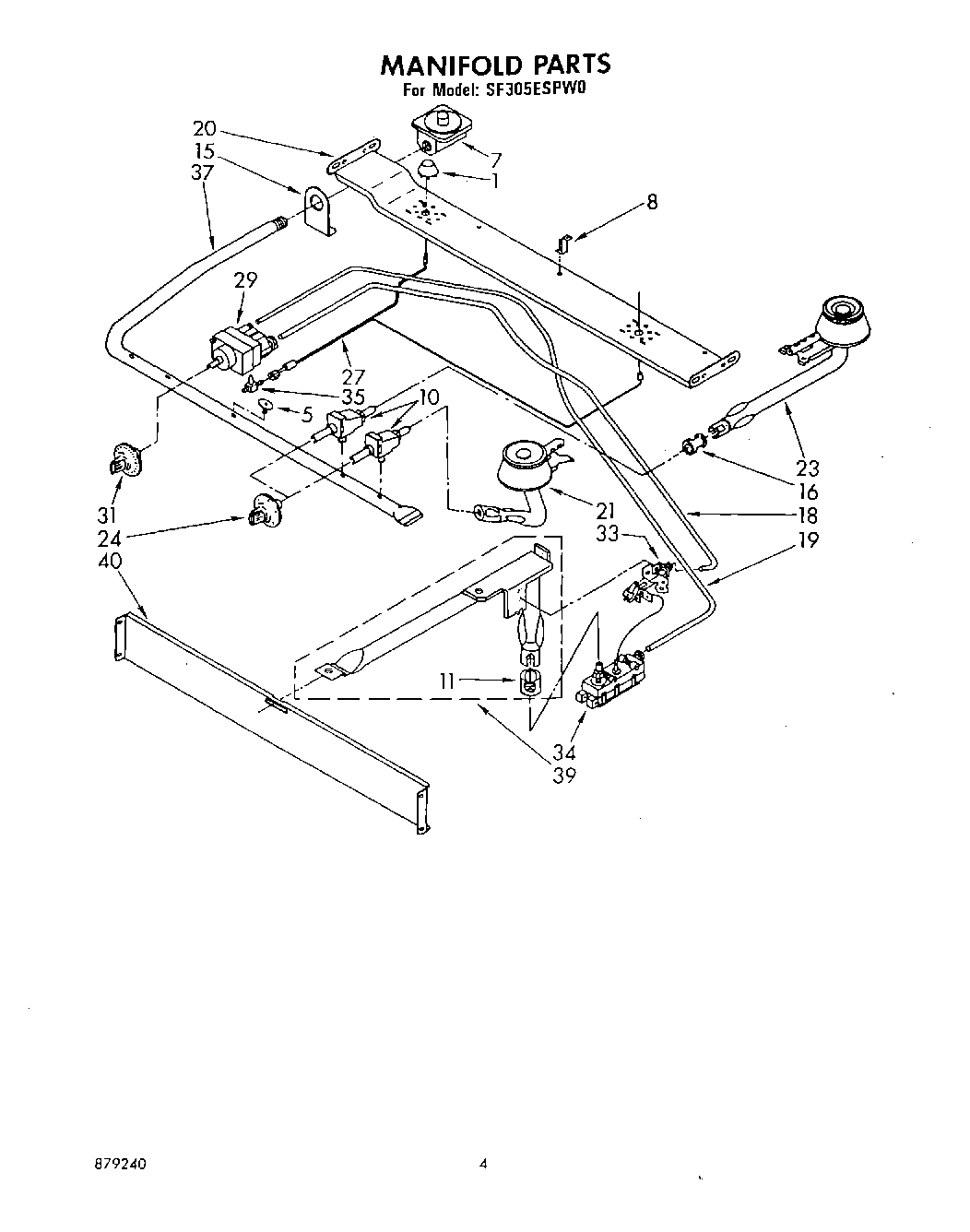

SF305ESPW0 03 – MANIFOLD

Products

PositionProduct
1Cone, Top Lighter (2)
5Fitting, Flange
7Regulator, Pressure
8Support, Burner Hanger
10Valve, Top Burner (4)
11Shutter, Oven Burner Air
15Support, Inlet Pipe
16Cap, Top Burner Air Mixer
18Tubing, Control/Pilot
19Tubing, Oven
20Hanger, Top Burner
21Burner, Top Front (2) (Includes Illus. 16)
23Burner, Top Rear (2) (Includes Illus. 16)
24Handle, Top Valve (4)
27Lighter, Top Burner
29Control, Oven
31Dial, Oven Control
33Lighter, Oven Burner
34Valve, Oven Lighter Safety
35Filter, Top Lighter
37Pipe, Manifold
39Burner, Oven
40Deflector, Heat
