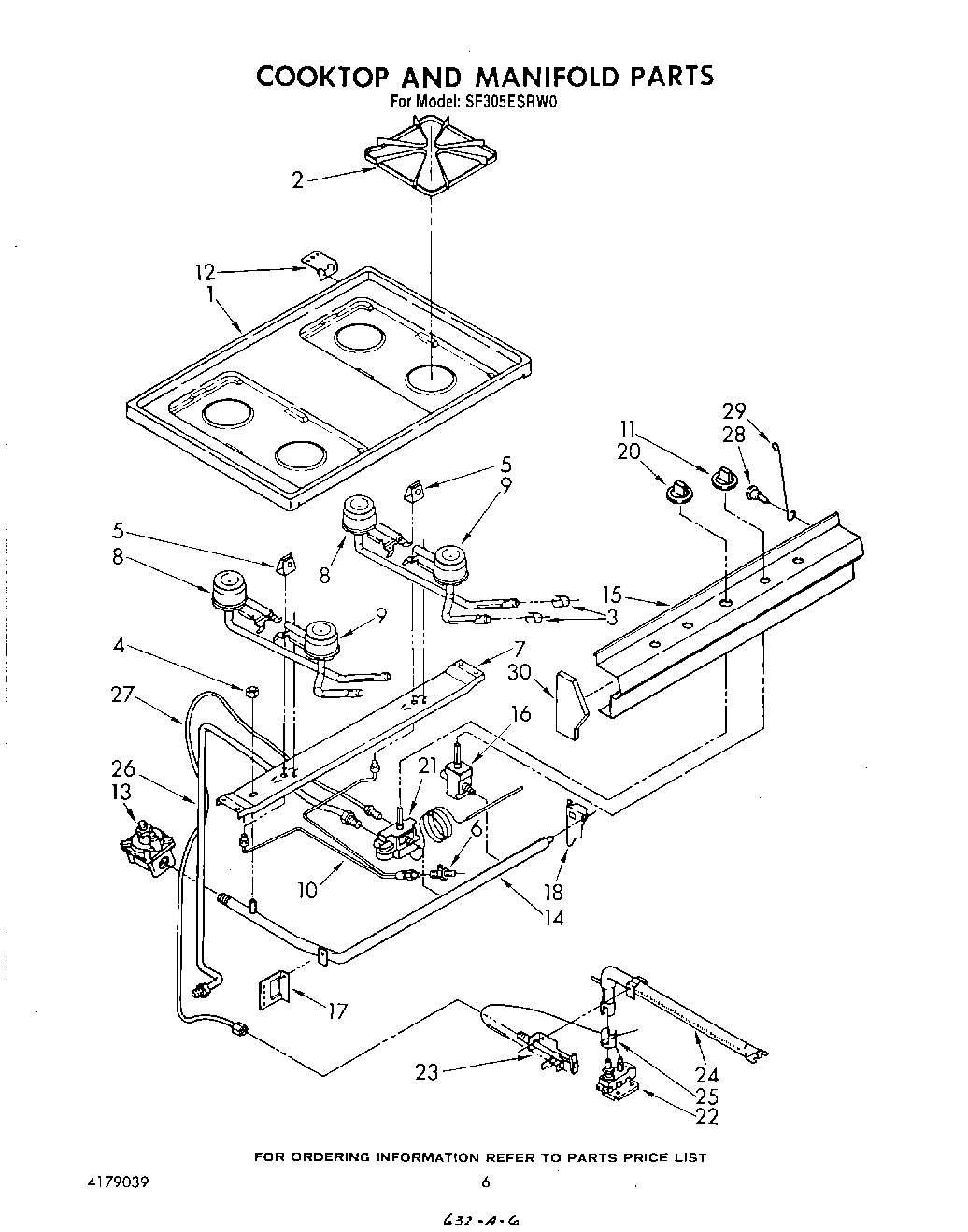

SF305ESRW0 05 – COOK TOP AND MANIFOLD , LITERATURE

Products

Position	Product
	Guide, Use & Care
	Guide, Cooking
	WPL LIT786735
	List, Repair Parts
1	Cooktop (Almond)
1	Cooktop (White)
1	Cooktop (Toast)
1	Cooktop (Platinum)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4179282 Whirlpool Knob
12	SCREW
12	Speed Clip (4)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	WPW10208653 Whirlpool Insulation
30	Endcap (L.H.)
30	Endcap (R.H.)
30	FOIL, ALUMINUM OVEN (18“ X 25 )
