SF305PEEQ0 02 – CONTROL PANEL

SF305PEEQ0 02 – CONTROL PANEL

Written by

in

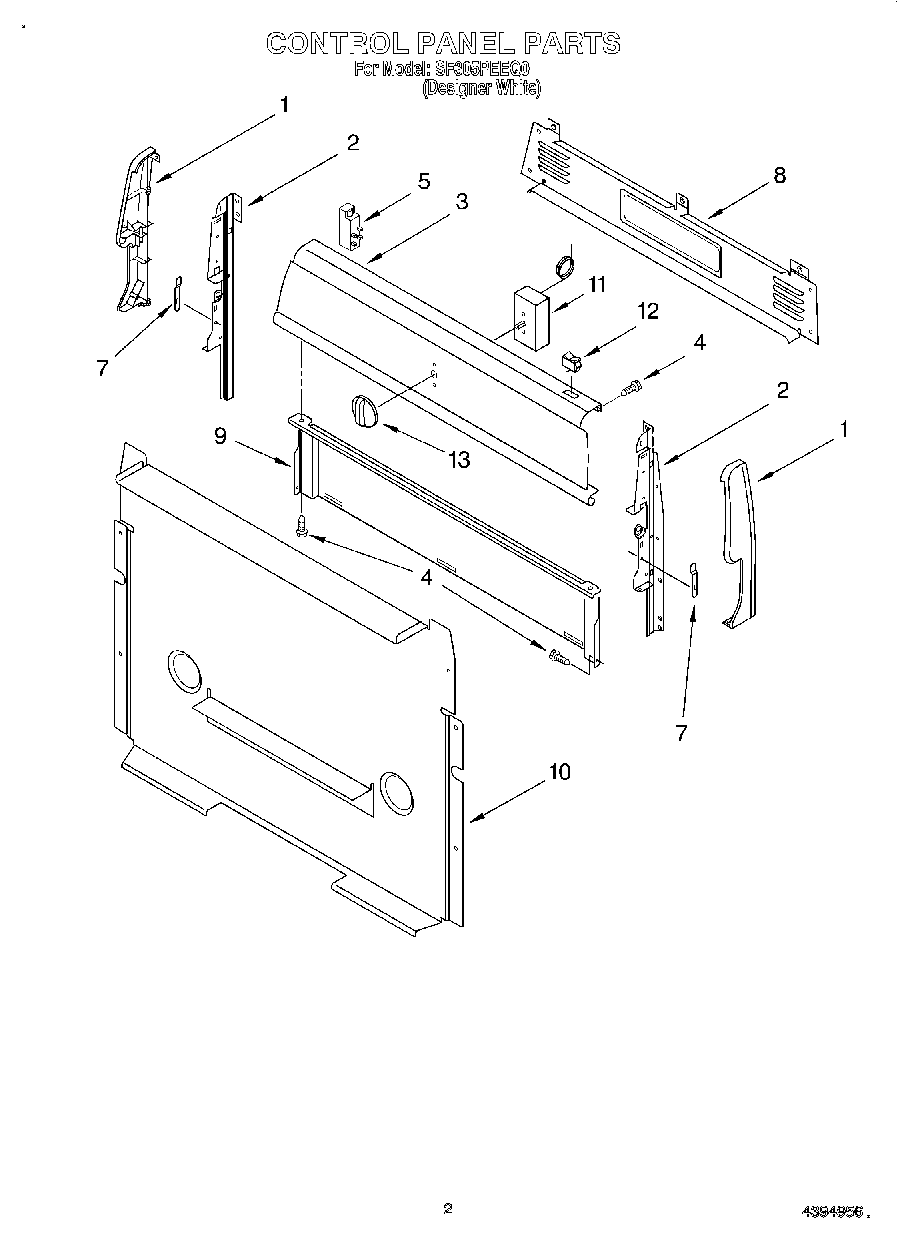

SF305PEEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
5WPY706189 Whirlpool Stove Screw
5WPW10110491 Whirlpool Spark Module
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
9Screw
10SCREW
10Cover, Lower
11Switch, Infinite (Screw (8))
11Thermostat
123149360 Whirlpool Light Switch
13Knob, Thermostat
←GY398LXPB02 02 – CONTROL PANEL PARTS
EKS396 03 – LOWER OVEN CABINET ASSY→
