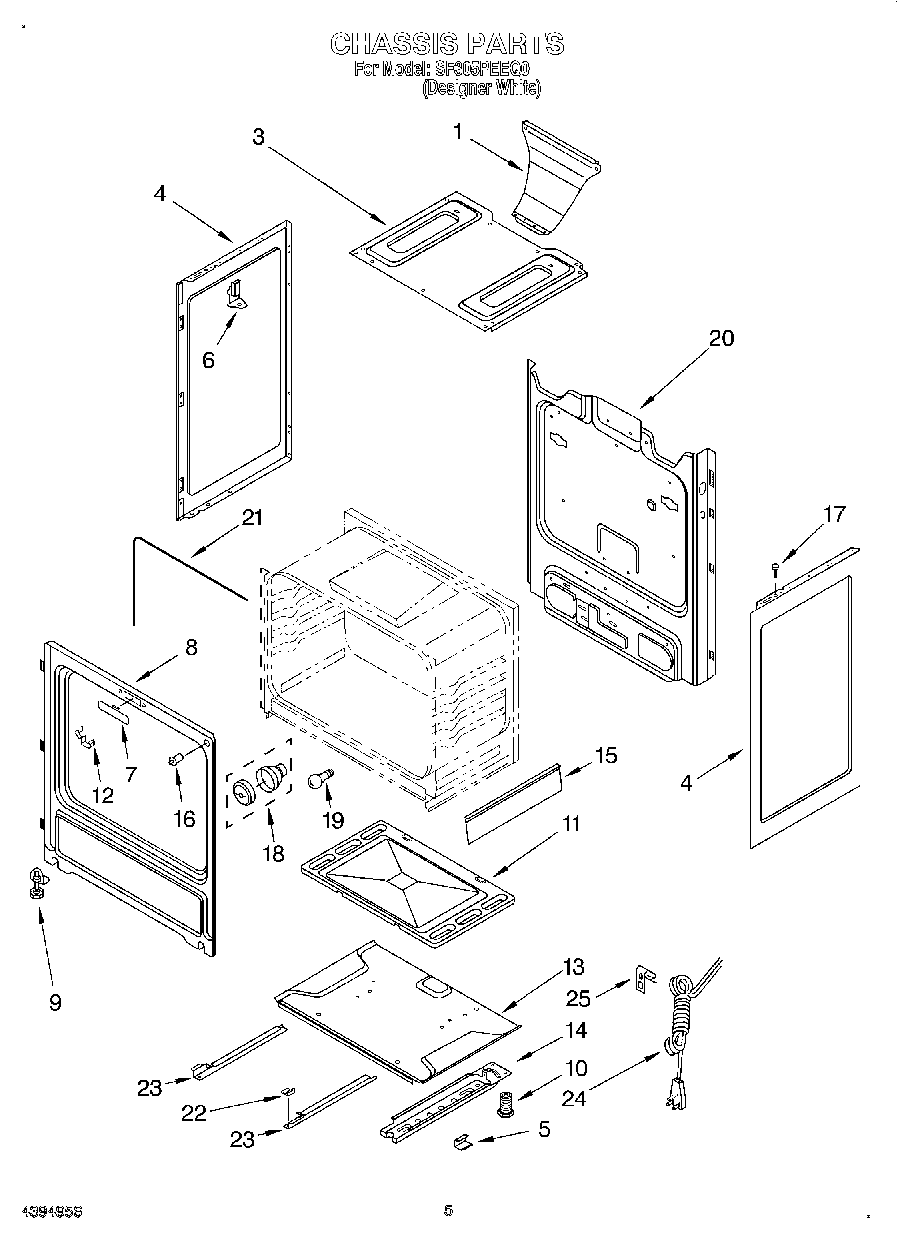

SF305PEEQ0 04 – CHASSIS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
1	WP3196557 Whirlpool Screw
3	W11379351 Whirlpool Burner Box
4	Panel, Side (2) (White)
4	Screw
5	Clip, Panel (6)
6	Brkt, Manifold Mtg (Left Hand)
6	Brkt, Manifold Mtg (Right Hand)
7	Plug, Frame
8	Frame, Front
8	SCREW
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	Screw
11	WP3195097 Whirlpool Oven Bottom
12	98005642 Whirlpool Clip
13	Baffle, Base
14	W10491985 Whirlpool Screw
14	WPW10306546 Whirlpool Base Rail
15	Shield, Lower
16	Switch, Door
17	238614 Whirlpool Bumper Hinge
18	W11594027 Whirlpool Range Oven Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Guide, Front (2)
23	Plate, Guide (Left Hand)
23	Plate, Guide (Right Hand)
24	WP9757891 Whirlpool Power Cord
25	549193 Whirlpool Refrigerator Power Clamp
25	WPW10208653 Whirlpool Insulation
25	TIE,WIRE
25	W11244557 Whirlpool Screw
25	W11688737 Whirlpool Insulation
