SF306PEGN1 02 – CONTROL PANEL

SF306PEGN1 02 – CONTROL PANEL

Written by

in

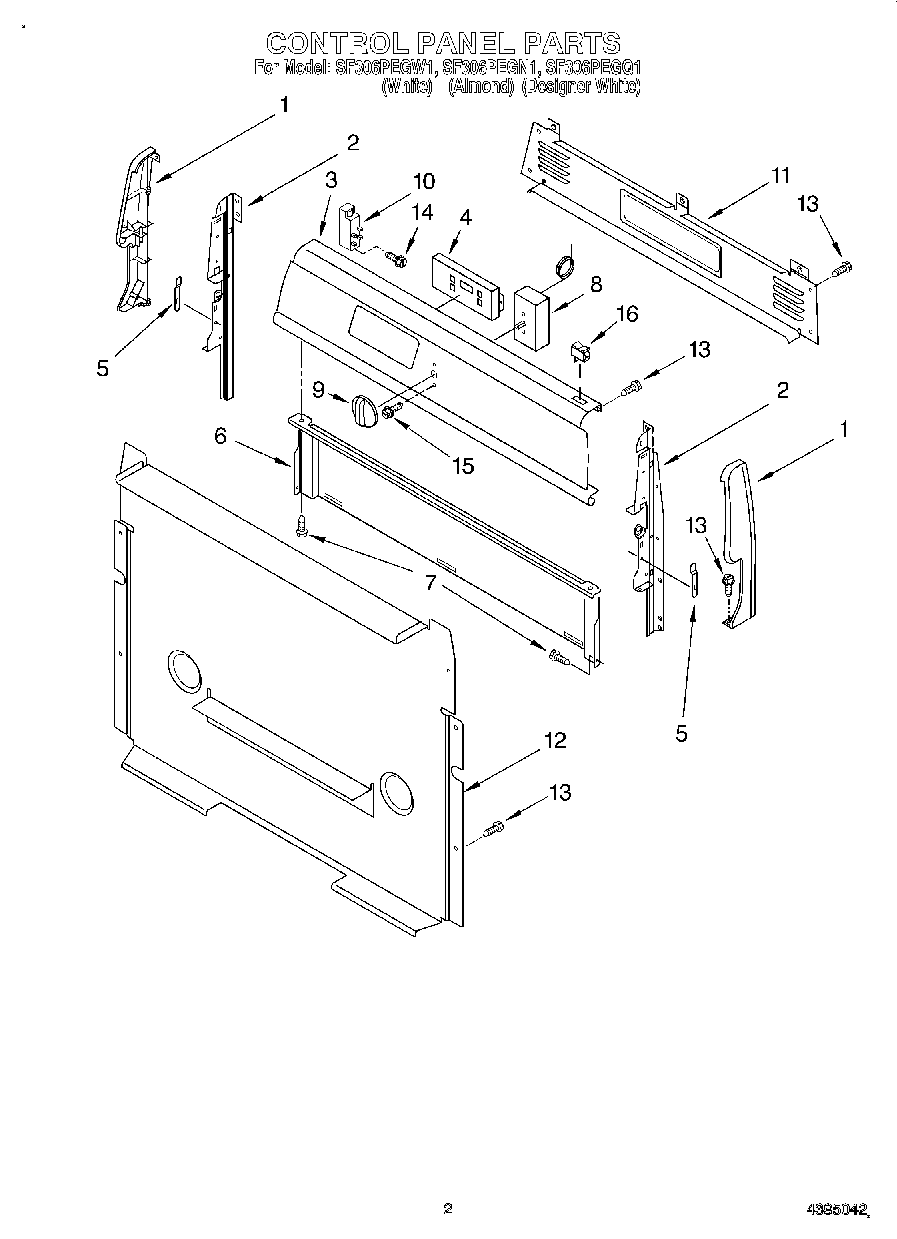

SF306PEGN1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4Control, Range (Black)
4Control, Range (White)
53196200 Whirlpool Clip
6Shield, Heat
7Screw
8Thermostat
9Knob, Thermostat
10Module Spark Reignition
11Cover, Upper
12Cover, Lower
13SCREW
14WPY706189 Whirlpool Stove Screw
15WP3400882 Whirlpool Screw
163149360 Whirlpool Light Switch
16WP4314961 Whirlpool Lite Switch
