SF306PEGN1 03 – MANIFOLD

SF306PEGN1 03 – MANIFOLD

Written by

in

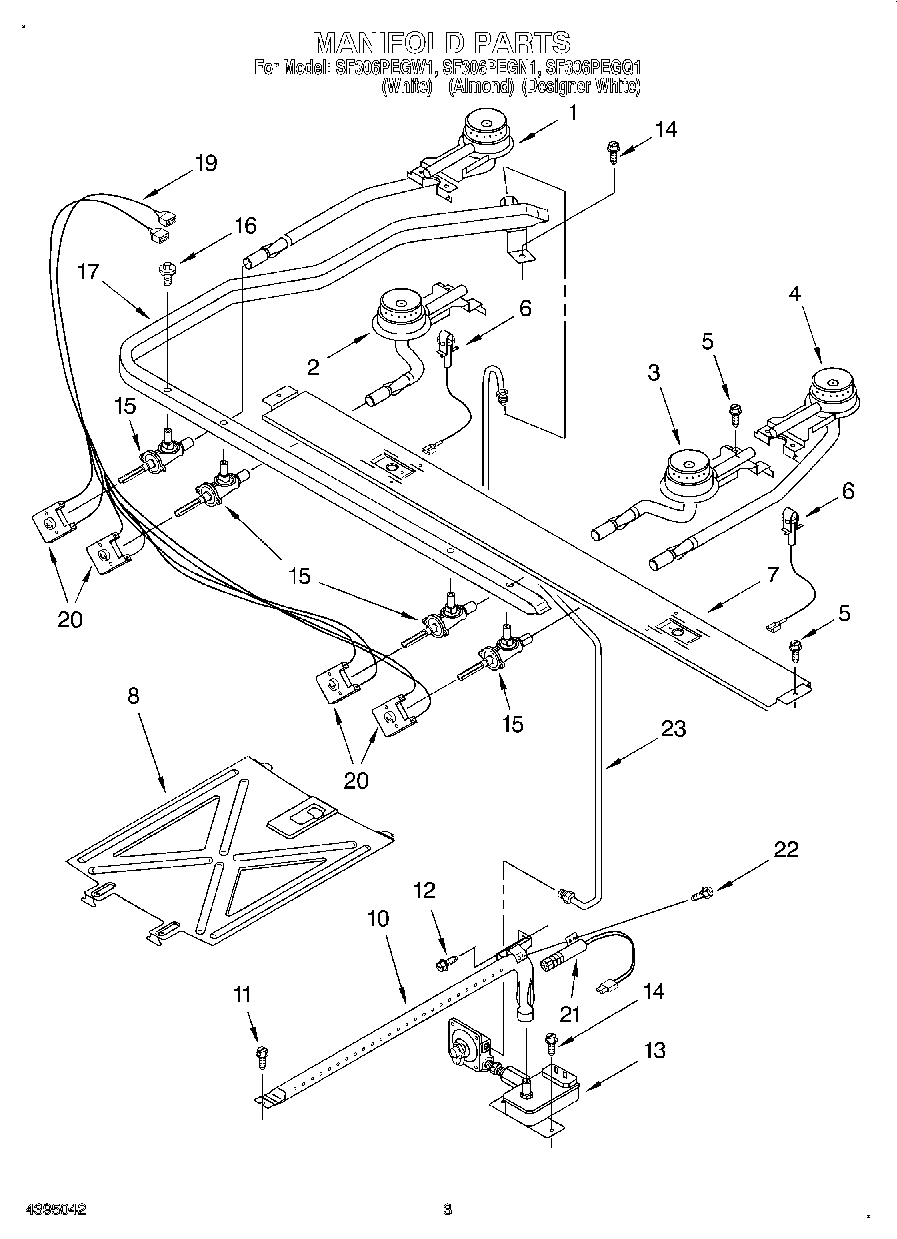

SF306PEGN1 03 – MANIFOLD

Products

PositionProduct
1Burner (Left Rear)
2Burner, Left Front
3Burner (Right Front)
4Burner (Right Rear)
5W10491985 Whirlpool Screw
6Ignitor, Surface (Left)
6Igniter, Surface (Right Hand)
7Support, Burner
8Spreader, Flame (Oven)
10Burner, Oven
11SCREW
123196265 Whirlpool Oven Screw
13Valve, Gas Combo
15Valve, Burner (4)
16WP3186217 Whirlpool Screw
17Pipe, Manifold
19Harness, Igniter (Incl. Switches)
20Switch, Igniter (4)
21Igniter, Bake/Broil
22W11684507 Whirlpool Screw
23Tubing (Manifold to Regulator)
23LP Conversion Kit (Nat to LP)
23Spud Kit-Set of 4 (LP to Nat)
