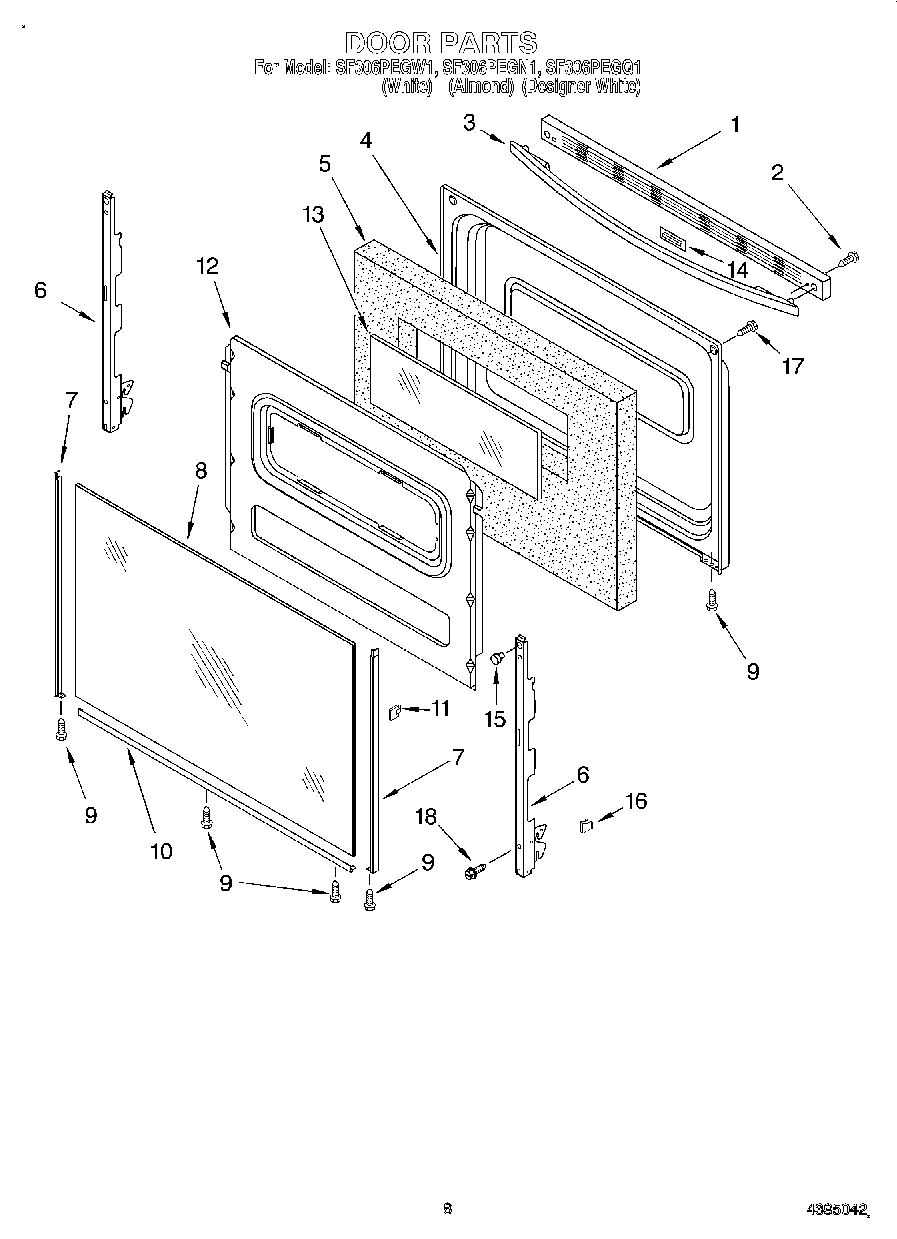

SF306PEGN1 06 – DOOR, LIT/OPTIONAL

SF306PEGN1 06 – DOOR, LIT/OPTIONAL

Written by

in

SF306PEGN1 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
Harness, Igniter (Incl. Switches)
WPL 8053527
Clip
16515 Whirlpool Clip
WPL 8053899
3400964 Whirlpool Oven Clip
814381 Whirlpool Pin
Literature (Installation, Instructions (Template))
WPL LIT8053370
WPL LIT8053554
Safer Cooking Tips
WPL LIT8053706
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5Insulation, Door
6Hinge, Door (2)
8WP9762477 Whirlpool Glass Door
8WP9762476 Whirlpool Door Glass
9W10491985 Whirlpool Screw
108184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
108184858 Whirlpool Door Trim
11Clip, Glass (4)
129761500 Whirlpool Oven Retainer
13WP9758164 Whirlpool Door Glass
14Plug, Door
15238614 Whirlpool Bumper Hinge
16WP3196925 Whirlpool Clip Assembly
17WP179051 Whirlpool Screw
188212471 Whirlpool Oven Paint
18Wire (14 Ga. 150 c Yellow)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
1872113 Whirlpool Touch-Up Paint
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18Grease
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18350942 Whirlpool Spray Paint
18WPL 72112
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18511873 Whirlpool Refrigerator Paint
18WPL 799832
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WP3196175 Whirlpool Screw
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18350930 Whirlpool White Spray Paint
