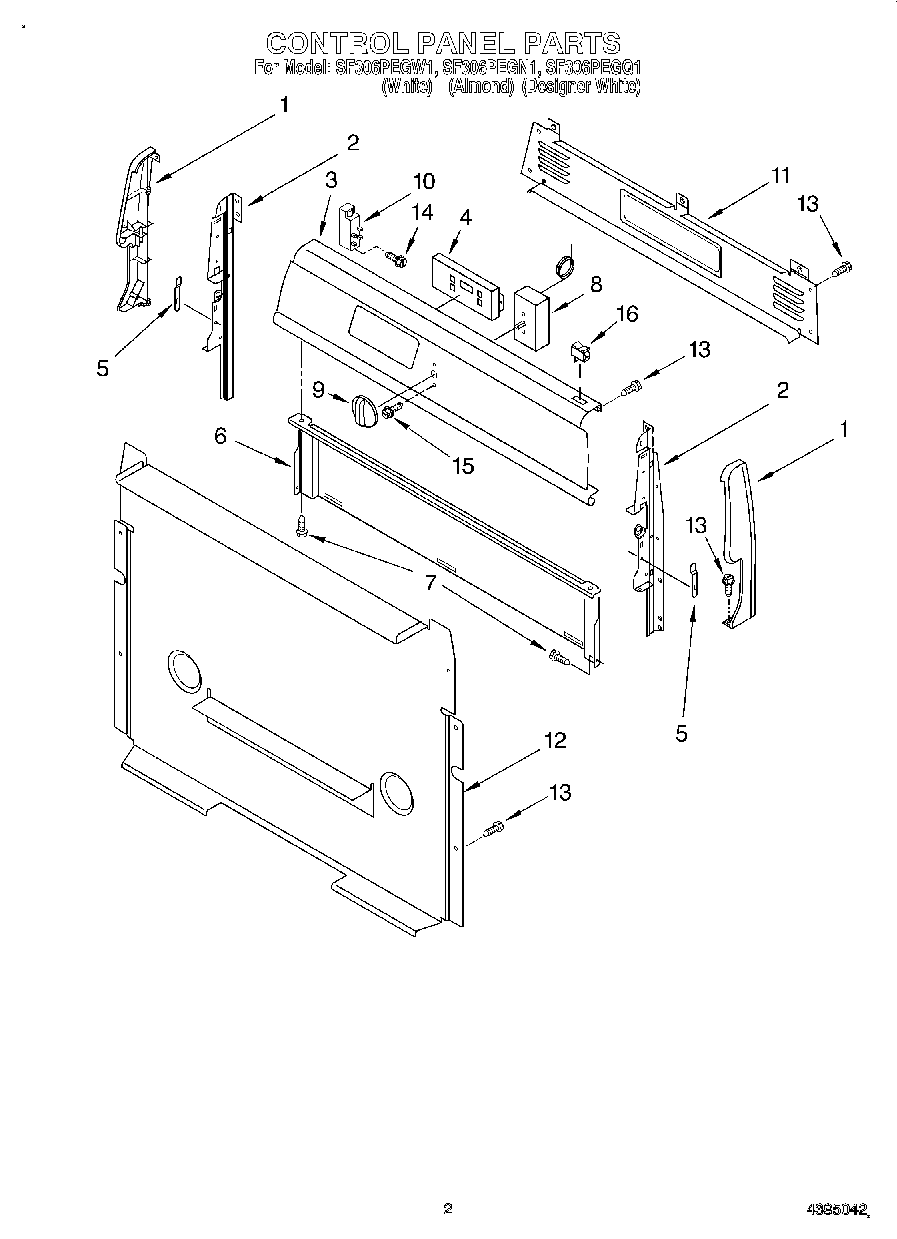

SF306PEGQ1 02 – CONTROL PANEL

SF306PEGQ1 02 – CONTROL PANEL

Written by

in

SF306PEGQ1 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (White)
3	Panel, Backguard (Black)
4	Control, Range (Black)
4	Control, Range (White)
5	3196200 Whirlpool Clip
6	Shield, Heat
7	Screw
8	Thermostat
9	Knob, Thermostat
10	Module Spark Reignition
11	Cover, Upper
12	Cover, Lower
13	SCREW
14	WPY706189 Whirlpool Stove Screw
15	WP3400882 Whirlpool Screw
16	3149360 Whirlpool Light Switch
16	WP4314961 Whirlpool Lite Switch
