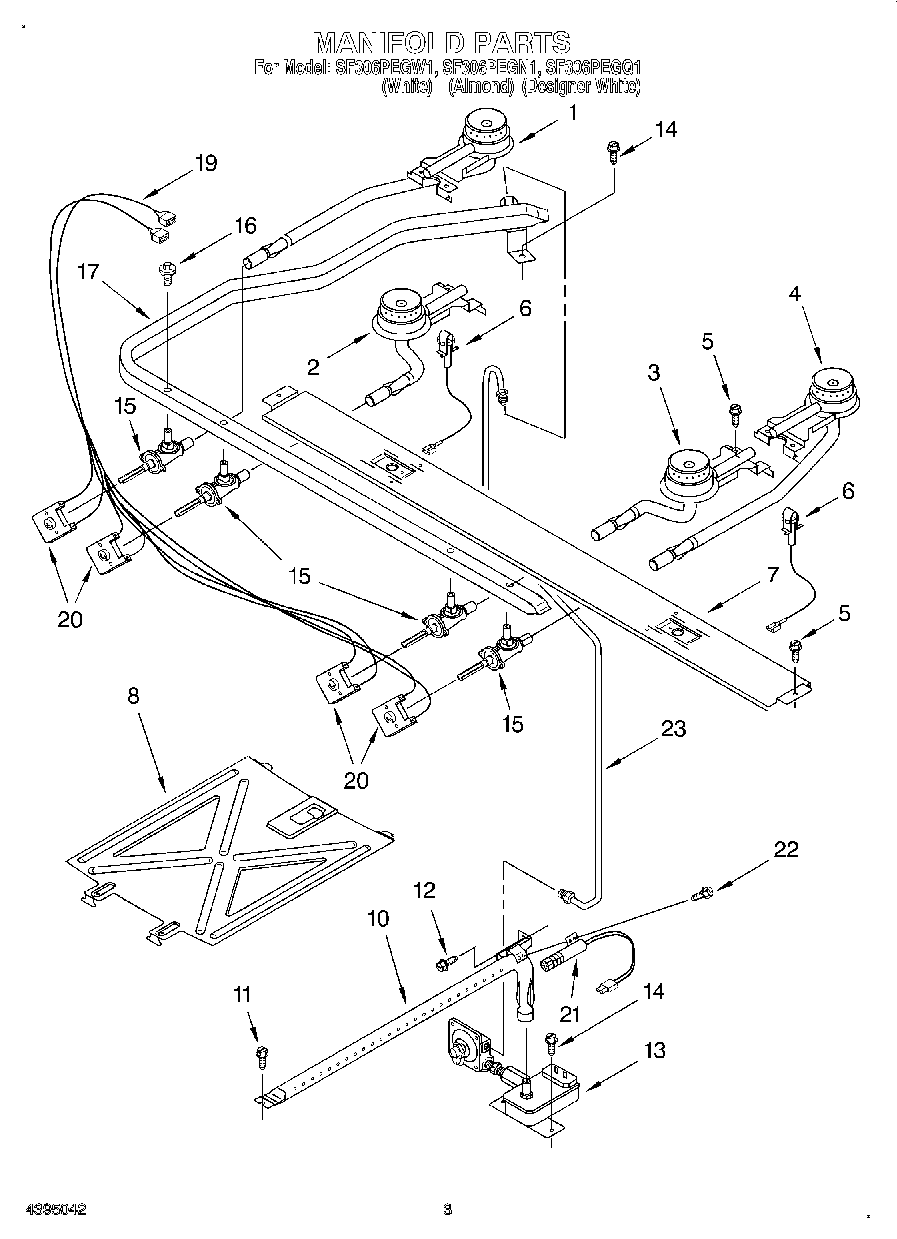

SF306PEGQ1 03 – MANIFOLD
Written by
in
SF306PEGQ1 03 – MANIFOLD
Products
Position
Product
1
Burner (Left Rear)
2
Burner, Left Front
3
Burner (Right Front)
4
Burner (Right Rear)
5
W10491985 Whirlpool Screw
6
Ignitor, Surface (Left)
6
Igniter, Surface (Right Hand)
7
Support, Burner
8
Spreader, Flame (Oven)
10
Burner, Oven
11
SCREW
12
3196265 Whirlpool Oven Screw
13
Valve, Gas Combo
15
Valve, Burner (4)
16
WP3186217 Whirlpool Screw
17
Pipe, Manifold
19
Harness, Igniter (Incl. Switches)
20
Switch, Igniter (4)
21
Igniter, Bake/Broil
22
W11684507 Whirlpool Screw
23
Tubing (Manifold to Regulator)
23
LP Conversion Kit (Nat to LP)
23
Spud Kit-Set of 4 (LP to Nat)
←
