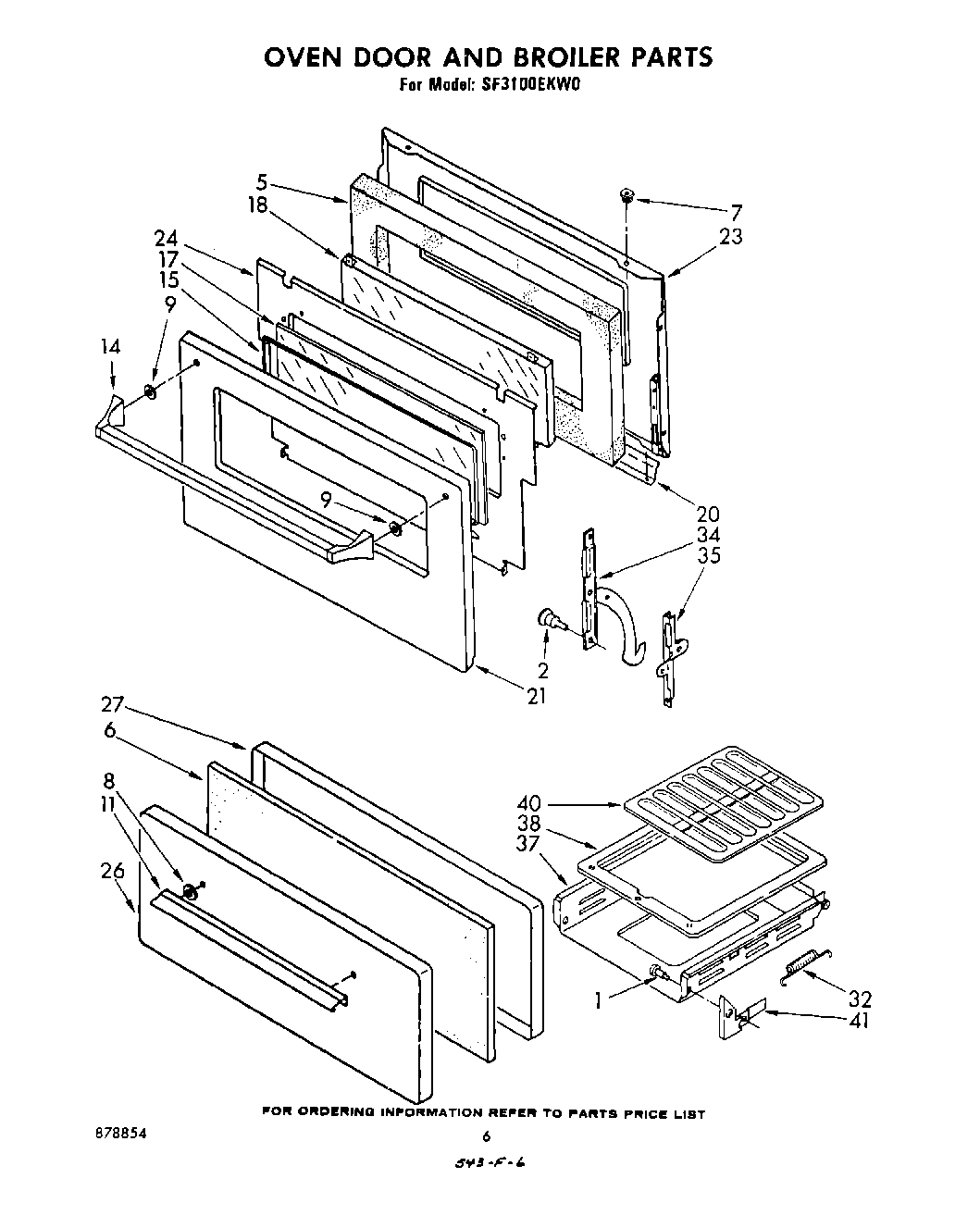

SF3100EKW0 04 – OVEN DOOR AND BROILER
Written by
in
SF3100EKW0 04 – OVEN DOOR AND BROILER
Products
Position
Product
1
Bolt, Shoulder 10-24 x 7/16
2
Bolt, Shoulder 10-24 x 7/16 (2)
5
WPW10208653 Whirlpool Insulation
6
Insulation, Broiler Door
7
98460 Whirlpool Nut
8
Spacer, Oven Door Handle (2)
9
Spacer, Door Handle (2)
11
Handle, Broiler Door
14
Handle, Oven Door
15
Bezel, Oven Door
17
Glass, Oven Door (Outside)
18
Glass, Oven Door
20
Strip, Door Seal
21
Panel, Oven Door (Coffee)
21
Panel, Oven Door (White)
21
Panel, Oven Door (Toast)
21
Panel, Oven Door (Platinum)
21
Panel, Oven Door (Almond)
21
Panel, Control
23
Lining, Oven Door
24
Baffle, Door
26
Panel, Broiler Door (White)
26
Panel, Broiler Door (Almond)
26
Panel, Broiler Door (Platinum)
26
Panel, Broiler Door (Black)
26
Panel, Broiler Door (Harvest Gold)
26
Panel, Broiler Door (Coffee)
26
Panel, Broiler Door (Toast)
27
Lining, Broiler Door
32
Spring, Broiler Door (2)
34
Hinge, Oven Door (2)
35
Support, Oven Door (Left Side)
35
Support, Oven Door (Right Side)
37
Drawer, Broiler
38
Pan, Broiler
40
Tray, Broiler Pan
41
Hinge, Broiler Door (Right Side)
41
Hinge, Broiler Door (Left Side)
←
