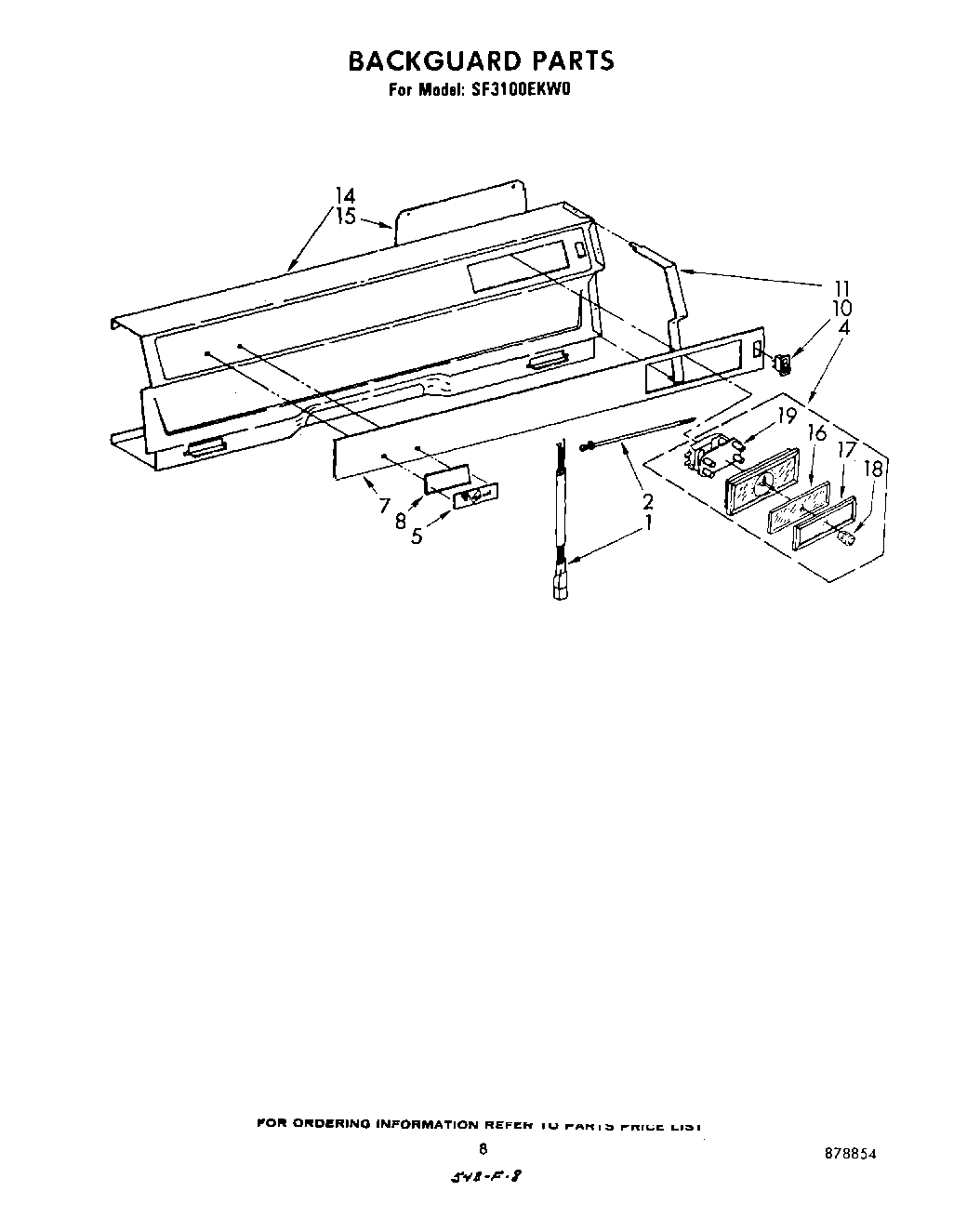

SF3100EKW0 05 – BACKGUARD
Written by
in
SF3100EKW0 05 – BACKGUARD
Products
Position
Product
1
Block, Disconnect Pin
2
Clamp, Wire
4
Clock, Regular
5
Inlay, Nameplate
7
Inlay, Backguard Panel
8
Plate, Name
10
Switch, Rocker
11
End Cap, Backguard (Left Side)
11
End Cap, Backguard (Right Side)
14
toast
14
platinum
14
white
14
almond
14
Panel, Backguard (Coffee)
14
Panel, Backguard (Harvest Gold)
15
Cover, Clock
16
Glass, Timer
17
Bezel
18
Knob (1)
19
Motor
←
