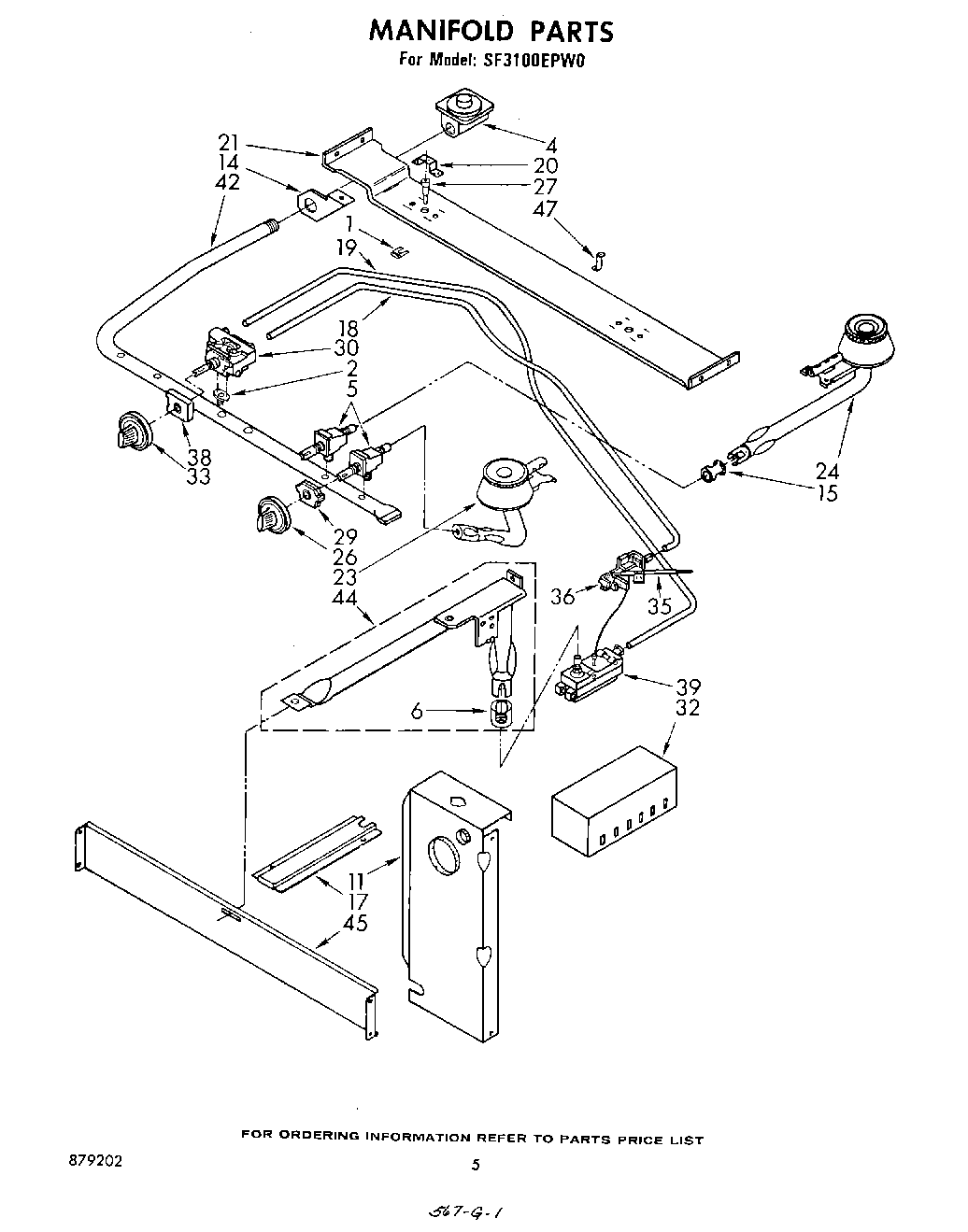

SF3100EPW0 04 – MANIFOLD

SF3100EPW0 04 – MANIFOLD

Written by

in

SF3100EPW0 04 – MANIFOLD

Products

PositionProduct
1Clip, Top Ignitor (2)
2Fitting, Flange
4Regulator, Pressure
5Valve, Top Burner (4)
6Shutter, Oven Burner Air
11Bracket, Wire
14Support, Inlet Pipe
15Cap, Top Burner Air Mixer
17Raceway Wire
18Tubing, Control/Pilot
19Tubing, Oven
20Target, Top Ignitor (2)
21Hanger, Top Burner
23Burner, Top Front (2) (Includes Illus. 16)
24Burner, Top Rear (2) (Includes Illus. 16)
26Handle, Top Valve (4)
27Ignitor, Top Burner (Right Side)
27Ignitor, Top Burner (Left Side)
29Switch, Top Ignitor (4)
30Control, Oven
32Control, Ignitor
33Dial, Oven Control
35Ignitor, Oven Burner
36Lighter, Oven Burner
38WP878009 Whirlpool Igniter Switch
39Valve, Oven Light Safety
42Pipe, Manifold
44Burner, Oven
45Deflector, Heat
47Support, Burner Hanger
