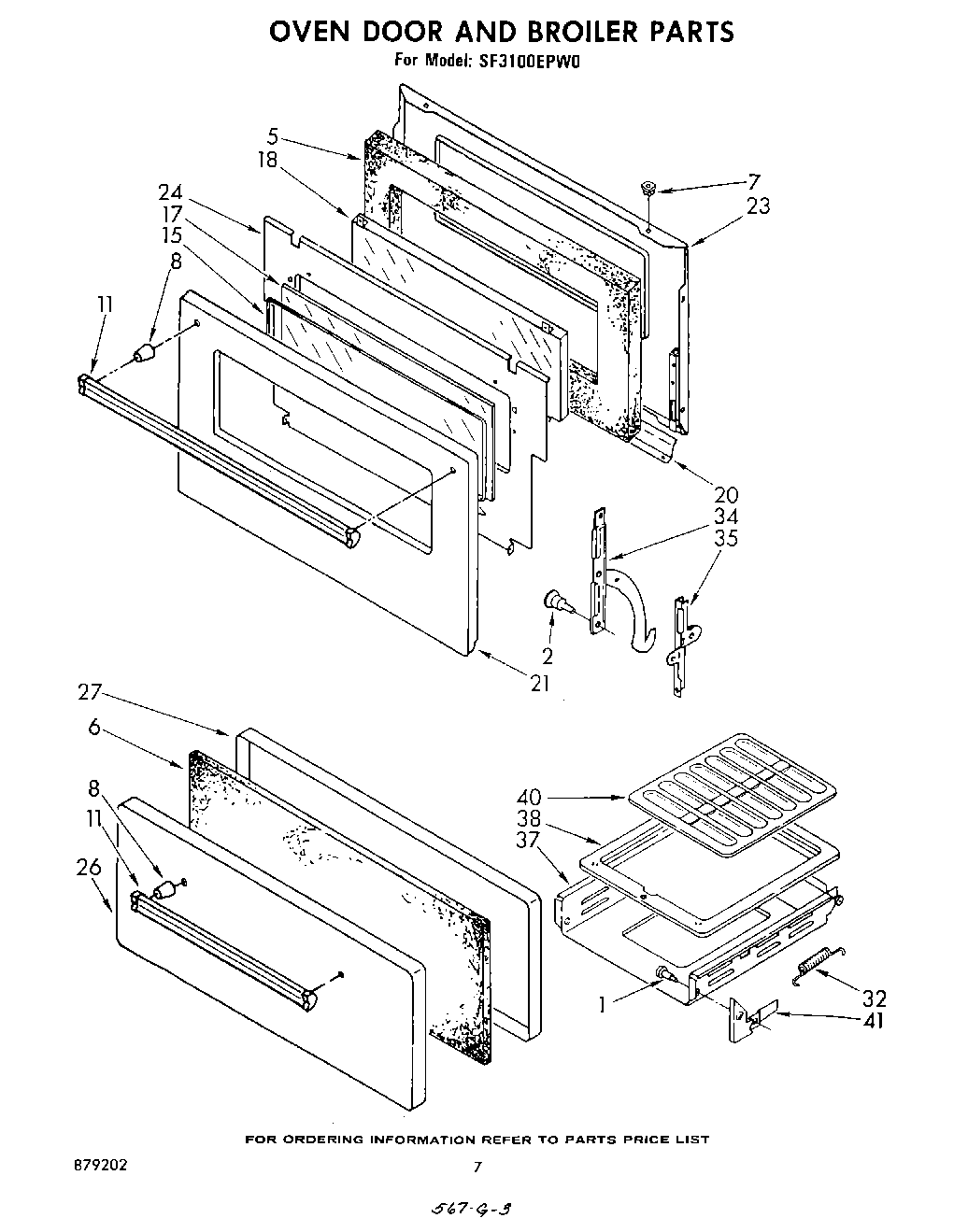

SF3100EPW0 05 – OVEN DOOR AND BROILER

SF3100EPW0 05 – OVEN DOOR AND BROILER

Written by

in

SF3100EPW0 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bolt, Shoulder 10-24 x 7/16
2Bolt, Shoulder 10-24 x 7/16 (2)
5WPW10208653 Whirlpool Insulation
6Insulation, Broiler Door
798460 Whirlpool Nut
8Spacer, Oven Door Handle (2)
11Handle, Oven Door
15Bezel, Oven Door
17Glass, Oven Door (Outside)
18Glass, Oven Door
20Strip, Door Seal
21Panel, Oven Door (Almond)
21Panel, Oven Door (White)
21Panel, Oven Door (Platinum)
21panel, oven door (toast)
23Lining, Oven Door
24Baffle, Door
26Panel, Broiler Door (Platinum)
26Panel, Broiler Door (Toast)
26Panel, Broiler Door (White)
26Panel, Broiler Door (Black)
26Panel, Broiler Door (Almond)
27Lining, Broiler Door
32Spring, Broiler Door (2)
34Hinge, Oven Door (2)
35Support, Oven Door (Right Side)
35Support, Oven Door (Left Side)
37Drawer, Broiler
38Pan, Broiler
40Tray, Broiler Pan
41Hinge, Broiler Door (Right Side)
41Hinge, Broiler Door (Left Side)
