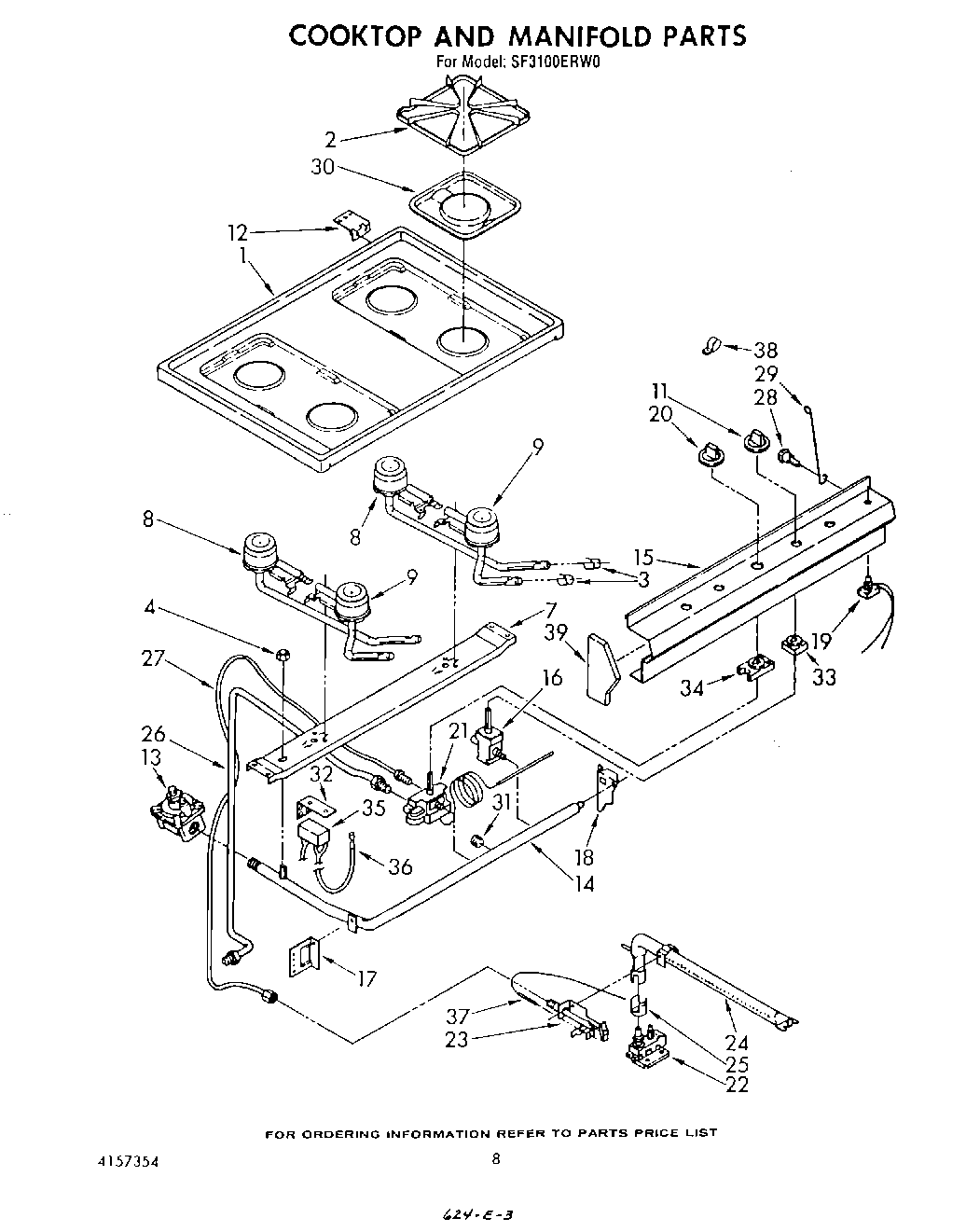

SF3100ERW0 06 – COOK TOP AND MANIFOLD , LITERATURE

SF3100ERW0 06 – COOK TOP AND MANIFOLD , LITERATURE

Written by

in

SF3100ERW0 06 – COOK TOP AND MANIFOLD , LITERATURE

Products

PositionProduct
Guide
WPL LIT786735
WPL LIT4157354
Guide, Cooking
1Cooktop (Toast)
1Cooktop (Platinum)
1Cooktop (White)
1Cooktop (Almond)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
7Support, Burner
8Burner, Rear (2)
9Burner, Front (2)
9Screw, 10-12 X 3/8 (2)
11WP4179282 Whirlpool Knob
12SCREW
12Hinge, Maintop (2)
12Speed Clip (4)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat
22WP3387230 Whirlpool Screw
22Valve, Safety
23Pilot
23Screw, 10-24 X 1/4 (1)
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30WP786333 Whirlpool Drip Bowl
31W10295523 Whirlpool Plug
32Plate, Spark Module
33WP4157180 Whirlpool Surface Burner Ignition Switch
34WP878009 Whirlpool Igniter Switch
35Module, Spark
36Ignitor (L.H.)
36Ignitor (R.H.)
37Ignitor, Oven
38Strain Relief
39Endcap (L.H.)
39Endcap (R.H.)
39FOIL, ALUMINUM OVEN (18“ X 25 )
39WPW10208653 Whirlpool Insulation
