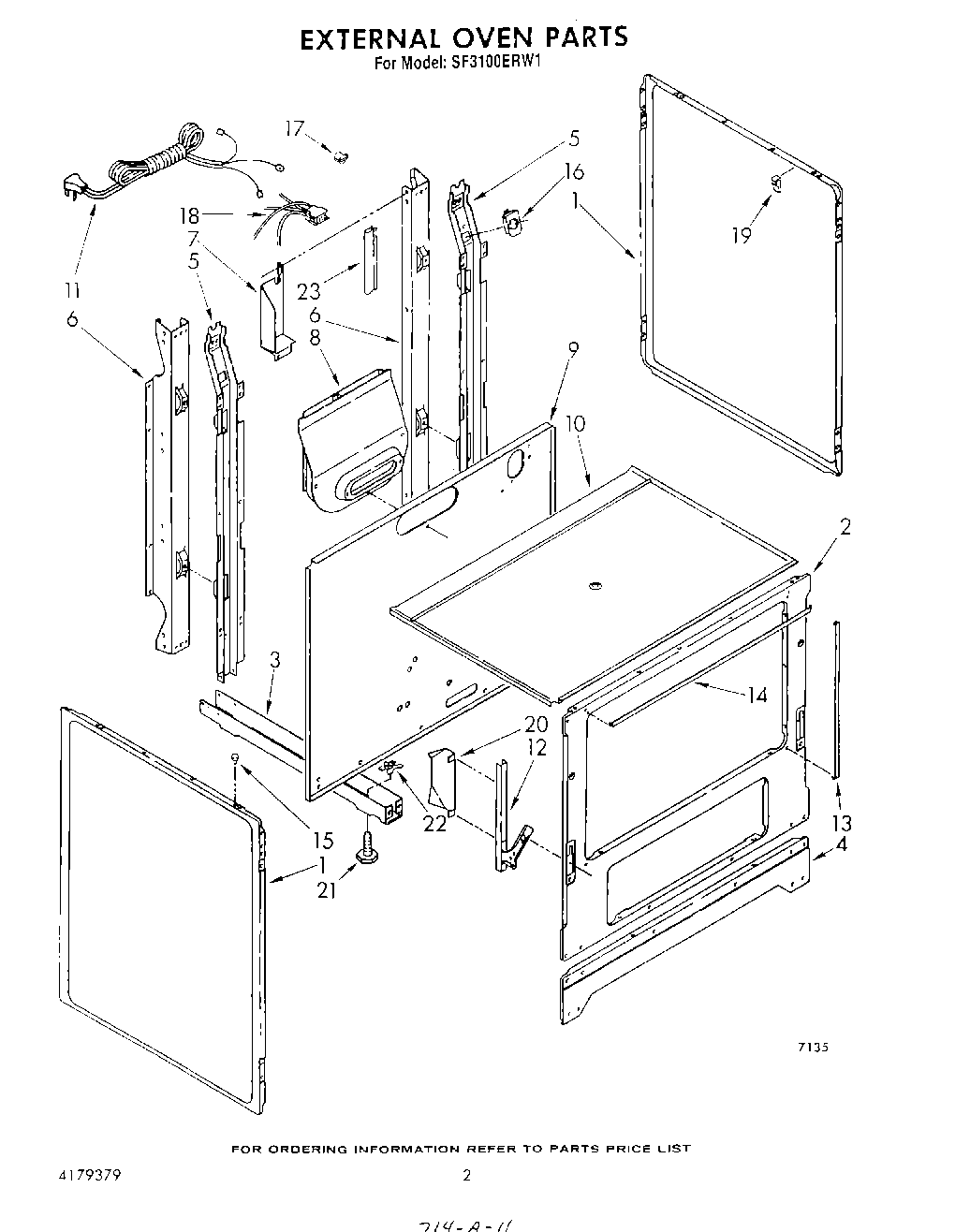

SF3100ERW1 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
7	Cover, Wire
7	Screw, 10-12 X 3/8 (2)
8	SCREW
8	Flue, Box
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
11	WP9757891 Whirlpool Power Cord
12	Screw, 10-24 X 3/8 (2)
12	Hinge, Door (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
16	Bracket, Receptable
17	Strain Relief
18	Block, Disconnect
19	Clip, Wire
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
