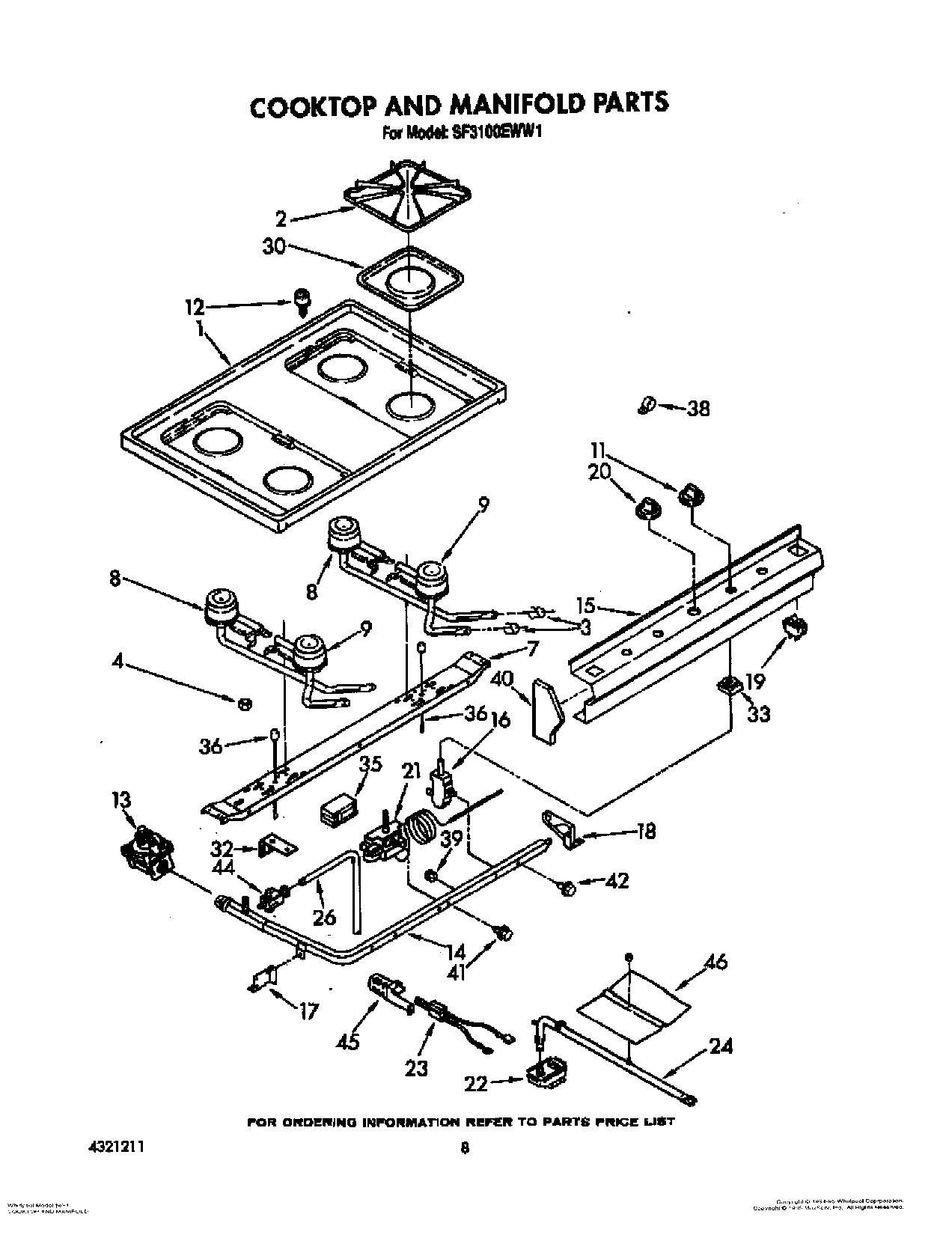

SF3100EWW1 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Instuctions, Installation
	Guide, Cooking
	Repair Parts List
	Use & Care Guide
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
12	Screw, 10-12 X 1/2 (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
23	Screw, 10-12 X 3/8 (2)
23	Pilot
24	Burner, Oven
26	Burner, Oven
30	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
35	Module, Spark
36	Ignitor (R.H.)
36	Ignitor (L.H.)
38	Strain Relief
39	W10295523 Whirlpool Plug
40	Endcap (R.H.)
40	Endcap (L.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
44	Valve, Shut Off
45	Bracket, Ignitor
46	Spreader, Flame
46	Support, Rear (2)
