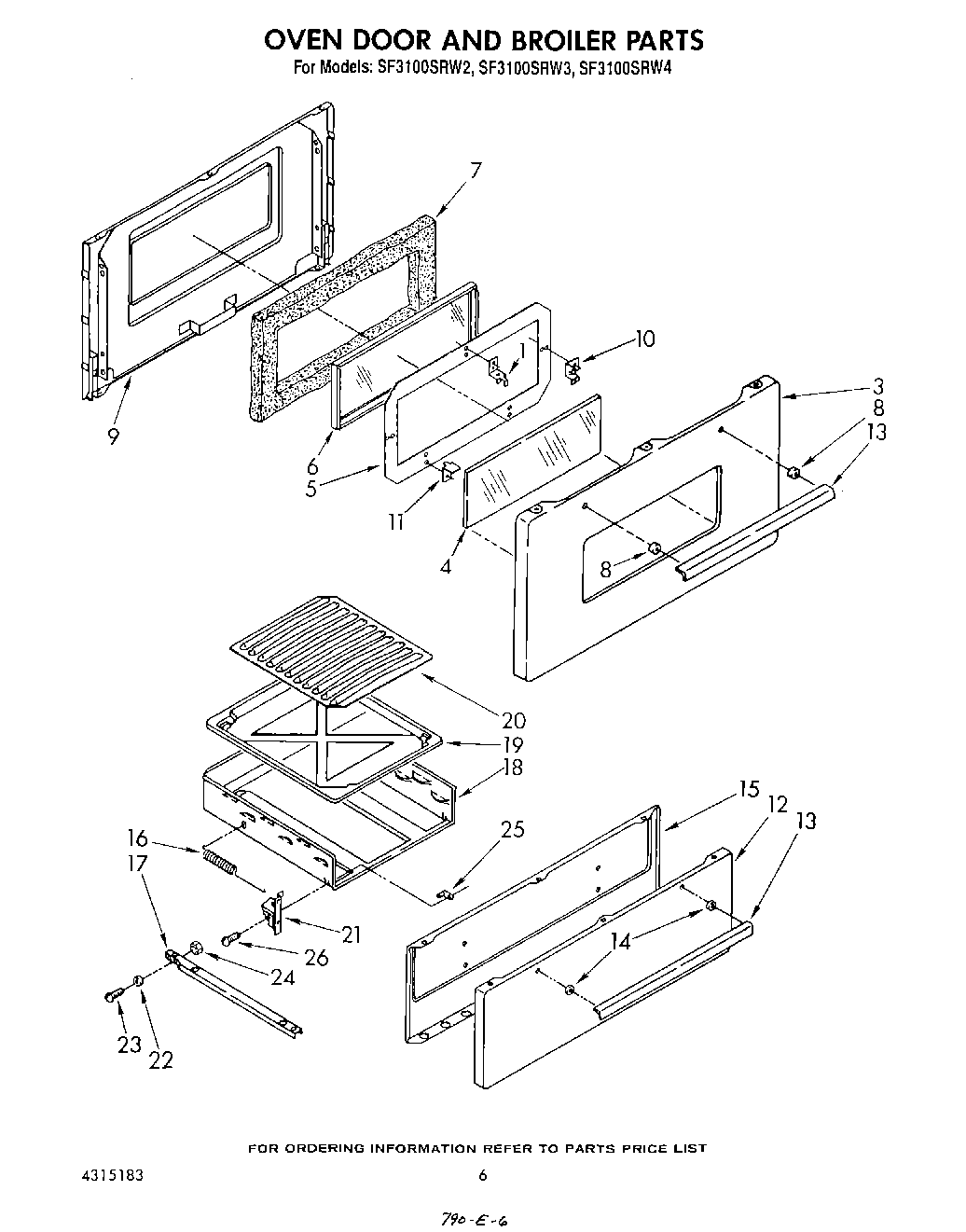

SF3100SRW2 05 – OVEN DOOR AND BROILER

SF3100SRW2 05 – OVEN DOOR AND BROILER

Written by

in

SF3100SRW2 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Clip, Top
3Panel, Door (Almond)
3Panel, Door (White)
4Glass
5SCREW
5Baffle
6Window
7Insulation
9Liner, Door
10Clip, Side (2)
11Clip, Bottom (2)
12Panel, Broiler (Almond)
12Panel, Broiler (White)
12Panel, Broiler (Almond)
12Panel, Broiler (White)
13Screw, 10-12 X 5/8 (2)
13Washer (2)
13Handle
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
