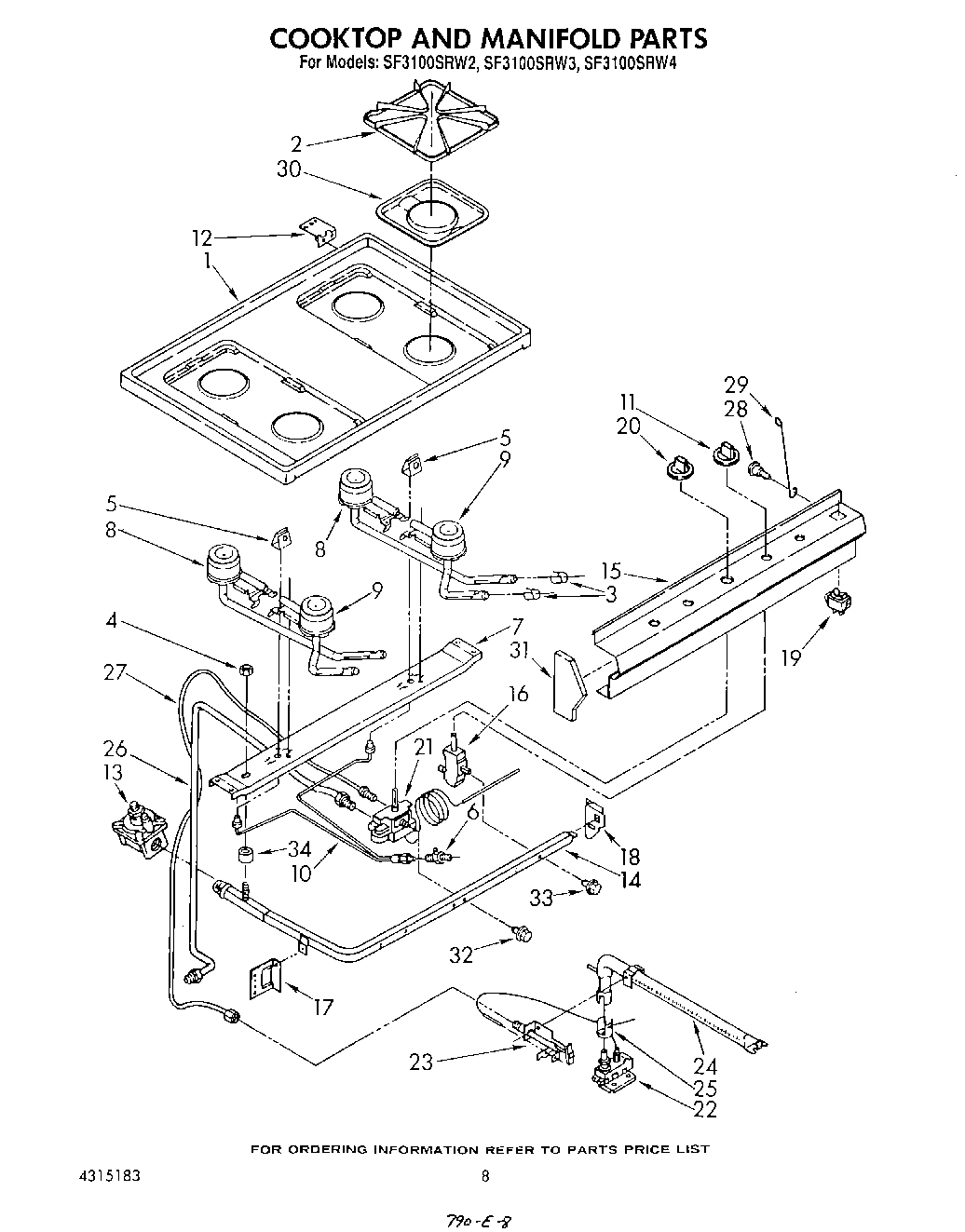

SF3100SRW4 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT4315183
Guide
Guide, Cooking
WPL LIT786735
1Cooktop (Almond)
1Cooktop (White)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Burner, Front (2)
9Screw, 10-12 X 3/8 (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12Hinge, Maintop (2)
12Speed Clip (4)
12SCREW
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4) (Includes Ill. No. 32)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat (Includes Ill. No. 31)
22Valve, Safety
22WP3387230 Whirlpool Screw
23Pilot
23Screw, 10-24 X 1/4 (1)
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30WP786333 Whirlpool Drip Bowl
31Endcap (R.H.)
31Endcap (L.H.)
32Bolt, Thermostat Mounting (2)
33Bolt, Valve Mounting
34WPW10208653 Whirlpool Insulation
34FOIL, ALUMINUM OVEN (18“ X 25 )
34Spacer, Manifold
