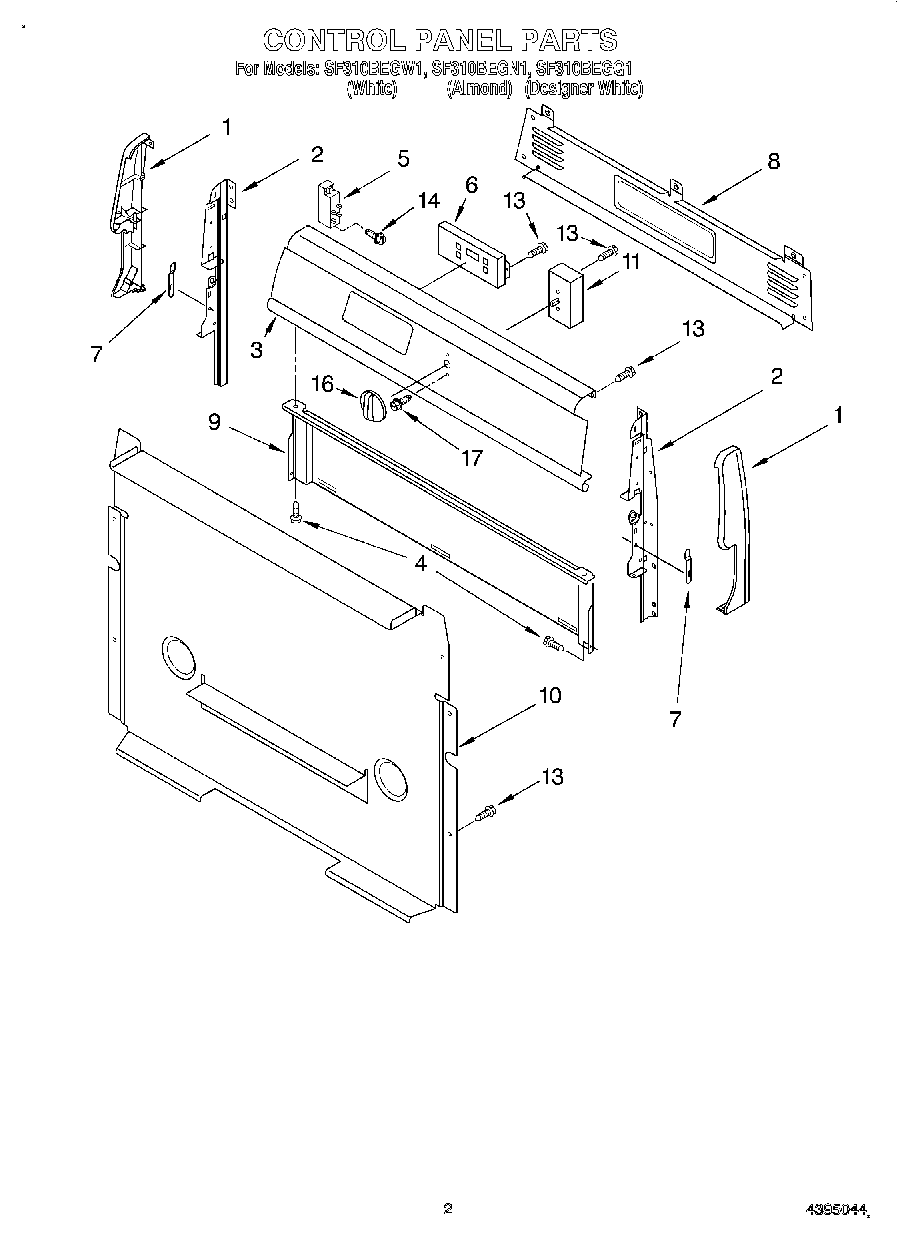

SF310BEGN1 02 – CONTROL PANELadmin2025-04-26T11:22:18+00:00SF310BEGN1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Endcap (Black Left Hand) |
| 1 | Endcap, Right Hand (Black) |
| 1 | Endcap (White Right Hand) |
| 1 | Endcap (White Left Hand) |
| 2 | Support, Endcap (Left Hand) |
| 2 | Support, Endcap (Right Hand) |
| 3 | Panel, Backguard (Black) |
| 3 | Panel, Backguard (White) |
| 4 | Screw |
| 5 | WP8053421 Whirlpool Oven Spark Module |
| 6 | Control, Range (Black) |
| 6 | Control, Range (White) |
| 7 | 3196200 Whirlpool Clip |
| 8 | Cover, Upper |
| 9 | Shield, Heat |
| 10 | Cover, Lower |
| 11 | Thermostat |
| 13 | SCREW |
| 14 | WPY706189 Whirlpool Stove Screw |
| 16 | Knob, Thermostat |
| 16 | Knob, Thermostat |
| 17 | WP3400882 Whirlpool Screw |
