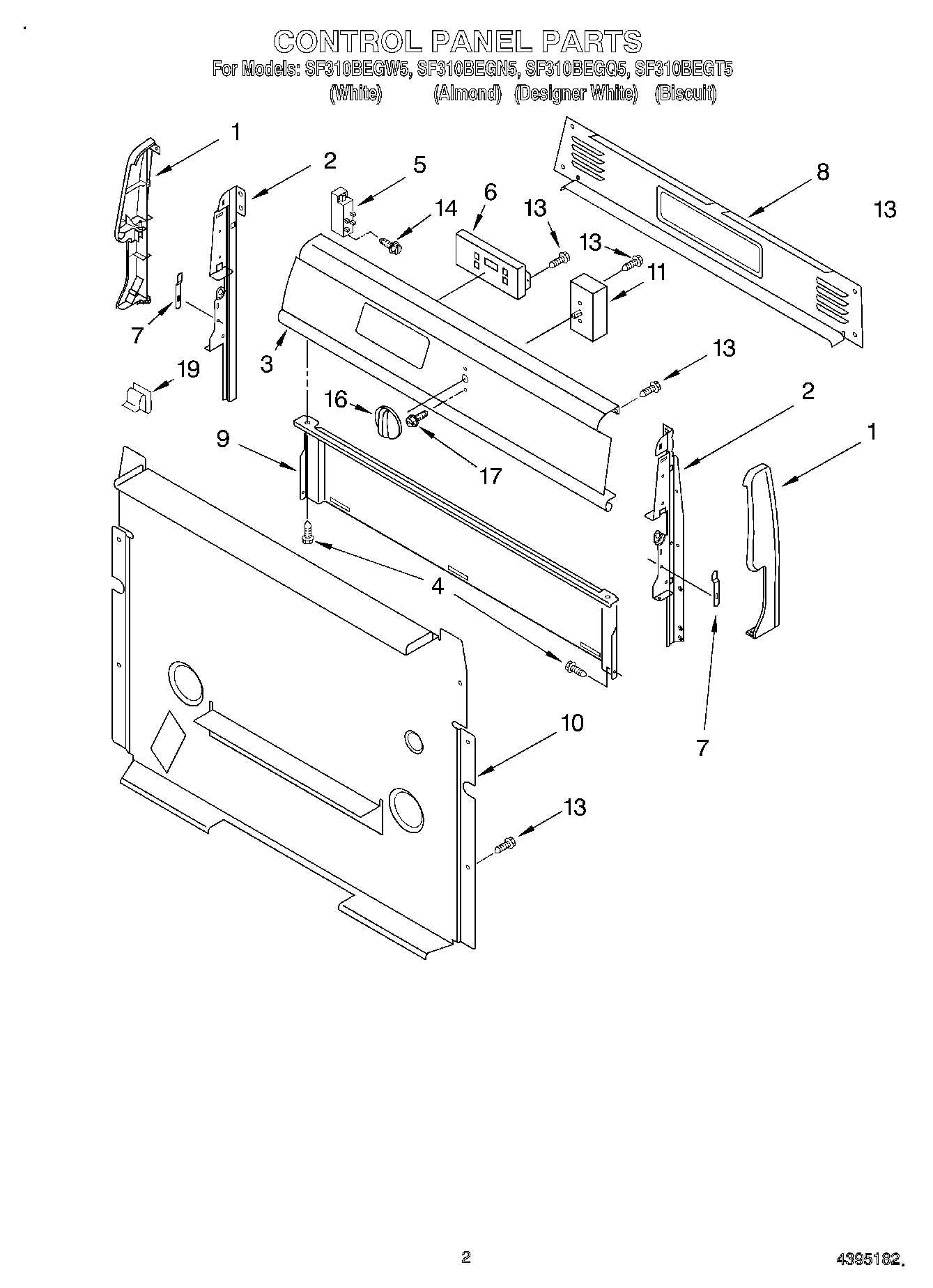

SF310BEGN5 02 – CONTROL PANEL

SF310BEGN5 02 – CONTROL PANEL

Written by

in

SF310BEGN5 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4Screw
5WP8053421 Whirlpool Oven Spark Module
6Control, Range (Biscuit)
6Control, Range (Black)
6Control, Range (White)
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Thermostat
13SCREW
14WPY706189 Whirlpool Stove Screw
16Knob, Thermostat (Biscuit)
16Knob, Thermostat
16Knob, Thermostat
17WP3400882 Whirlpool Screw
19WP8273564 Whirlpool Clip
