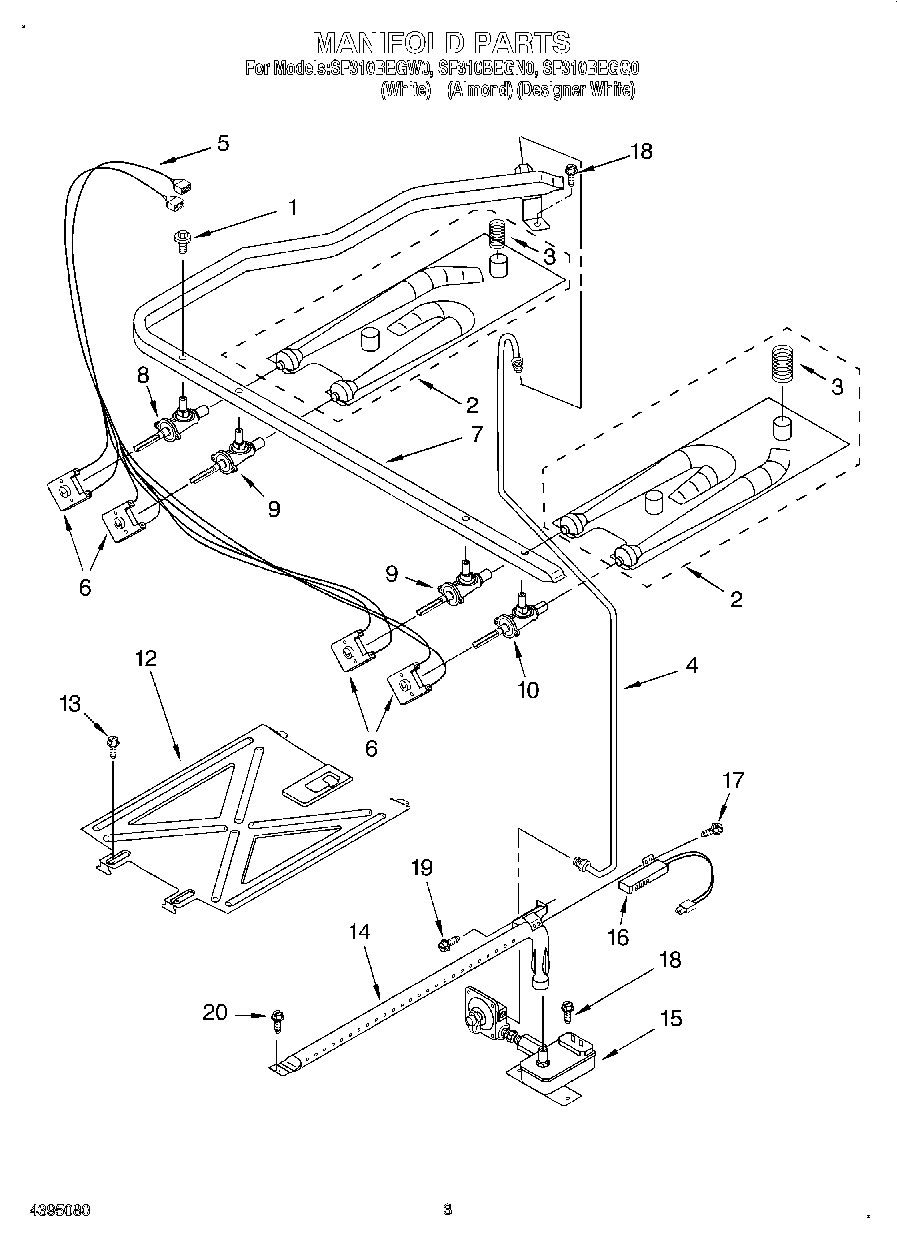

SF310BEGQ0 03 – MANIFOLD

SF310BEGQ0 03 – MANIFOLD

Written by

in

SF310BEGQ0 03 – MANIFOLD

Products

PositionProduct
1WP3186217 Whirlpool Screw
2Plate, Venturi (Includes No. 3) (Left Hand)
2Plate, Venturi (Includes No. 3) (Right Hand)
3Spring, Seal (4)
4Tubing (Manifold to Regulator)
5Harness, Igniter
6Switch, Spark
7Pipe, Manifold
8Valve, 7,500 BTU (LR)
9Valve, 9500 BTU (LF)
10Valve, 6,500 BTU (RR)
12Spreader, Flame (Oven)
14Burner, Bake
15Valve, Gas Combo
16WP3186491 Whirlpool Oven Igniter
17W11684507 Whirlpool Screw
18WP3196557 Whirlpool Screw
19SCREW
203196265 Whirlpool Oven Screw
20WPL 3196473
20Spuds, Natural Gas (Kit of 4)
