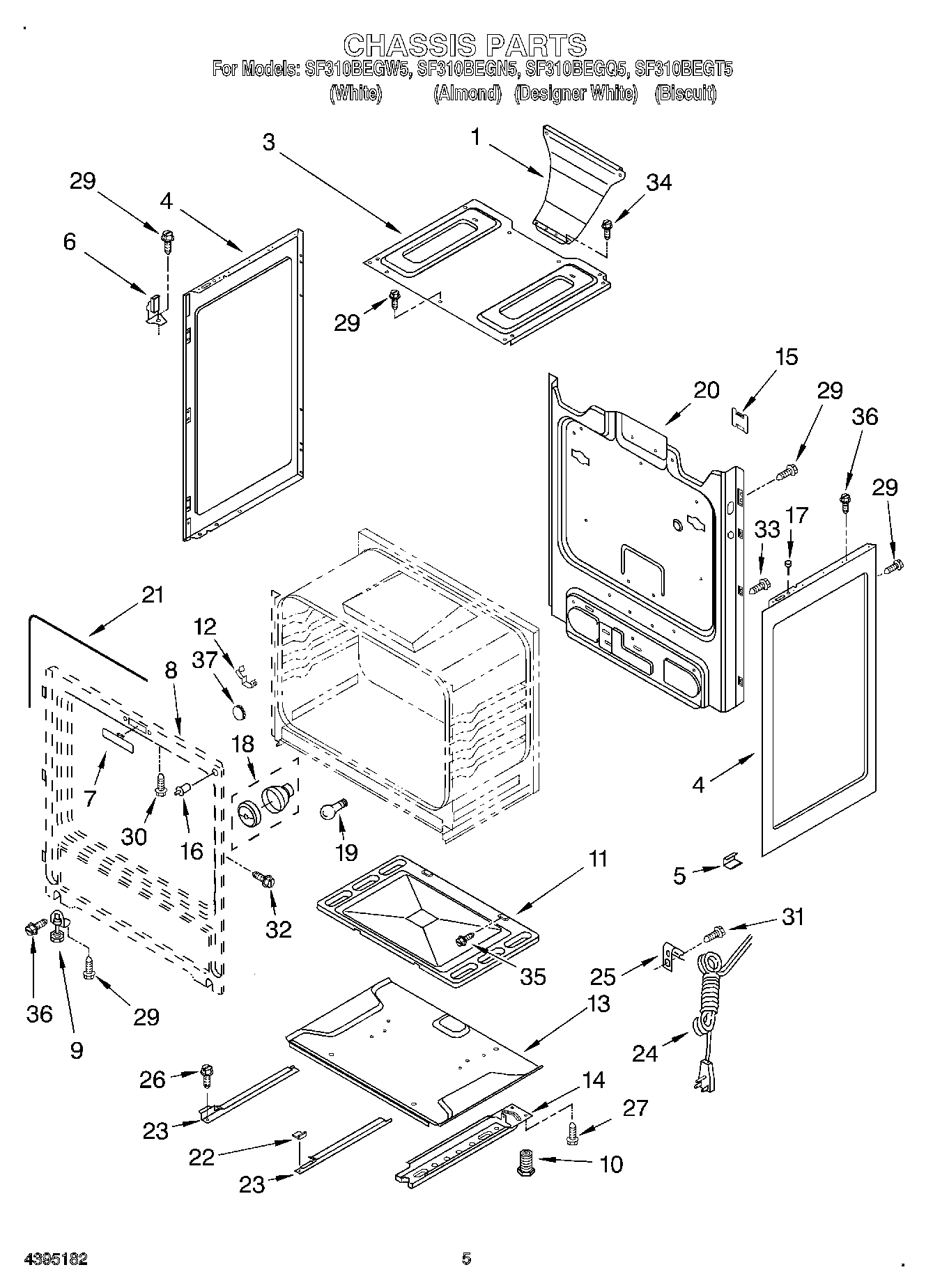

SF310BEGQ5 04 – CHASSIS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
3	W11379351 Whirlpool Burner Box
4	W10162246 Whirlpool Side Panel
4	Panel, Side (2) (Almond-Textured)
4	WPW10575396 Whirlpool Side Panel
5	Clip, Panel (6)
6	Brkt, Manifold Mtg (Left Hand)
6	Brkt, Manifold Mtg (Right Hand)
7	Plug, Frame
8	Frame, Front (Not Serviceable)
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	98005642 Whirlpool Clip
13	Baffle, Base
14	WPW10306546 Whirlpool Base Rail
15	Button, Plug (Oval (1))
16	Switch, Door
17	238614 Whirlpool Bumper Hinge
18	W11594027 Whirlpool Range Oven Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Guide, Front (2)
23	Plate, Guide (Right Hand)
23	Plate, Guide (Left Hand)
24	WP9757891 Whirlpool Power Cord
25	549193 Whirlpool Refrigerator Power Clamp
26	WP3196175 Whirlpool Screw
30	SCREW
31	W11244557 Whirlpool Screw
32	WP7101P246-60 Whirlpool Screw
33	WP3196183 Whirlpool Screw
34	WP3196557 Whirlpool Screw
35	Screw
36	Screw
37	W11688737 Whirlpool Insulation
37	TIE,WIRE
37	Button, Plug (25/32“ (2))
37	WPW10208653 Whirlpool Insulation
