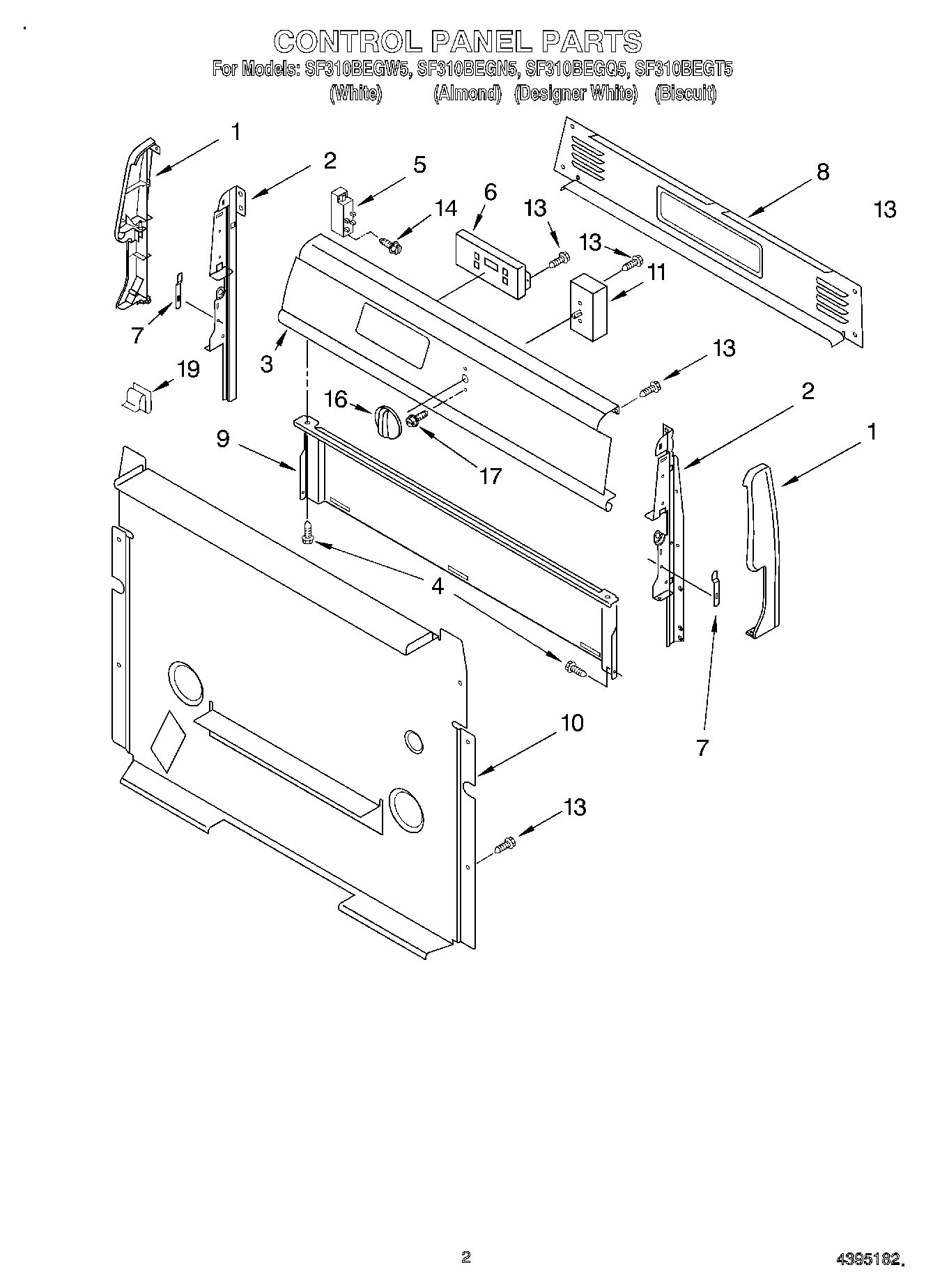

SF310BEGT5 02 – CONTROL PANEL
Written by
in
SF310BEGT5 02 – CONTROL PANEL
Products
Position
Product
1
Endcap (Black Left Hand)
1
Endcap, Right Hand (Black)
1
Endcap (Biscuit Left Hand)
1
Endcap (Biscuit Right Hand)
1
Endcap (White Left Hand)
1
Endcap (White Right Hand)
2
Support, Endcap (Right Hand)
2
Support, Endcap (Left Hand)
3
Panel, Backguard (Black)
3
Panel, Backguard (White)
3
Panel, Backguard (Biscuit)
4
Screw
5
WP8053421 Whirlpool Oven Spark Module
6
Control, Range (Biscuit)
6
Control, Range (Black)
6
Control, Range (White)
7
3196200 Whirlpool Clip
8
Cover, Upper
9
Shield, Heat
10
Cover, Lower
11
Thermostat
13
SCREW
14
WPY706189 Whirlpool Stove Screw
16
Knob, Thermostat (Biscuit)
16
Knob, Thermostat
16
Knob, Thermostat
17
WP3400882 Whirlpool Screw
19
WP8273564 Whirlpool Clip
←
