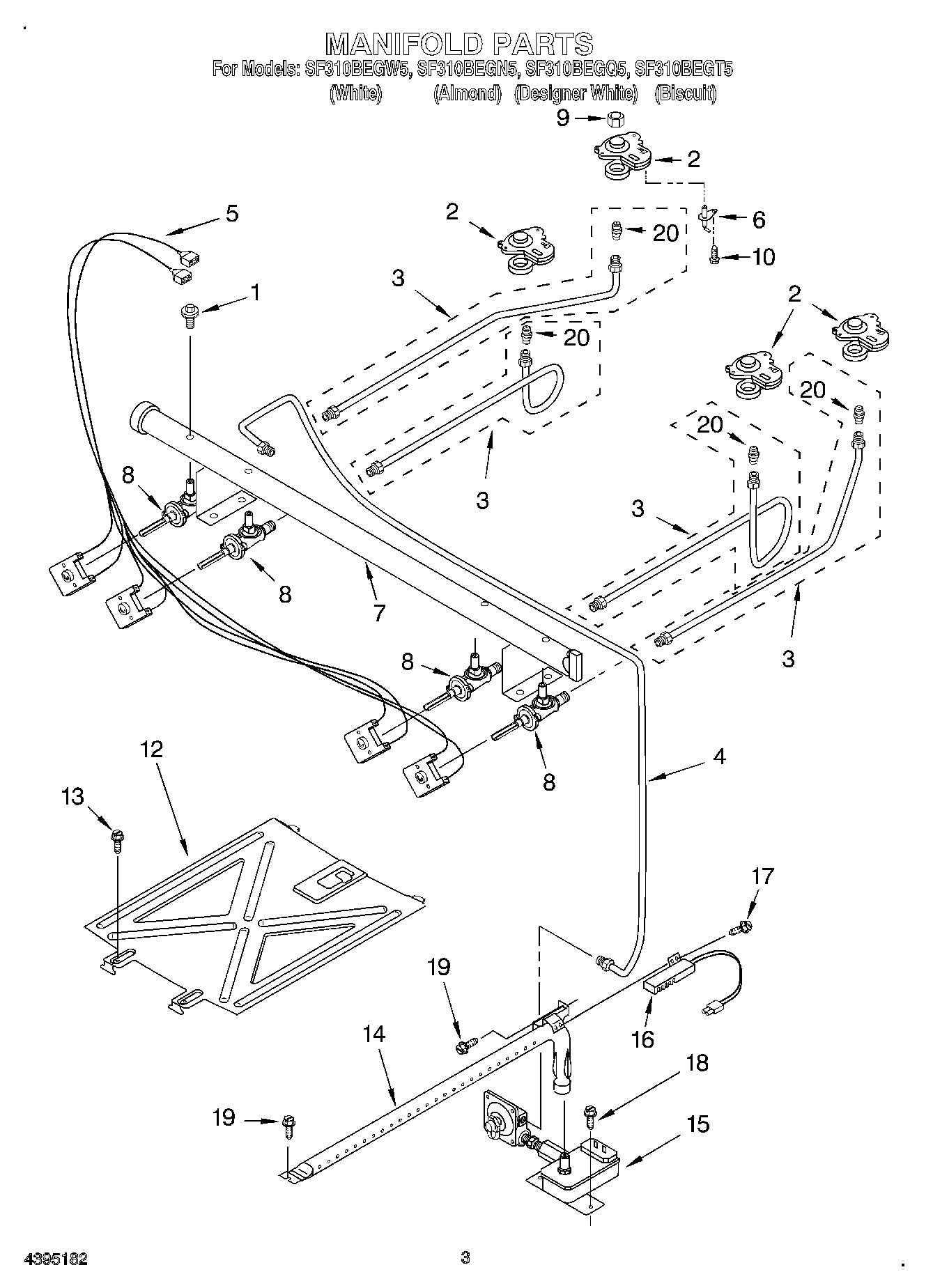

| 1 | WP8273096 Whirlpool Screw |
| 2 | WP8273700 Whirlpool Base Burner |
| 2 | Burner Base (Small (1)) |
| 3 | Tubing, Burner W/Orifice (Right Rear) |
| 3 | Tubing, Burner W/Orifice (Left Front) |
| 3 | Tubing, Burner W/Orifice (Right Front) |
| 3 | Tubing, Burner W/Orifice (Left Rear) |
| 4 | Tubing (Manifold to Regulator) |
| 5 | Harness, Igniter (Incl. Switches) |
| 6 | WP8523793 Whirlpool Oven Surface Igniter |
| 7 | Pipe, Manifold |
| 8 | Valve |
| 9 | Nut (4) |
| 10 | WP8273062 Whirlpool Screw |
| 12 | Spreader, Flame (Oven) |
| 14 | Burner, Bake |
| 15 | Valve, Gas Combo |
| 16 | WP3186491 Whirlpool Oven Igniter |
| 17 | W11684507 Whirlpool Screw |
| 18 | WP3196557 Whirlpool Screw |
| 19 | SCREW |
| 20 | Spuds, LP Gas (Kit of 4) |
| 20 | WP8273067 Whirlpool Orifice |
| 20 | WP8273066 Whirlpool Orifice |
| 20 | WP8273065 Whirlpool Orifice |
